Item 1 of 1
| Hersteller: | VW |
|---|---|
| Hersteller-Nr.: | 016R0700001 |

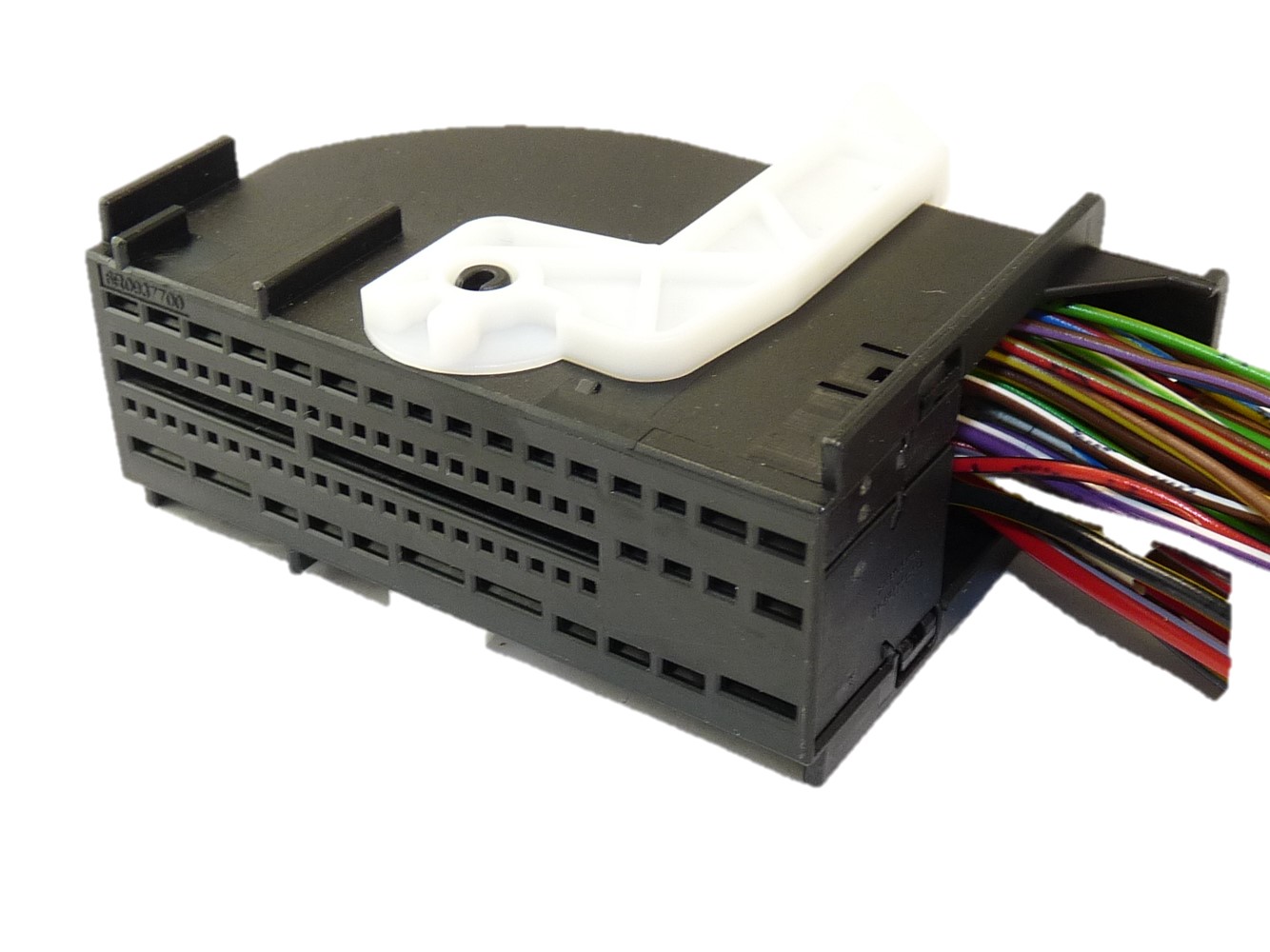

| Beschreibung: | MQS 0.63/MCP 1.5/2.8/4.8 FEMALE 70 WAY CONNECTOR |
| Poligkeit: | 70 |
| Gedichtet: | ja |
| Farbe: | BLACK |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 42-2-09 |
|---|
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
G215 | 5 × Tyco/AMP MCP 4.8/6.3 female terminal | 6.30 x 0.80 |
G215 | 15 × Tyco/AMP MCP 2.8 female terminal | 2.80 x 0.80 |
G305 | 8 × Tyco/AMP MCP 1.5 female terminal | 1.60 x 0.60 |
F595 | 42 × Tyco/AMP Micro Power Quadlock 0.63 (MQS 0.63) female terminal | 0.63 x 0.63 |
F425 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 5-928999-1 | TE CONNECTIVITY | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE UNSEALED TERMINAL | 0.20-0.35 | TIN SILVER (SNAG) |
| 5-963715-1 | TE CONNECTIVITY | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE UNSEALED TERMINAL | 0.50-0.75 | VERZINNT |
| 1241388-1 | TE CONNECTIVITY | MCP 2.8 FEMALE TERMINAL | 0.50-1.00 | VERZINNT |
| 1241390-1 | TE CONNECTIVITY | MCP 2.8 FEMALE TERMINAL | 1.00-2.50 | VERZINNT |
| 1241404-1 | TE CONNECTIVITY | MCP 4.8/6.3 FEMALE TERMINAL | 1.50-2.50 | VERZINNT |
| 928999-1 | TE CONNECTIVITY | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL | 0.20-0.35 | VERZINNT |
| 963715-1 | TE CONNECTIVITY | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL | 0.50-0.75 | VERZINNT |
| 1241374-1 | TE CONNECTIVITY | MCP 1.5 FEMALE UNSEALED TERMINAL | 0.50-1.00 | VERZINNT |
| 1534334-1 | TE CONNECTIVITY | MCP 1.5 FEMALE UNSEALED TERMINAL | 1.00-1.50 | VERZINNT |
