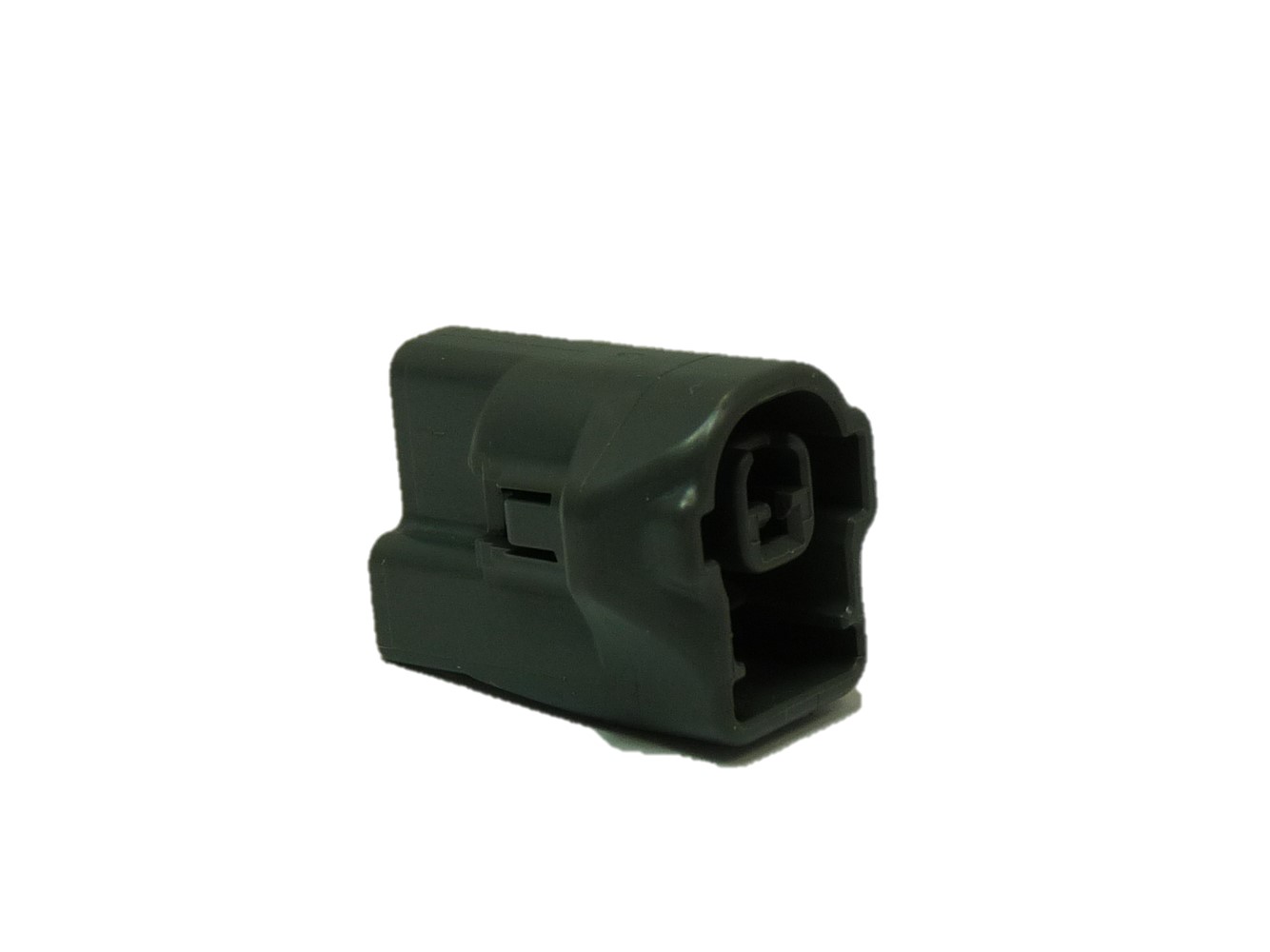

2.3(090) SERIES II FEMALE 1 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/49-2-09.jpg
Item 1 of 1
Hersteller:YAZAKI
Hersteller-Nr.:0558545
Beschreibung:2.3(090) SERIES II FEMALE 1 WAY SEALED CONNECTOR
Poligkeit:1
Gedichtet:nein
Farbe:DARK GREY
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 49-2-09
Serie: 2.3 (090) SERIES II
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F450

1 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed2.30 x 0.64

F460

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
7116-4025YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.30-0.50VERZINNT
7116-4026YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.85-1.25VERZINNT
7116-4027YAZAKI2.3II(090II) FEMALE SEALED TERMINAL2.00VERZINNT
7116-4028-08YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
7116-4029-08YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.85-1.25VERGOLDET
7116-5044-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
82998-12590TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIREVERGOLDET
90980-09152TOYOTADUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
82998-24410TOYOTATS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-24400TOYOTATS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-12800TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-12460TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE0.20-0.60VERGOLDET
82998-12440TOYOTA2.3(090) FEMALE SEALED TERMINAL WITH 160MM WIRE0.20-0.60VERZINNT
