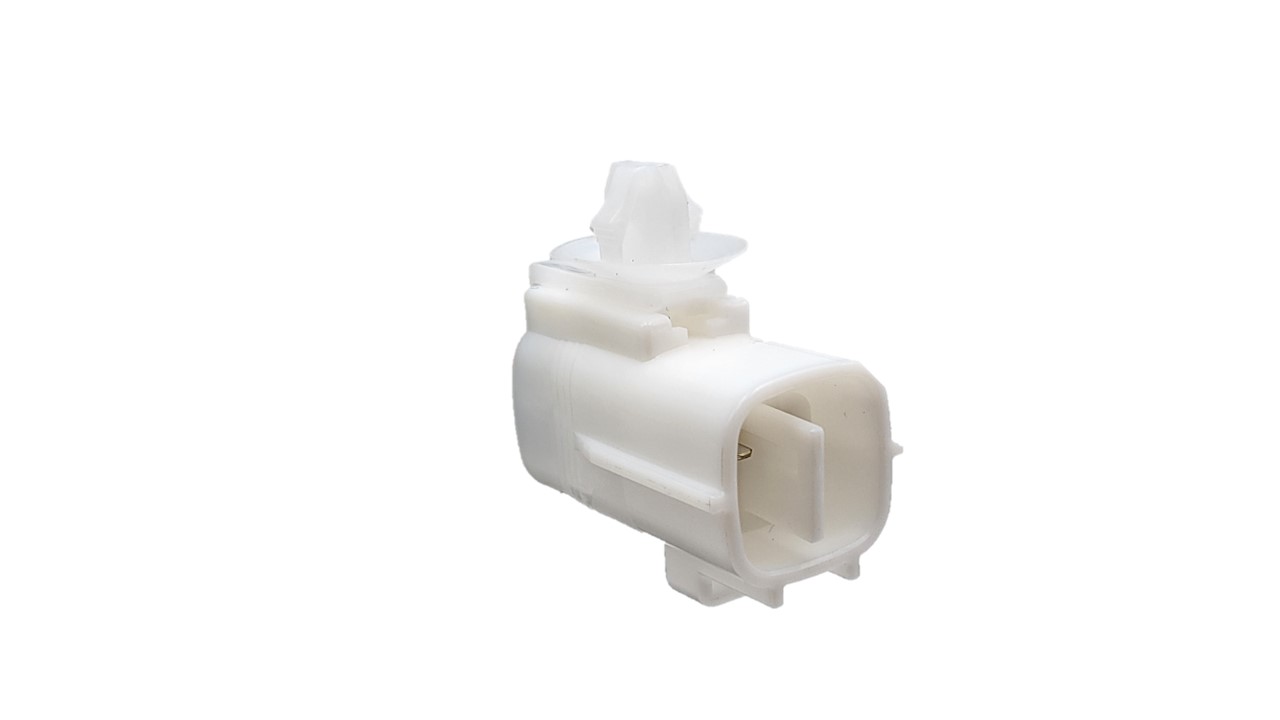

TS 2.3(090) SERIES MALE 4 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/81-2-34.jpg
Item 1 of 1
Hersteller:KROSCHU
Hersteller-Nr.:062572
Beschreibung:TS 2.3(090) SERIES MALE 4 WAY SEALED CONNECTOR
Poligkeit:4
Gedichtet:nein
Farbe:GREY
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 81-2-34
Serie: TS SEALED SERIES (090 CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F417

4 × Sumitomo TS series 2.3mm(090) male sealed terminal2.30 x 0.64

Z0004

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
7161-9787SUMITOMOHX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
7165-0395SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
8100-1008SUMITOMOTS SERIES 2.3(090) MALE SEALED TERMINAL2.00VERGOLDET
8100-1007SUMITOMOTS SERIES 2.3(090) MALE SEALED TERMINAL0.50-1.25VERGOLDET
8100-0459SUMITOMOTS SERIES 2.3(090) MALE SEALED TERMINAL2.00VERZINNT
8100-0458SUMITOMOTS SERIES 2.3(090) MALE SEALED TERMINAL0.50-1.25VERZINNT
8100-0457SUMITOMOTS SERIES 2.3(090) MALE SEALED TERMINAL0.30-0.50VERZINNT
7165-0842SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.35-0.50
7165-0351SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
7165-0349SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7165-0344SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
7165-0343SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
7165-0076SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL
7160-9465SUMITOMODUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
7160-8234SUMITOMOTS/SL/MT/HM 2.3(090) SERIES SINGLE WIRE SEAL0.50-1.25
8100-1340SUMITOMOTS SERIES 2.3(090) MALE SEALED TERMINAL0.30-0.50VERGOLDET
7165-0342SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7114-4025YAZAKI2.3II(090II) MALE SEALED TERMINAL0.30-0.50VERZINNT
82999-12030TOYOTAWIRE SEAL1.25
82999-12020TOYOTAWIRE SEAL1.25
82998-12450TOYOTA2.3(090) MALE SEALED TERMINAL WITH WIREVERGOLDET
82998-12430TOYOTA2.3(090) MALE SEALED TERMINAL WITH 160MM WIREVERZINNT
90980-09152TOYOTADUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
