Item 1 of 1
| Hersteller: | SUMITOMO |
|---|---|
| Hersteller-Nr.: | 12362 |

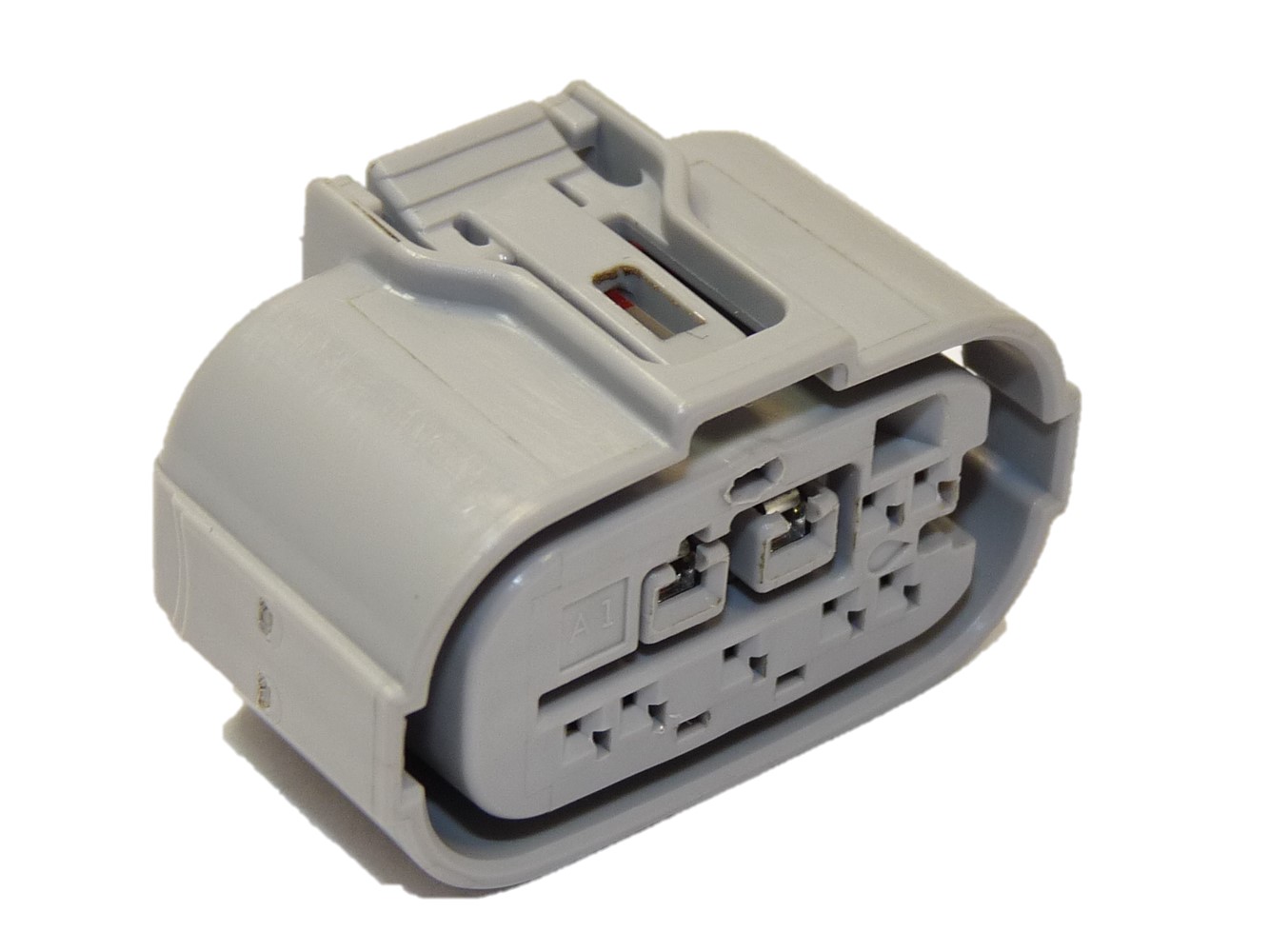

| Beschreibung: | 0.64/2.3MM(025/090) TS SERIES FEMALE 9 WAY SEALED CONNECTOR |
| Poligkeit: | 9 |
| Gedichtet: | nein |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 23-2-17 |
|---|
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F595 | 2 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed | 2.30 x 0.64 |
F920 | 7 × Sumitomo TS Series 0.64mm(025) female sealed terminal | 0.64 x 0.64 |
F460 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 8100-0460 | SUMITOMO | TS 2.3(090) SERIES FEMALE SEALED TERMINAL | 0.30-0.50 | VERZINNT |
| 8240-4892 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 0.50-1.25 | VERZINNT |
| 8240-0287 | SUMITOMO | TS 0.64(025) SERIES FEMALE SEALED TERMINAL | 0.50 | VERZINNT |
| 7196-1103-02 | YAZAKI | TS 0.64(025) SERIES FEMALE SEALED TERMINAL | VERZINNT | |
| 7196-1104-02 | YAZAKI | TS 0.64(025) SERIES FEMALE SEALED TERMINAL | VERZINNT | |
| 7116-5044-02 | YAZAKI | 2.3II(090II) FEMALE TERMINAL | VERZINNT | |
| 82998-24410 | TOYOTA | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 90980-09871 | TOYOTA | 0.64 SEALED CONNECTOR PLUGGING BLIND PLUG | ||
| 90980-09152 | TOYOTA | DUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES | ||
| 82998-74040 | TOYOTA | TS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH160MM WIRE | VERGOLDET | |
| 82998-74030 | TOYOTA | TS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH160MM WIRE | VERGOLDET | |
| 82998-12590 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-24400 | TOYOTA | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-24260 | TOYOTA | TS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-12800 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-12460 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE | 0.20-0.60 | VERGOLDET |
| 82998-12440 | TOYOTA | 2.3(090) FEMALE SEALED TERMINAL WITH 160MM WIRE | 0.20-0.60 | VERZINNT |
| 82998-24250 | TOYOTA | TS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH 500MM WIRE | VERZINNT |
