| Hersteller: | SUMITOMO |
|---|---|
| Hersteller-Nr.: | 12399 |

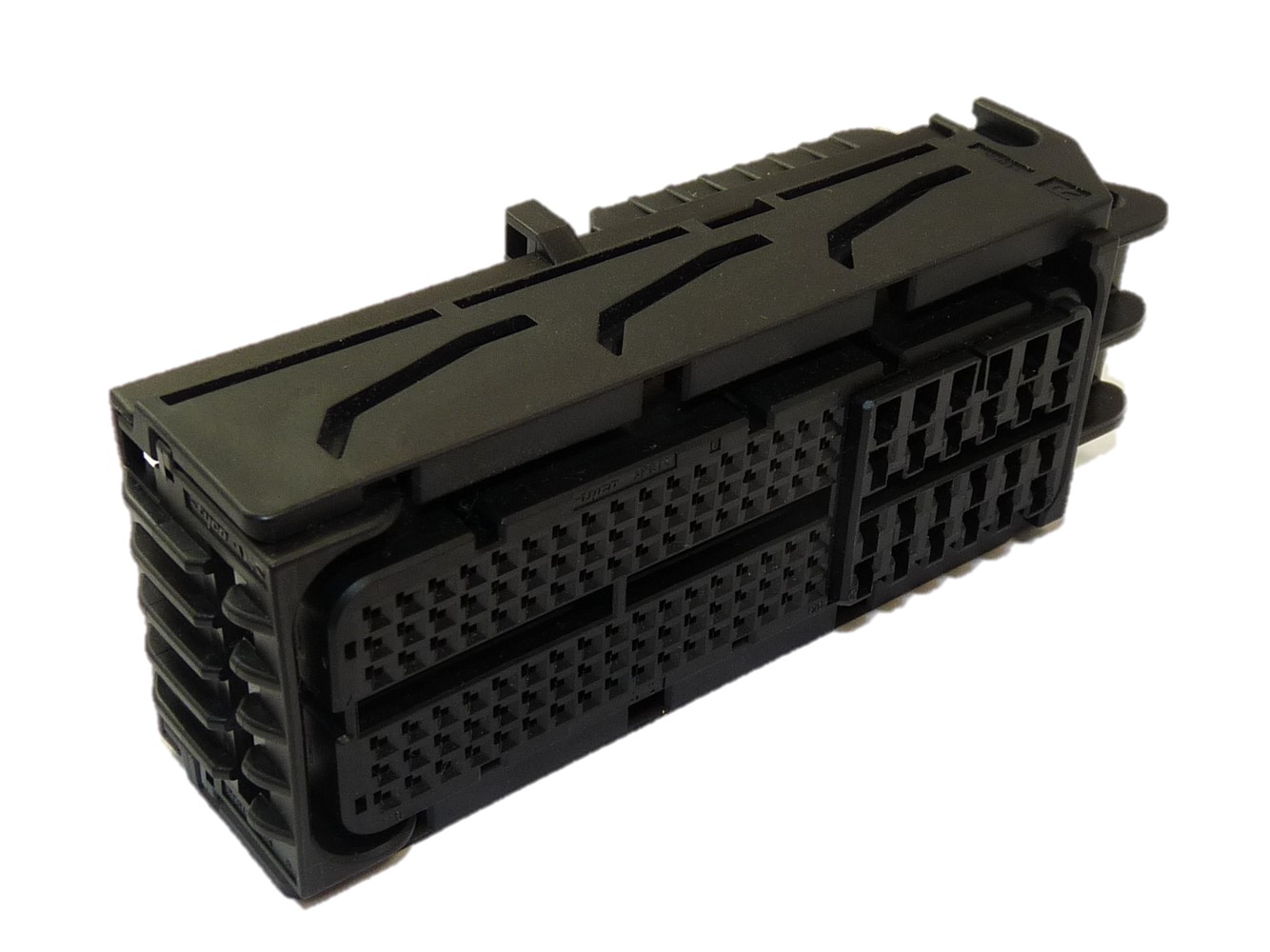

| Beschreibung: | 0.64/2.3MM(025/090) TS SERIES FEMALE 136 WAY SEALED CONNECTOR |
| Poligkeit: | 136 |
| Gedichtet: | nein |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 39-1-12 |
|---|
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F450 | 18 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed | 2.30 x 0.64 |
F920 | 71 × Sumitomo TS Series 0.64mm(025) female sealed terminal | 0.64 x 0.64 |
F460 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 82998-24250 | TOYOTA | TS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH 500MM WIRE | VERZINNT | |
| 82998-74030 | TOYOTA | TS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH160MM WIRE | VERGOLDET | |
| 90980-09871 | TOYOTA | 0.64 SEALED CONNECTOR PLUGGING BLIND PLUG | ||
| 90980-09229 | TOYOTA | 2.3 SEALED CONNECTOR PLUGGING BLIND PLUG | 1.25 | |
| 82999-12030 | TOYOTA | WIRE SEAL | 1.25 | |
| 82999-12020 | TOYOTA | WIRE SEAL | 1.25 | |
| 82998-74040 | TOYOTA | TS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH160MM WIRE | VERGOLDET | |
| 82998-24260 | TOYOTA | TS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-12440 | TOYOTA | 2.3(090) FEMALE SEALED TERMINAL WITH 160MM WIRE | 0.20-0.60 | VERZINNT |
| 82998-12790 | TOYOTA | 2.3(090) FEMALE SEALED TERMINAL WITH 500MM WIRE | VERZINNT | |
| 82998-12780 | TOYOTA | 2.3(090) FEMALE SEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-12460 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE | 0.20-0.60 | VERGOLDET |
| 82998-24420 | TOYOTA | 2.3 FEMALE TERMINAL WITH 500MM WIRE | VERZINNT |
