| Hersteller: | SUMITOMO |
|---|---|
| Hersteller-Nr.: | 13005872 |

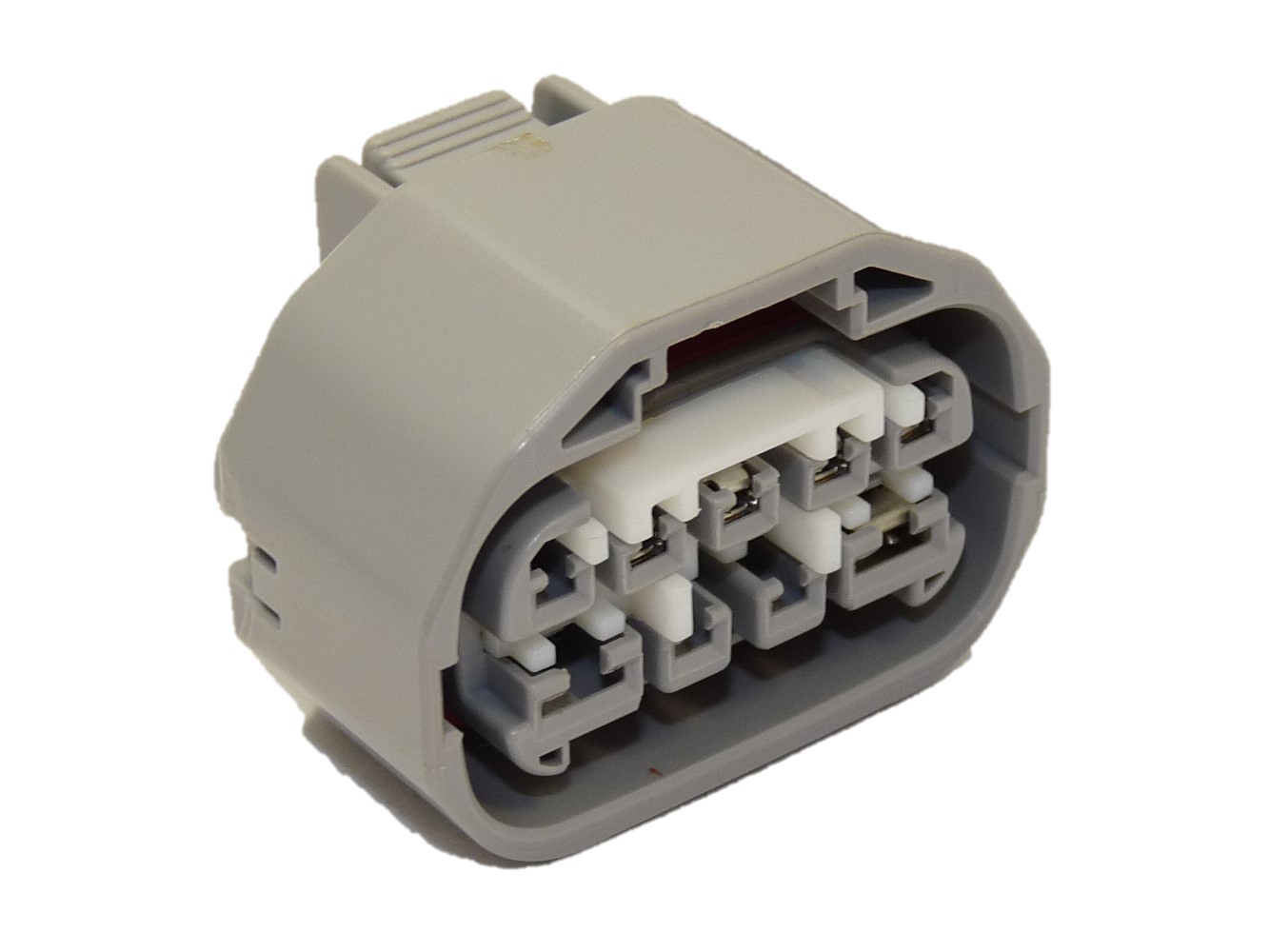

| Beschreibung: | 2.3(090)/4.8(187) FEMALE 9 WAY SEALED CONNECTOR |
| Poligkeit: | 9 |
| Gedichtet: | nein |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 23-2-22 |
|---|
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F450 | 2 × Sumitomo TS/HX/DL 4.8mm(187) female terminal | 4.80 x 0.80 |
F450 | 7 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed | 2.30 x 0.64 |
F425 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 8100-0461 | SUMITOMO | TS 2.3(090) SERIES FEMALE SEALED TERMINAL | 0.50-1.25 | VERZINNT |
| 8100-0466 | SUMITOMO | TS SERIES 4.8(187) FEMALE SEALED TERMINAL | 0.30-0.50 | VERZINNT |
| 8100-0460 | SUMITOMO | TS 2.3(090) SERIES FEMALE SEALED TERMINAL | 0.30-0.50 | VERZINNT |
| 8240-4882 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 0.30-0.50 | VERZINNT |
| 82998-12440 | TOYOTA | 2.3(090) FEMALE SEALED TERMINAL WITH 160MM WIRE | 0.20-0.60 | VERZINNT |
| 82998-12480 | TOYOTA | 4.8(187) FEMALE SEALED TERMINAL WITH 160MM WIRE | 0.20-0.60 | VERZINNT |
| 82998-12590 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIRE | VERGOLDET |
