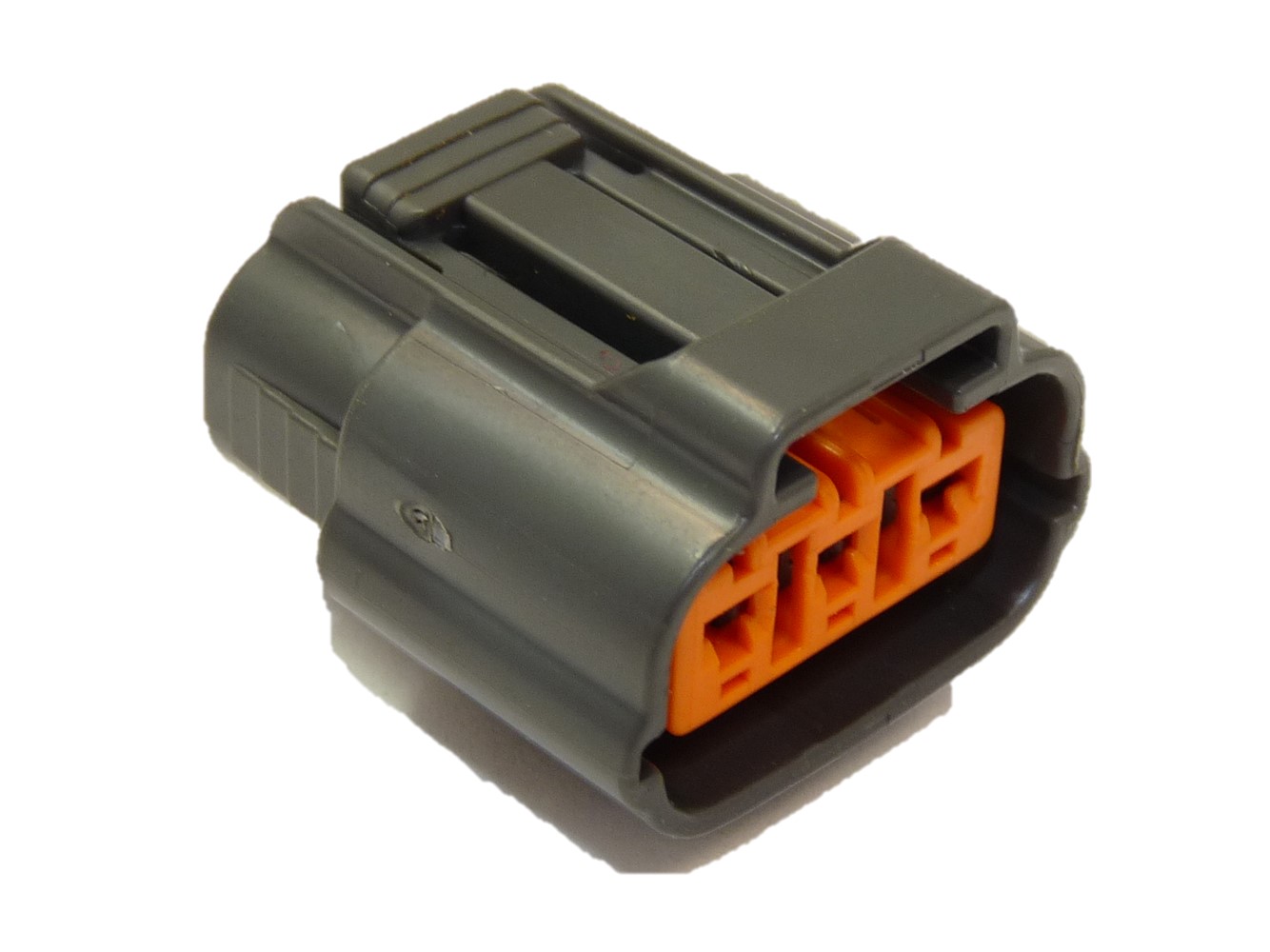

DL 2.3(090) SERIES FEMALE 3 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/25-2-22.jpg
Item 1 of 1
Hersteller:GENERAL MOTORS
Hersteller-Nr.:13580963
Beschreibung:DL 2.3(090) SERIES FEMALE 3 WAY SEALED CONNECTOR
Poligkeit:3
Gedichtet:ja
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 25-2-22
Serie: DL SERIES (090 CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F595

3 × Sumitomo HX/DL/SL/TL 2.3mm(090) female sealed terminal2.30 x 0.64

F425

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
8100-1429SUMITOMOHX/DL/SL/TL 2.3(090) FEMALE SEALED TERMINAL0.75-0.85VERZINNT
6810-1584SUMITOMOSL/DL 2.3(090) SERIES BODY FASTENING CLAMP
8100-1459SUMITOMODL/SL/TL 2.3(090) FEMALE SEALED TERMINAL1.25-2.00VERGOLDET
8100-1460SUMITOMODL/SL/TL 2.3(090) FEMALE SEALED TERMINAL0.75-0.85VERGOLDET
8100-1458SUMITOMODL/SL/TL 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
8100-1427SUMITOMODL/SL/TL 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERZINNT
7161-9787SUMITOMOHX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
8100-1428SUMITOMODL/SL/TL 2.3(090) FEMALE SEALED TERMINAL1.25-2.00VERZINNT
7165-0193SUMITOMOSL/TL/HX/DL SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
