Item 1 of 1
| Hersteller: | APTIV |
|---|---|
| Hersteller-Nr.: | 13581616 |

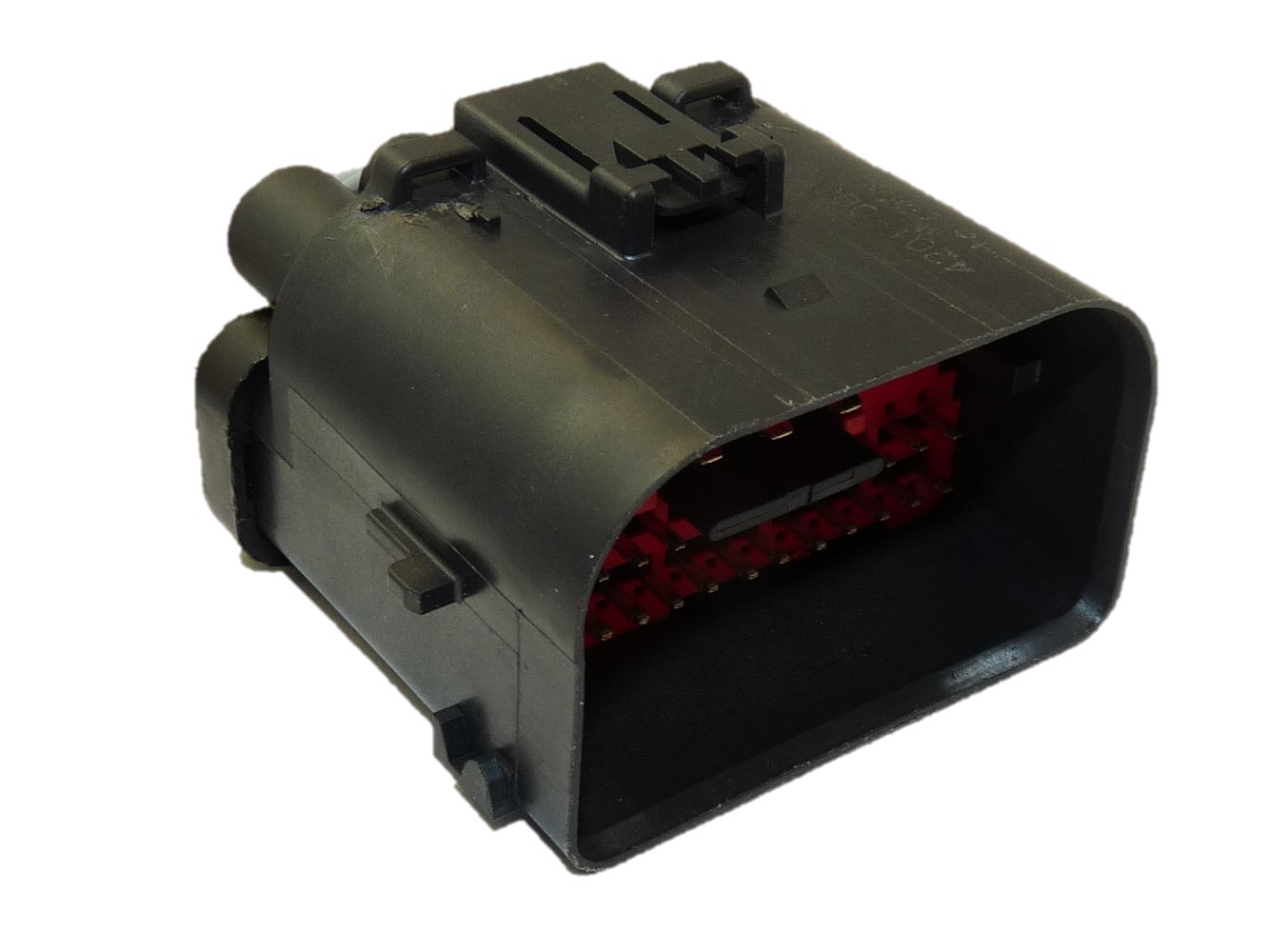

| Beschreibung: | 1.5/2.8/6.3 MALE 34 WAY SEALED CONNECTOR |
| Poligkeit: | 34 |
| Gedichtet: | nein |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 62-2-24 |
|---|---|
| Zeichnungsnummer: | 13551311 |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F595 | 26 × Yazaki YES/YESC Kaizen Connector 1.5(060) male Terminal | 1.50 x 0.80 |
F450 | 6 × Yazaki YESC Kaizen Connector 2.8(110) male Terminal | 2.80 x 0.80 |
F450 | 2 × Yazaki YES/YESC Kaizen Connector 6.3(250) male Terminal | 6.30 x 0.80 |
H970 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 7114-4142-02 | YAZAKI | YES CONNECTOR KAIZEN CONNECTOR 6.3(250) MALE TERMINAL | 4.00 | VERZINNT |
| 7114-4152-02 | YAZAKI | YES CONNECTOR 2.8(110) MALE SEALED TERMINAL | 1.50-2.50 | VERZINNT |
| 7114-4151-02 | YAZAKI | YES CONNECTOR 2.8(110) MALE SEALED TERMINAL | 0.75-1.00 | VERZINNT |
| 7114-4150-02 | YAZAKI | YES CONNECTOR 2.8(110) MALE SEALED TERMINAL | 0.35-0.50 | VERZINNT |
| 7114-4140-02 | YAZAKI | YES CONNECTOR KAIZEN CONNECTOR 6.3(250) MALE TERMINAL | 0.50-1.00 | VERZINNT |
| 33000-1003 | MOLEX | MX150 MALE TERMINAL FOR MAT-SEALED OR UNSEALED CONNECTORS | 0.30 | VERZINNT |
| 33000-1002 | MOLEX | MX150 MALE TERMINAL FOR MAT-SEALED OR UNSEALED CONNECTORS | 0.75-1.25 | VERZINNT |
| 7114-4141-02 | YAZAKI | YES CONNECTOR 6.3(250) SEALED MALE TERMINAL | 1.50-2.50 | VERZINNT |
| 1326031-4 | TE CONNECTIVITY | 2.8X0.8 SEALED MALE TERMINAL | 1.25 | VERZINNT |
| 1-1326031-1 | TE CONNECTIVITY | 2.8X0.8 SEALED MALE TERMINAL | 3.00 | VERZINNT |
| 1326031-5 | TE CONNECTIVITY | 2.8X0.8 SEALED MALE TERMINAL | 2.00 | VERZINNT |
| 1326031-3 | TE CONNECTIVITY | 2.8X0.8 SEALED MALE TERMINAL | 0.82 | VERZINNT |
| 1326031-2 | TE CONNECTIVITY | 2.8X0.8 MALE SEALED TERMINAL | 0.50 | VERZINNT |
| 33000-0002 | MOLEX | MX150 MALE TERMINAL FOR MAT-SEALED OR UNSEALED CONNECTORS | 0.75-1.25 | VERZINNT |
| 15433796 | APTIV | YES CONNECTOR KAIZEN CONNECTOR 6.3(250) MALE TERMINAL | 4.00 | VERZINNT |
| 7158-3082-90 | YAZAKI | YES CONNECTOR WIRE SEAL 9.80MM | 0.50-1.00 | |
| 33000-1004 | MOLEX | MX150 MALE TERMINAL FOR MAT-SEALED OR UNSEALED CONNECTORS | 0.35-0.50 | VERZINNT |
| 1456722-1 | TE CONNECTIVITY | WIRE GUIDE, 34 WAY, RIGHT OUT | ||
| 13834635 | APTIV | EINZELADERDICHTUNG/SINGLE WIRE SEAL 6.90 | ||
| 13834634 | APTIV | EINZELADERDICHTUNG/SINGLE WIRE SEAL 6.90 | ||
| 414347110 | LEONI | YES CONNECTOR 2.8(110) MALE SEALED TERMINAL | 1.50-2.50 | VERZINNT |
| P00170584 | LEONI | EINZELADERDICHTUNG/SINGLE WIRE SEAL 6.90 | ||
| P00170601 | LEONI | EINZELADERDICHTUNG/SINGLE WIRE SEAL 6.90 | ||
| 492228405 | LEONI | YES CONNECTOR WIRE SEAL 9.80MM | 0.50-1.00 | |
| 414347310 | LEONI | YES CONNECTOR KAIZEN CONNECTOR 6.3(250) MALE TERMINAL | 1.50-2.50 | VERZINNT |
| 414040071 | LEONI | MX150 MALE TERMINAL FOR MAT-SEALED OR UNSEALED CONNECTORS | 0.35 | VERZINNT |
| 414004295 | LEONI | 2.8X0.8 UNSEALED MALE TERMINAL | 0.75-1.00 | VERZINNT |
| 414040170 | LEONI | MX150 MALE TERMINAL FOR MAT-SEALED OR UNSEALED CONNECTORS | 0.50-0.75 | VERZINNT |
| GHCT-10C930-TA | FORD | EINZELADERDICHTUNG/SINGLE WIRE SEAL 6.90 | ||
| 97BG-14421-CEA | FORD | YES CONNECTOR KAIZEN CONNECTOR 6.3(250) MALE TERMINAL | 1.50-2.50 | VERZINNT |
| 97BG-14421-BFA | FORD | YES CONNECTOR 2.8(110) MALE SEALED TERMINAL | 1.50-2.50 | VERZINNT |
| 97BG-14421-BEA | FORD | YES CONNECTOR 2.8(110) MALE SEALED TERMINAL | 1.50-2.50 | VERZINNT |
| 97BG-10C930-KA | FORD | YES CONNECTOR WIRE SEAL 9.80MM | 0.50-1.00 | |
| 2L1T-14421-CA(L-R) | FORD | MX150 MALE TERMINAL FOR MAT-SEALED OR UNSEALED CONNECTORS | 0.50-0.75 | VERZINNT |
| 2L1T-14421-BA(L-R) | FORD | MX150 MALE TERMINAL FOR MAT-SEALED OR UNSEALED CONNECTORS | 0.35 | VERZINNT |
| GHCT-10C930-XA | FORD | EINZELADERDICHTUNG/SINGLE WIRE SEAL 6.90 | ||
| P00004913 | LEONI | YES CONNECTOR 2.8(110) MALE SEALED TERMINAL | 0.75-1.00 | VERZINNT |
| P00059221 | LEONI | MX150 MALE TERMINAL FOR MAT-SEALED OR UNSEALED CONNECTORS | 0.30 | VERZINNT |
| P00102695 | LEONI | YES CONNECTOR 2.8(110) MALE SEALED TERMINAL | 1.50-2.50 | VERZINNT |
| P00005013 | LEONI | MX150 MALE TERMINAL FOR MAT-SEALED OR UNSEALED CONNECTORS | 0.75-1.25 | VERZINNT |
| P00002102 | LEONI | YES CONNECTOR KAIZEN CONNECTOR 6.3(250) MALE TERMINAL | 4.00 | VERZINNT |
| P00002101 | LEONI | YES CONNECTOR KAIZEN CONNECTOR 6.3(250) MALE TERMINAL | 0.50-1.00 | VERZINNT |
| P00002831 | LEONI | YES CONNECTOR 6.3(250) SEALED MALE TERMINAL | 1.50-2.50 | VERZINNT |
| P00006067 | LEONI | YES CONNECTOR 2.8(110) MALE SEALED TERMINAL | 0.35-0.50 | VERZINNT |
