Item 1 of 1
| Hersteller: | APTIV |
|---|---|
| Hersteller-Nr.: | 13759372 |

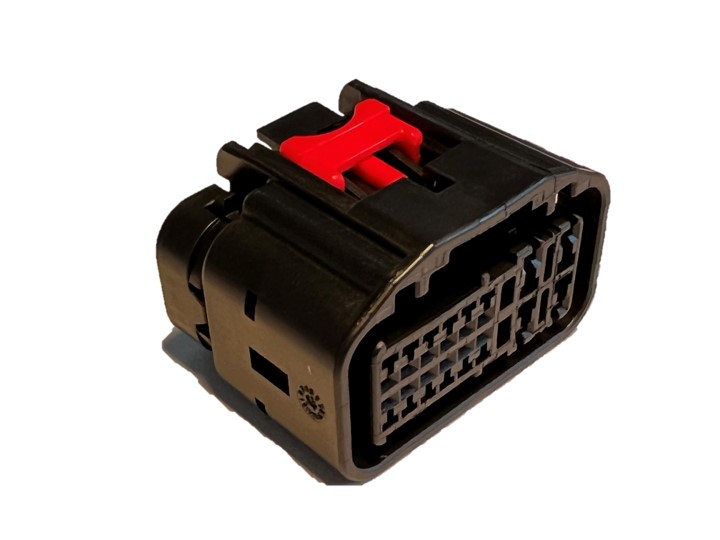

| Beschreibung: | 0.64/1.5MM YESC HYBRID FEMALE 16 WAY SEALED CONNECTOR |
| Poligkeit: | 16 |
| Gedichtet: | nein |
| Farbe: | BLACK |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 80-2-25 |
|---|---|
| Serie: | YES/YESC KAIZEN CONNECTORS |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F1010 | 12 × Yazaki YES/YESC Kaizen Connector 1.5(060) Female Terminal | 1.50 x 0.80 |
F1009 | 4 × Yazaki YES/YESC Kaizen Connector 0.64(025) Female Terminal | 0.80 x 0.64 |
E250 | 1 × Blindstopfen-dummy plug | |
E255 | 1 × Blindstopfen-dummy plug | |
G530 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 7116-4103-02 | YAZAKI | YES CONNECTOR 1.5(060) FEMALE SEALED TERMINAL | 0.75-1.00 | VERZINNT |
| 7116-4721-02 | YAZAKI | YES CONNECTOR 0.64(025) FEMALE SEALED/UNSEALED TERMINAL | 0.50-0.85 | VERZINNT |
| 7116-4102-02 | YAZAKI | YES CONNECTOR 1.5(060) FEMALE SEALED TERMINAL | 0.35-0.50 | VERZINNT |
| 7116-4720-02 | YAZAKI | YES CONNECTOR 0.64(025) FEMALE SEALED/UNSEALED TERMINAL | 0.30 | VERZINNT |
| 7116-4105-02 | YAZAKI | YES CONNECTOR 1.5(060) FEMALE SEALED TERMINAL | 1.50 | VERZINNT |
| 7158-3033-40 | YAZAKI | EINZELADERDICHTUNG/SINGLE WIRE SEAL | ||
| 7158-7475-30 | YAZAKI | WIRE COVER | ||
| 7158-3032-60 | YAZAKI | BLINDSTOPFEN-DUMMY PLUG 5.40MM | ||
| 7158-3031-90 | YAZAKI | EINZELADERDICHTUNG/SINGLE WIRE SEAL 5.40 | 0.30-1.25 | |
| 7158-3030-50 | YAZAKI | EINZELADERDICHTUNG/SINGLE WIRE SEAL 5.40 | 0.30-0.50 | |
| 7158-8240 | YAZAKI | CTX64 SEAL PLUG | ||
| 32025Y34H | LEAR | GTS-2 FEMALE TERMINAL 1.5 | 0.50-0.75 | VERZINNT |
| 49YA000060 | YAZAKI 1.5MM SYSTEM EXTRACTION TOOL |
|---|---|
| 49YA000105 | YAZAKI 0.64MM SYSTEM EXTRACTION TOOL |
