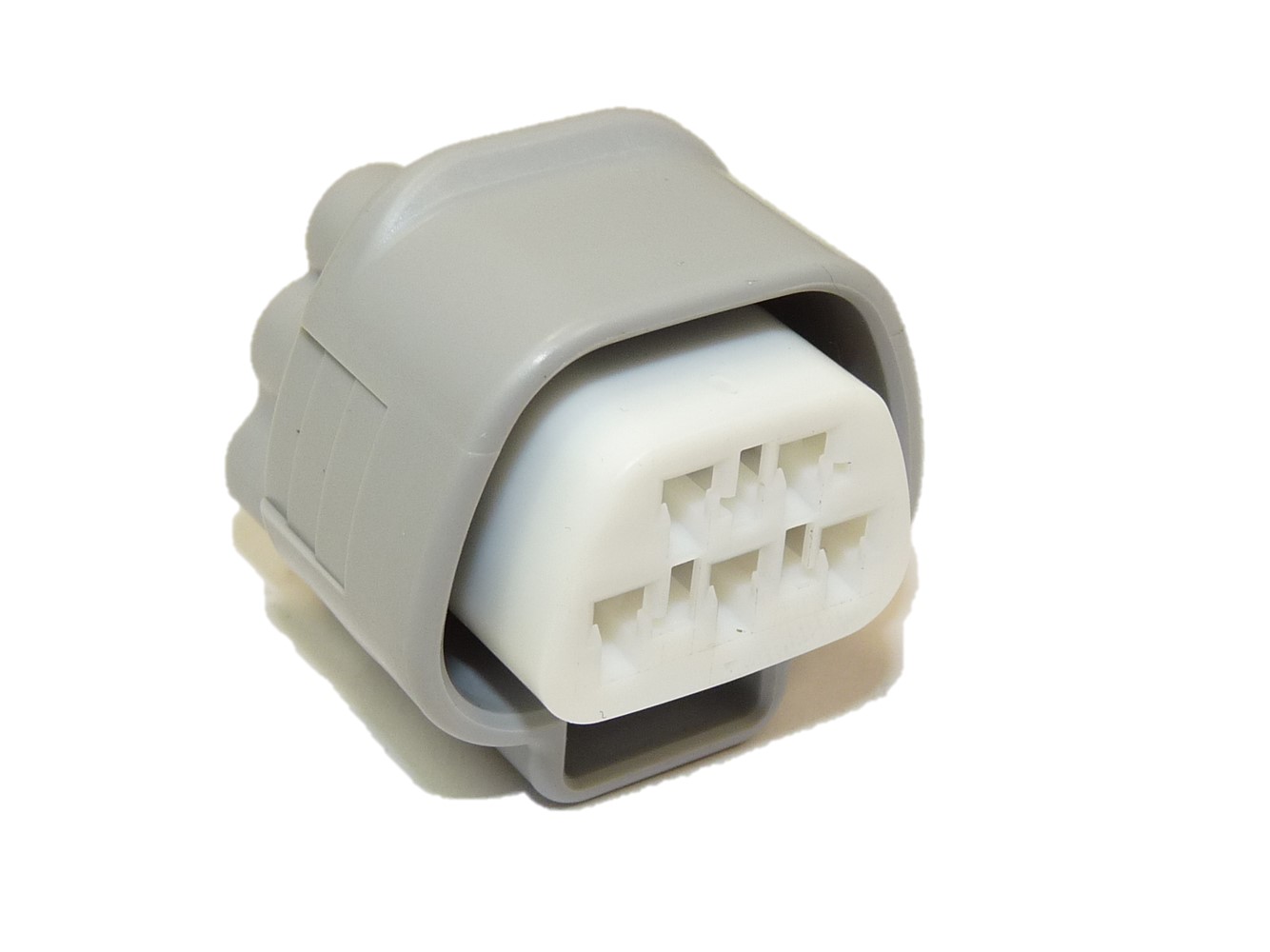

TS 2.3(090) SERIES FEMALE 5 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/26-1-42.jpg
Item 1 of 1
Hersteller:APTIV
Hersteller-Nr.:15316488
Beschreibung:TS 2.3(090) SERIES FEMALE 5 WAY SEALED CONNECTOR
Poligkeit:5
Gedichtet:nein
Farbe:GREY
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 26-1-42
Serie: TS SEALED SERIES (090 CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F417

5 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed2.30 x 0.64

F460

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
8100-1344SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
7165-0395SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
7165-0842SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.35-0.50
8100-0460SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERZINNT
8100-0461SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERZINNT
8100-0462SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERZINNT
8100-0817SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERGOLDET
7165-0344SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
8100-0594SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERGOLDET
7116-5046-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
7165-0343SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
7165-0342SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7165-0076SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL
7161-9787SUMITOMOHX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
7160-9465SUMITOMODUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
7160-8234SUMITOMOTS/SL/MT/HM 2.3(090) SERIES SINGLE WIRE SEAL0.50-1.25
7165-0349SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7165-0351SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
8100-3455SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.22-0.50VERZINNT
8240-0337SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.13VERGOLDET
8240-0336SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.13VERZINNT
8240-0288SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.50VERGOLDET
8100-3456SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.22-0.50VERGOLDET
7165-0797SUMITOMODUMMY PLUG TS SERIES 0.64MM(025)
8240-0287SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.50VERZINNT
XR8T-14474-CAFORDTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.85-1.25VERZINNT
9HC2-14474-GMAFORDTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL2.00VERZINNT
7116-4027YAZAKI2.3II(090II) FEMALE SEALED TERMINAL2.00VERZINNT
7116-4026YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.85-1.25VERZINNT
7116-4028-08YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
7116-5045-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
7116-5044-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
90980-09152TOYOTADUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
82998-24410TOYOTATS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-12590TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-12460TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE0.20-0.60VERGOLDET
82998-12440TOYOTA2.3(090) FEMALE SEALED TERMINAL WITH 160MM WIRE0.20-0.60VERZINNT
82998-12800TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-24400TOYOTATS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIREVERGOLDET
J-38125-552KENT MOORE/GENERAL MOTORS TERMINAL EXTRACTION TOOL
