Item 1 of 1
| Hersteller: | HYUNDAI |
|---|---|
| Hersteller-Nr.: | 1898002037AS |

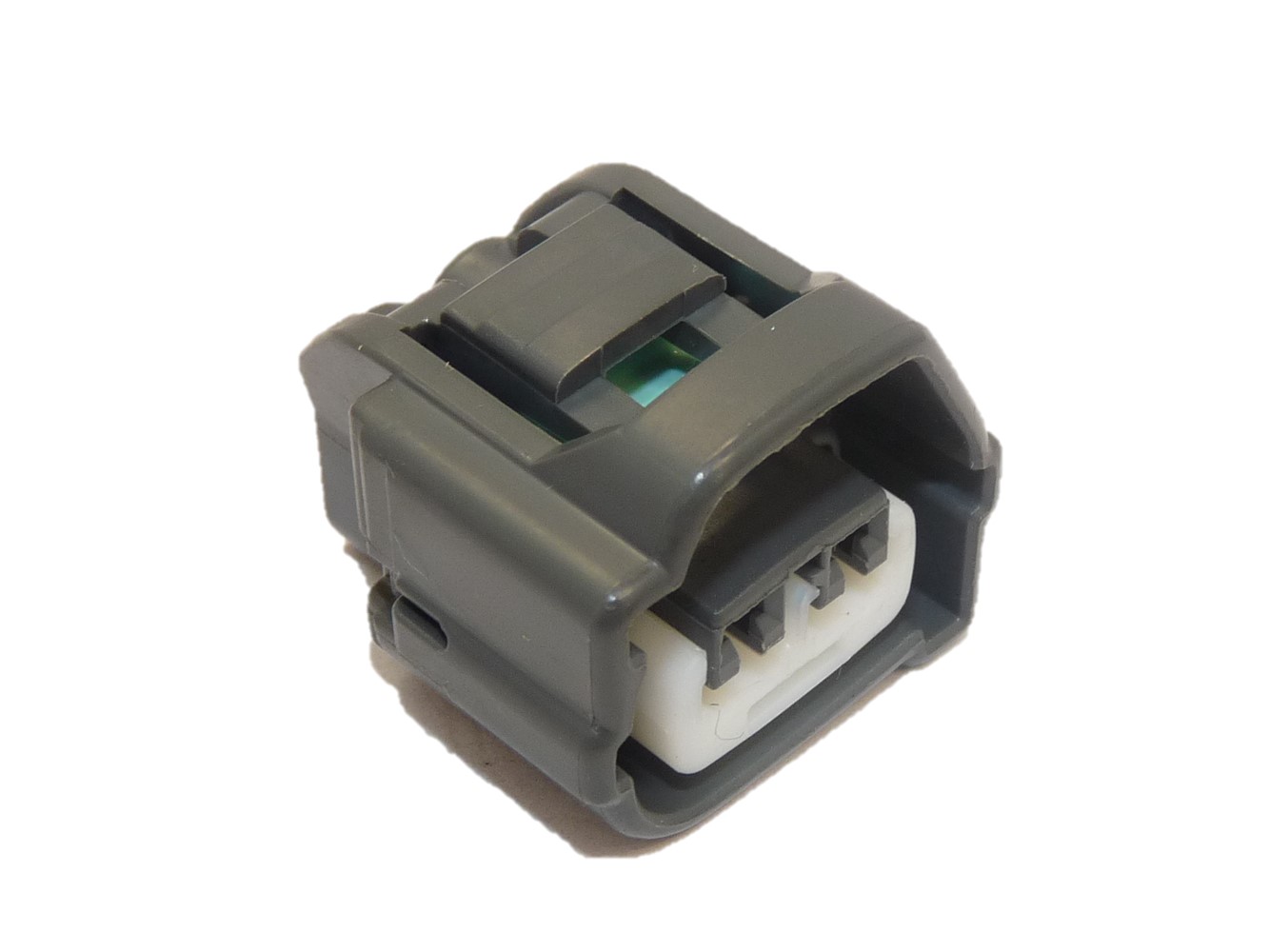

| Beschreibung: | 2.3(090) SERIES II FEMALE 2 WAY SEALED CONNECTOR |
| Poligkeit: | 2 |
| Gedichtet: | nein |
| Farbe: | GREY |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 16-2-08 |
|---|---|
| Serie: | 2.3(090) CONNECTORS |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F595 | 2 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed | 2.30 x 0.64 |
F425 | 1 × secondary lock | |
S192 | 1 × Verriegler Sekundärsicherung; closing tool secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| ST730623-3 | KET ( KOREA ELECTRIC TERMINAL) | 090II FEMALE SEALED TERMINAL | 0.30-0.50 | VERZINNT |
| ST730624-3 | KET ( KOREA ELECTRIC TERMINAL) | 090II FEMALE SEALED TERMINAL | 0.85-1.25 | VERZINNT |
| ST730625-3 | KET ( KOREA ELECTRIC TERMINAL) | 090II FEMALE SEALED TERMINAL | 2.00 | VERZINNT |
| 7116-4025 | YAZAKI | 2.3II(090II) FEMALE SEALED TERMINAL | 0.30-0.50 | VERZINNT |
| 8100-1344 | SUMITOMO | TS 2.3(090) SERIES FEMALE SEALED TERMINAL | 0.30-0.50 | VERGOLDET |
| 7116-4029-08 | YAZAKI | 2.3II(090II) FEMALE SEALED TERMINAL | 0.85-1.25 | VERGOLDET |
| 7116-4026 | YAZAKI | 2.3II(090II) FEMALE SEALED TERMINAL | 0.85-1.25 | VERZINNT |
| 7116-4027 | YAZAKI | 2.3II(090II) FEMALE SEALED TERMINAL | 2.00 | VERZINNT |
| 7116-4028-08 | YAZAKI | 2.3II(090II) FEMALE SEALED TERMINAL | 0.30-0.50 | VERGOLDET |
| 90980-09152 | TOYOTA | DUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES | ||
| 82999-12030 | TOYOTA | WIRE SEAL | 1.25 | |
| 82999-12020 | TOYOTA | WIRE SEAL | 1.25 | |
| 82998-24410 | TOYOTA | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-24400 | TOYOTA | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-12800 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-12590 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-12440 | TOYOTA | 2.3(090) FEMALE SEALED TERMINAL WITH 160MM WIRE | 0.20-0.60 | VERZINNT |
| 82998-12460 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE | 0.20-0.60 | VERGOLDET |
