| Hersteller: | TE CONNECTIVITY |
|---|---|
| Hersteller-Nr.: | 2386194-1 |

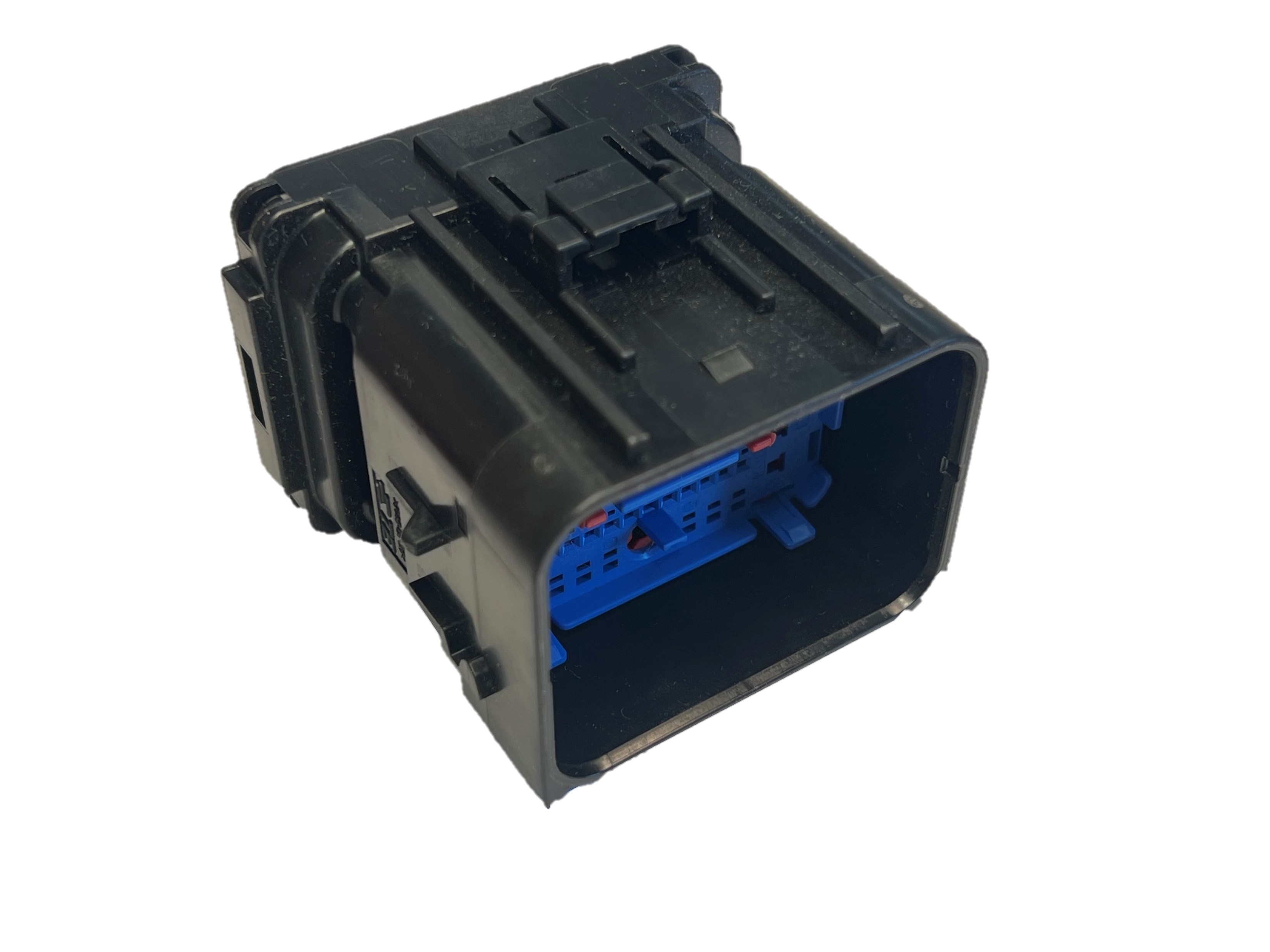

| Beschreibung: | GET .64 FEMALE 68 WAY UNSEALED CONNECTOR |
| Poligkeit: | 68 |
| Gedichtet: | ja |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 92-2-02 |
|---|
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F1040 | 1 × Tyco/AMP 0.64mm pin terminal | 0.80 x 0.64 |
F595 | 1 × FCI Sicma 2.8mm male terminal | 2.80 x 0.80 |
H990 | 1 × secondary lock | |
G105 | 1 × Terminal 1 | |
S3572 | 1 × Verriegler Sekundärsicherung; closing tool secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 0-1924275-3 | TE CONNECTIVITY | GENERATION Y MALE TERMINAL | ||
| 0-1924275-4 | TE CONNECTIVITY | GENERATION Y MALE TERMINAL | ||
| 10762774 | APTIV | APEX 2.8 MALE TERMINAL | 4.00-6.00 | VERZINNT |
| 1-1456841-3 | TE CONNECTIVITY | GENERATION Y FEMALE TERMINAL | 0.30-0.50 | |
| 1-1456841-4 | TE CONNECTIVITY | GENERATION Y FEMALE TERMINAL | 0.30-0.50 | |
| 2377194-1 | TE CONNECTIVITY | GENERATION Y 0.64 SEAL PLUG | ||
| 34345-0003 | MOLEX | MOLEX 1.5 MM CAVITY SEAL PLUG | ||
| 361330-YF200 | LEAR | LEAR ISO-RELAY FEMALE 6.3MM TERMINAL | 0.50-1.50 | VERZINNT |
| 361830YF200 | LEAR | LEAR ISO-RELAY FEMALE 6.3MM TERMINAL | 0.50-1.50 | VERZINNT |
| 54001401RWA | APTIV | APEX 2.8 MALE TERMINAL | 1.00-1.50 | VERZINNT |
| 54001801RWA | APTIV | APEX 2.8 MALE TERMINAL | 0.50-1.00 | VERZINNT |
| 7114-1982-02 | YAZAKI | TERMINAL BLADE TYPE MALE 2.80MM GRIP-10 | VERZINNT | |
| 7114-4101-02 | YAZAKI | YES CONNECTOR 1.5(060) MALE UNSEALED TERMINAL | 0.75-1.00 | VERZINNT |
| 7114-6315-02 | YAZAKI | YES CONNECTOR 1.5(060) MALE TERMINAL | VERZINNT | |
| 7114-6316-02 | YAZAKI | YES CONNECTOR 1.5(060) MALE TERMINAL | VERZINNT | |
| 7114-6317-02 | YAZAKI | YES CONNECTOR 1.5(060) MALE TERMINAL | VERZINNT | |
| 8240-0424 | SUMITOMO | US/US DOOR 2.8(110) SERIES FEMALE UNSEALED TERMINAL | 1.50-2.50 | VERZINNT |
| 1-1579007-6 | TE TOOL FOR MATE-AX CONTACTS |
|---|---|
| 1452426-1 | TE TOOL FOR MX150 AND APTIV 2.8 TERMINALS |
| 1579028-8 | TE TOOL TO RESET THE PPP BACK TO THE PRE-STAGE POSITION |
| 2394300-1 | TE TOOL FOR MATE-AX CONTACTS |
| 8-1579007-9 | TE TOOL FOR GENERATION Y TERMINALS |
| J-38125-215A | TE TOOL FOR GENERATION Y TERMINALS |
| J-38125-216 | TE TOOL TO RESET THE PPP BACK TO THE PRE-STAGE POSITION |
