Item 1 of 1
| Hersteller: | KROSCHU |
|---|---|
| Hersteller-Nr.: | 25400 |

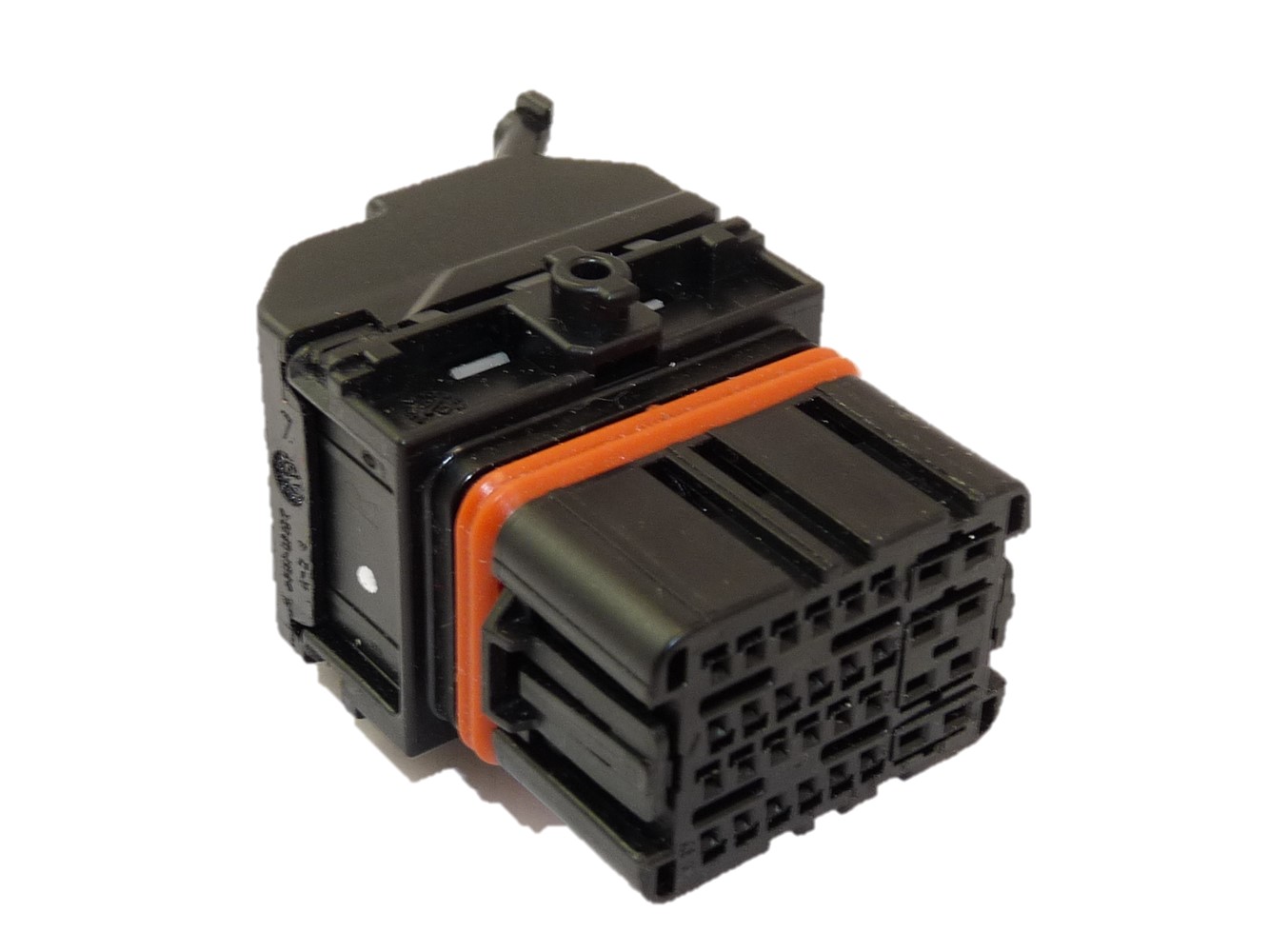

| Beschreibung: | GTS 0.64/1.5 FEMALE 32 WAY CMC SEALED CONNECTOR |
| Poligkeit: | 32 |
| Gedichtet: | nein |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 34-2-18 |
|---|---|
| Serie: | CMC |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F695 | 8 × FCI GTS-2 female terminal 1.5 | 1.50 x 0.80 |
S2040 | 1 × Cover | |
F668 | 24 × FCI Micro-Sicma 0.64 / GTS 0.64 female terminal | 0.64 x 0.64 |
E425 | 1 × Blindstopfen-dummy plug | |
E430 | 1 × Blindstopfen-dummy plug | |
Z001 | 1 × Blindstopfen-dummy plug | |
S3297 | 1 × secondary lock | |
S2015 | 1 × Verriegler Sekundärsicherung; closing tool secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| PPI0000453 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 1.25-2.00 | VERZINNT |
| PPI0001619 | APTIV | MICRO-SICMA 0.635 / GTS 0.64 FEMALE TERMINAL | 0.35 | VERZINNT |
| PPI0001486 | APTIV | BLINDSTOPFEN-DUMMY PLUG 1.5MM | ||
| PPI0001485 | APTIV | BLINDSTOPFEN-DUMMY PLUG 0.635MM | ||
| PPI0001484 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 1.25-2.00 | VERZINNT |
| PPI0001483 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 0.85-1.00 | VERZINNT |
| 7116-4415-02 | YAZAKI | RH CONNECTORS/HS CONNECTORS FEMALE SEALED TERMINAL | 0.30 | VERZINNT |
| PPI0000489 | APTIV | MICRO-SICMA 0.635 / GTS 0.64 FEMALE TERMINAL | 0.50 | VERZINNT |
| PPI0000452 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 0.50-0.75 | VERZINNT |
| 7134-8872-30 | YAZAKI | COVER 32 WAY CMC CONNECTOR TYPE I | ||
| 7116-4488-08 | YAZAKI | RH CONNECTORS/HS CONNECTORS SEALED TERMINAL | 0.50 | VERGOLDET |
| 7116-4487-08 | YAZAKI | RH CONNECTORS/HS CONNECTORS TERMINAL | 0.22-0.35 | VERGOLDET |
| 7116-4416-02 | YAZAKI | RH CONNECTORS/HS CONNECTORS FEMALE SEALED TERMINAL | 0.35-0.50 | VERZINNT |
| PPI0000591 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 1.00-1.30 | VERZINNT |
| 13741954 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 0.85-1.00 | VERZINNT |
| 13712871 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 0.50-0.75 | VERZINNT |
| 13749482 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 1.25-2.00 | VERZINNT |
| 13955989 | APTIV | MICRO-SICMA 0.635 / GTS 0.64 FEMALE TERMINAL | 0.22-0.35 | VERZINNT |
| 13648598 | APTIV | MICRO-SICMA 0.635 / GTS 0.64 FEMALE TERMINAL | 0.50 | VERZINNT |
| 1400-5347 | SUMITOMO | GTS-2 FEMALE TERMINAL 1.5 | ||
| 7116-5927-02 | YAZAKI | GTS-2 FEMALE TERMINAL 1.5 | 1.25-2.00 | VERZINNT |
| 8200638680 | RENAULT | GTS-2 FEMALE TERMINAL 1.5 | 1.25-2.00 | VERZINNT |
| 8200185963 | RENAULT | RH CONNECTORS/HS CONNECTORS FEMALE SEALED TERMINAL | 0.30 | VERZINNT |
