Item 1 of 1
| Hersteller: | KROSCHU |
|---|---|
| Hersteller-Nr.: | 30688 |
| Beschreibung: | 17 WAY 14X1.2+2X2.8+1X4.8 MALE UNSEALED CODING III IN LINE |
| Poligkeit: | 17 |
| Gedichtet: | ja |
| Farbe: | RED |
| Gehäusesicherung/Sekundärverriegelung: | ja |

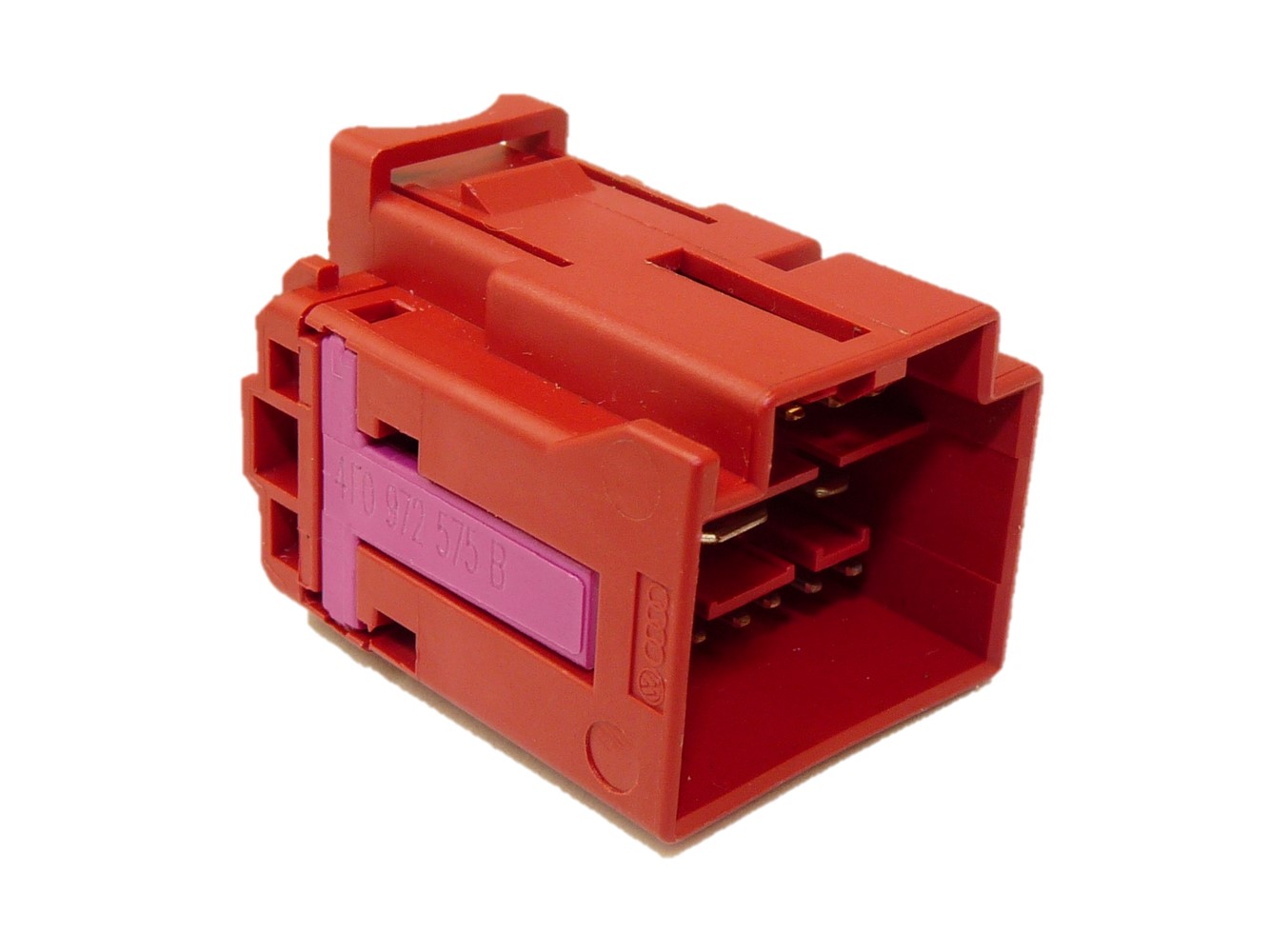

| TGS Gehäuse-ID: | 35-1-12 |
|---|
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F593 | 14 × Tyco/AMP Micro Power Quadlock 0.63 male terminal | 0.63 x 0.63 |
F593 | 14 × Kostal MLK 1.2 male terminal | 0.63 x 0.63 |
G215 | 2 × GHW AFS 2.8 male terminal | 2.80 x 0.80 |
G215 | 1 × Tyco/AMP Timer male terminal 5.8 symmetric | 5.80 x 0.80 |
G215 | 2 × Tyco/AMP Timer male terminal 2.8 symmetric | 2.80 x 0.80 |
G215 | 1 × GHW male terminal 5.8x0.8 | 5.80 x 0.80 |
F425 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 5-1418758-1 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERZINNT |
| 964308-1 | TE CONNECTIVITY | TIMER MALE TERMINAL 5.8 SYMMETRIC | 2.50-4.00 | VERZINNT |
| 964304-1 | TE CONNECTIVITY | TIMER MALE TERMINAL 5.8 SYMMETRIC | 0.50-1.00 | VERZINNT |
| 5-1418760-1 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.50-0.75 | VERZINNT |
| 2-964296-1 | TE CONNECTIVITY | TIMER MALE TERMINAL 2.8 SYMMETRIC | 1.00-2.50 | VERZINNT |
| 2-964294-1 | TE CONNECTIVITY | TIMER MALE TERMINAL 2.8 SYMMETRIC | 0.50-1.00 | VERZINNT |
| 2-964292-1 | TE CONNECTIVITY | TIMER MALE TERMINAL 2.8 SYMMETRIC | 0.20-0.50 | VERZINNT |
| 26689.330.185 | LEAR/GHW | AFS 4.8 MALE TERMINAL | 1.50-2.50 | VERZINNT |
| 1418758-1 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERZINNT |
| 5-1418760-2 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.50-0.75 | VERGOLDET |
| 26659.330.185 | LEAR/GHW | AFS 2.8 MALE TERMINAL | 0.50-1.00 | VERZINNT |
| 032193 | KROSCHU | MCON 1.2 MALE TERMINAL | 0.50-0.75 | VERZINNT |
| 1418758-2 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERGOLDET |
| 1418760-1 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.50-0.75 | VERZINNT |
| 1418762-1 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 1.00-1.50 | VERZINNT |
| 2141864-1 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.13-0.17 | VERZINNT |
| 26657.330.185 | LEAR/GHW | AFS 2.8 MALE TERMINAL | 1.50-2.50 | VERZINNT |
| 032191 | KROSCHU | MCON 1.2 MALE TERMINAL | 1.00-1.50 | VERZINNT |
| 001070 | KROSCHU | MCON 1.2 MALE TERMINAL | 0.50-0.75 | VERGOLDET |
| 025031 | KROSCHU | MLK 1.2 MALE TERMINAL | 0.12-0.14 | VERZINNT |
| 001060 | KROSCHU | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERZINNT |
| 032192 | KROSCHU | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERZINNT |
| 067274 | KROSCHU | TIMER MALE TERMINAL 2.8 SYMMETRIC | 1.00-2.50 | VERZINNT |
| 067275 | KROSCHU | TIMER MALE TERMINAL 2.8 SYMMETRIC | 0.50-1.00 | VERZINNT |
| 067306 | KROSCHU | TIMER MALE TERMINAL 5.8 SYMMETRIC | 2.50-4.00 | VERZINNT |
| 067307 | KROSCHU | TIMER MALE TERMINAL 2.8 SYMMETRIC | 0.20-0.50 | VERZINNT |
| 068262 | KROSCHU | TIMER MALE TERMINAL 5.8 SYMMETRIC | 0.50-1.00 | VERZINNT |
| 023553 | KROSCHU | MCON 1.2 MALE TERMINAL | 0.50-0.75 | VERZINNT |
| 001066 | KROSCHU | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERGOLDET |
| 032187 | KROSCHU | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERGOLDET |
| 068263 | KROSCHU | TIMER MALE TERMINAL 5.8 SYMMETRIC | 1.00-2.50 | VERZINNT |
| 023431 | KROSCHU | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERSILBERT |
| 32140680900 | KOSTAL | MLK 1.2 MALE TERMINAL | 0.50-0.75 | VERZINNT |
| 32192 | KROSCHU | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERZINNT |
| 32193 | KROSCHU | MCON 1.2 MALE TERMINAL | 0.50-0.75 | VERZINNT |
| 60110311 | APTIV | DCS 2.8 MALE TERMINAL | 0.22-0.35 | VERZINNT |
| 32140651750 | KOSTAL | MLK 1.2 MALE TERMINAL | 0.17-0.22 | VERZINNT |
| 5-1418758-2 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERGOLDET |
| 964306-1 | TE CONNECTIVITY | TIMER MALE TERMINAL 5.8 SYMMETRIC | 1.00-2.50 | VERZINNT |
| 10096521 | KOSTAL | MLK 1.2 MALE TERMINAL | 0.12-0.14 | VERZINNT |
| 5-1418758-3 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERSILBERT |
| 26788.330.185 | LEAR/GHW | AFS 4.8 MALE TERMINAL | 0.20-0.50 | VERZINNT |
| 2-2141874-1 | TE CONNECTIVITY | TIMER MALE TERMINAL 2.8 SYMMETRIC | 0.35 | VERZINNT |
| 26685.330.185 | LEAR/GHW | AFS 4.8 MALE TERMINAL | 0.50-1.00 | VERZINNT |
| 000979307E | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | TIMER MALE TERMINAL 5.8 SYMMETRIC WITH WIRE | 4.00 | VERZINNT |
| 000979035EA | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | MCON 1.2 MALE TERMINAL WITH WIRE | 0.50 | VERGOLDET |
| 000979243E | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | MCP 4.8/6.3 FEMALE TERMINAL WITH WIRE | 2.50 | VERZINNT |
| 000979022EA | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | TIMER MALE TERMINAL 2.8 SYMMETRIC WITH WIRE | 0.50 | VERGOLDET |
| 000979035E | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | MCON 1.2 MALE TERMINAL WITH WIRE | ||
| 000979022E | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | TIMER MALE TERMINAL 2.8 SYMMETRIC WITH WIRE | 0.50 | VERZINNT |
| 000979035EC | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | MCON 1.2 MALE TERMINAL WITH WIRE | 0.50 | VERSILBERT |
| 000979134E | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | TIMER MALE TERMINAL 2.8 SYMMETRIC WITH WIRE | 1.00 | VERZINNT |
| 000979226EA | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | TIMER MALE TERMINAL 2.8 SYMMETRIC WITH WIRE | 2.50 | VERGOLDET |
| 000979024E | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | TIMER MALE TERMINAL 5.8 SYMMETRIC WITH WIRE | 0.50 | VERZINNT |
| 000979228E | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | TIMER MALE TERMINAL 5.8 SYMMETRIC WITH WIRE | 2.50 | VERZINNT |
| 000979134EA | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | TIMER MALE TERMINAL 2.8 SYMMETRIC WITH WIRE | 1.00 | VERGOLDET |
| 000979226E | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | TIMER MALE TERMINAL 2.8 SYMMETRIC WITH WIRE | 2.50 | VERZINNT |
| 000979160EC | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | MCON 1.2 MALE TERMINAL WITH WIRE | 1.00 | VERSILBERT |
| 000979160EA | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | MCON 1.2 MALE TERMINAL WITH WIRE | 1.00 | VERGOLDET |
| 000979160E | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | MCON 1.2 MALE TERMINAL WITH WIRE | 1.00 | VERZINNT |
| 000979136E | VAS (VOLKSWAGEN, AUDI, SEAT, SKODA) | TIMER MALE TERMINAL 5.8 SYMMETRIC WITH WIRE | 1.00 | VERZINNT |
| 1418760-2 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.50-0.75 | VERGOLDET |
