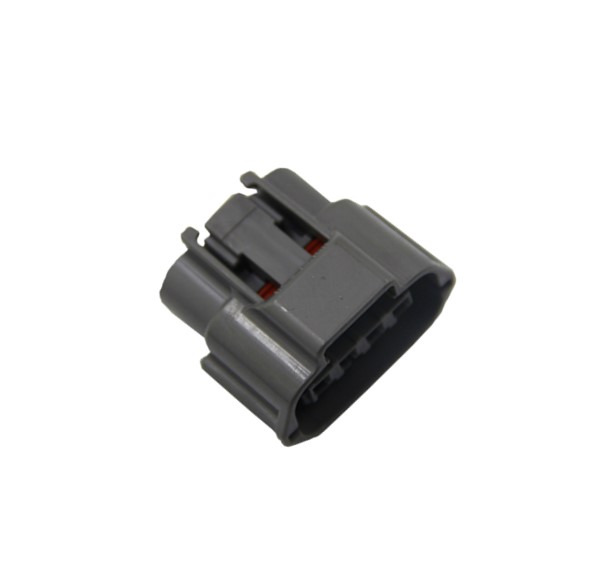

RS TYPE FEMALE 4 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/66-1-01.jpg
Item 1 of 1
Hersteller:LEAR/GHW
Hersteller-Nr.:321870206
Beschreibung:RS TYPE FEMALE 4 WAY SEALED CONNECTOR
Poligkeit:4
Gedichtet:nein
Farbe:BROWN
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 66-1-01
Serie: 62 CONNECTORS 090/STANDARD E
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F450

4 × Sumitomo RS series 2.3mm(090) female terminal2.30 x 0.64

F460

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
6920-0081SUMITOMO62 SEALED 090 SERIES HOLDER 4 WAY FEMALE CONNECTOR
7165-0168SUMITOMO62 CONNECTORS SEALED SERIES DUMMY PLUG 5.20
7165-1131SUMITOMODUMMY PLUG RS 2.3(090) SERIES 5.45MM2.00
8240-0263SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERZINNT
8240-0264SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.85-1.25VERZINNT
8240-0265SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL2.00VERZINNT
8240-0266SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
8240-0268SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL2.00VERGOLDET
7165-0159SUMITOMO62 SEALED 090 SERIES SINGLE WIRE SEAL0.85-2.00
8240-0267SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.85-1.25VERGOLDET
1410-0097SUMITOMO62 SEALED SERIES 2.3(090) FEMALE SEALED TERMINAL1.25-2.00VERZINNT
7165-0157SUMITOMO62 SEALED 090 SERIES SINGLE WIRE SEAL0.30-0.85
1410-0096SUMITOMO62 SEALED SERIES 2.3(090) FEMALE SEALED TERMINAL0.35-0.50VERZINNT
7165-0084SUMITOMO62-Z + E TYPE SERIES DUMMY PLUG 4.40
7165-0158SUMITOMO62 SEALED 090 SERIES SINGLE WIRE SEAL0.50-1.25
6918-1596SUMITOMOTPA RS 2.3(090) SERIES SEALED 4 WAY CONNECTORS
1410-0099SUMITOMO62 SEALED SERIES 2.3(090) FEMALE SEALED TERMINAL1.25-2.00VERGOLDET
1410-0098SUMITOMO62 SEALED SERIES 2.3(090) FEMALE TERMINAL0.30-0.85VERGOLDET
7165-0156SUMITOMO62 SEALED 090 SERIES SINGLE WIRE SEAL1.25
7116-1530-08YAZAKINEW E TYPE TERMINAL FEMALEVERGOLDET
5-1703282-1TE CONNECTIVITYMICRO-QUADLOCK 0.63 CLEANBODY FEMALE TERMINAL0.50-0.75VERSILBERT
8200074717RENAULTRS SERIES 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERZINNT
8200074729RENAULTRS SERIES 2.3(090) FEMALE SEALED TERMINAL0.85-1.25VERZINNT
J-48817-267BOSCHRS SERIES 2.3(090) FEMALE SEALED TERMINAL0.85-1.25VERGOLDET
