Item 1 of 1
| Hersteller: | APTIV |
|---|---|
| Hersteller-Nr.: | 33156001 |
| Beschreibung: | CMC FEMALE 86 WAY SEALED MODULE HOLDER WIRE DIRECTION RIGHT |
| Poligkeit: | 86 |
| Gedichtet: | nein |
| Farbe: | BROWN |
| Gehäusesicherung/Sekundärverriegelung: | ja |

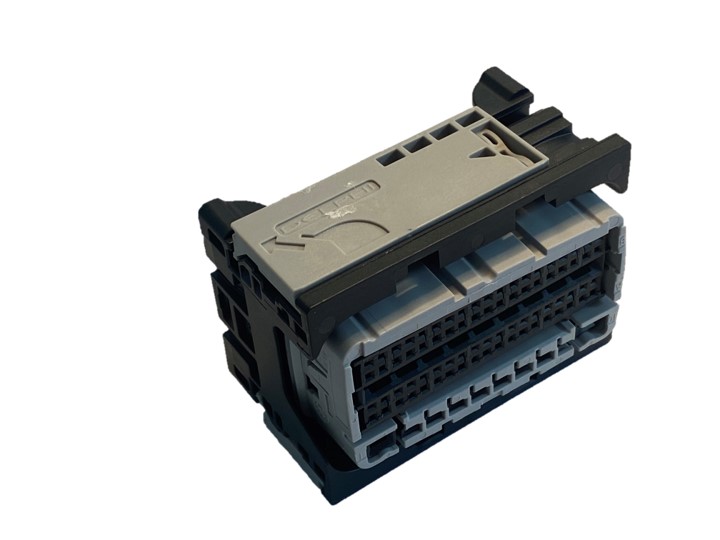

| TGS Gehäuse-ID: | 76-1-08 |
|---|---|
| Serie: | CMC |
| Anleitungsnummer: | PU 175 |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F450 | 1 × FCI GTS-2 female terminal 1.5 | 1.50 x 0.80 |
F450 | 1 × FCI Apex 2.8 female terminal | 2.80 x 0.80 |
S3601 | 1 × Gehäuse / connectors | |
F595 | 38 × Yazaki RH Connectors/HS 025 female terminal | 0.64 x 0.64 |
F425 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 7703697032 | MERCEDES-BENZ | EINZELADERDICHTUNG/SINGLE WIRE SEAL HPCS 2.8MM | 0.20-1.00 | |
| 60994023 | APTIV | EINZELADERDICHTUNG/SINGLE WIRE SEAL HPCS 2.8/DCS-2/DCK 2.8 SHORT | 1.50 | |
| 60994034 | APTIV | EINZELADERDICHTUNG/SINGLE WIRE SEAL HPCS 2.8/DCS-2/DCK 2.8 SHORT | 2.50 | |
| 7116-4415-02 | YAZAKI | RH CONNECTORS/HS CONNECTORS FEMALE SEALED TERMINAL | 0.30 | VERZINNT |
| 7116-4416-02 | YAZAKI | RH CONNECTORS/HS CONNECTORS FEMALE SEALED TERMINAL | 0.35-0.50 | VERZINNT |
| 7703397430 | RENAULT | EINZELADERDICHTUNG/SINGLE WIRE SEAL | ||
| 7703397431 | RENAULT | EINZELADERDICHTUNG/SINGLE WIRE SEAL | ||
| 7703397432 | RENAULT | EINZELADERDICHTUNG/SINGLE WIRE SEAL | ||
| 60994015 | APTIV | EINZELADERDICHTUNG/SINGLE WIRE SEAL HPCS 2.8MM | 0.20-1.00 | |
| 7703697034 | PSA | EINZELADERDICHTUNG/SINGLE WIRE SEAL | ||
| 7703697035 | PSA | SEALING PLUG/ BLINDSTOPFEN DCS 2.8 | ||
| 8200185963 | RENAULT | RH CONNECTORS/HS CONNECTORS FEMALE SEALED TERMINAL | 0.30 | VERZINNT |
| 8200185964 | RENAULT | RH CONNECTORS/HS CONNECTORS SEALED TERMINAL | 0.50 | VERZINNT |
| 8200885966 | MERCEDES-BENZ | EINZELADERDICHTUNG/SINGLE WIRE SEAL HPCS 2.8MM | 1.50-2.50 | |
| F143100 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 1.00-1.30 | VERZINNT |
| F243100 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 1.25-2.00 | VERZINNT |
| F244300 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 0.50-0.75 | VERZINNT |
| RHF-M | SUMITOMO | RH CONNECTORS/HS CONNECTORS TERMINAL | ||
| 54001404 | APTIV | APEX 2.8 FEMALE TERMINAL | 1.50-2.50 | VERZINNT |
| PPI0001045 | APTIV | BLINDSTOPFEN-DUMMY PLUG 0.635MM | ||
| 13774269 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | VERZINNT | |
| 60994007 | APTIV | SEALING PLUG/ BLINDSTOPFEN DCS 2.8 | ||
| 54001807 | APTIV | APEX 2.8 FEMALE TERMINAL | 0.50-1.00 | VERZINNT |
| 10810375 | APTIV | APEX 2.8 FEMALE TERMINAL | 0.50-1.00 | VERZINNT |
| 10819509 | APTIV | RH CONNECTORS/HS CONNECTORS TERMINAL | 0.50 | VERZINNT |
| 13627267 | APTIV | APEX 2.8 FEMALE TERMINAL | 1.50-2.50 | VERZINNT |
| 1400-6031 | SUMITOMO | GTS-2 FEMALE TERMINAL 1.5 | 0.50-0.75 | VERZINNT |
| 1400-6765 | SUMITOMO | APEX 2.8 FEMALE TERMINAL | 1.50-2.50 | VERZINNT |
| 1410-1167 | SUMITOMO | RH CONNECTORS/HS CONNECTORS TERMINAL | ||
| 33121915 | APTIV | 86 WAY DRESS COVER BLACK 90 DEGREE | ||
| 33516197 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | VERZINNT | |
| 10819570 | APTIV | RH CONNECTORS/HS CONNECTORS TERMINAL | ||
| 33512792 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 1.25-2.00 | VERZINNT |
| 240M040 | APTIV | EINZELADERDICHTUNG/SINGLE WIRE SEAL HPCS 2.8MM | 1.50-2.50 | |
| 243653559R | RENAULT | 86 WAY DRESS COVER BLACK 90 DEGREE | ||
| 243469395R | RENAULT | GTS-2 FEMALE TERMINAL 1.5 | 1.00-1.30 | VERZINNT |
| 243464675R | RENAULT | GTS-2 FEMALE TERMINAL 1.5 | 1.25-2.00 | VERZINNT |
| 243463130R | RENAULT | APEX 2.8 FEMALE TERMINAL | 1.50-2.50 | VERZINNT |
| 243454HK2A | NISSAN | 86 WAY DRESS COVER BLACK 90 DEGREE |
| 33302622 | DISASSEMBLING TOOL OF THE 1.5 FEMALE TERMINALS |
|---|---|
| 33302623 | DISASSEMBLING TOOL OF THE 2.8 FEMALE TERMINALS |
| 33302624 | DISASSEMBLING TOOL OF THE 0.64 FEMALE TERMINAL |
| 33302625 | DISASSEMBLING TOOL OF THE MODULES |
| 35342870 | APTIV TPA OPENING TOOL |
| 65906200 | 1.5 AND 2.8 PLUG INSERTION TOOL |
