| Hersteller: | APTIV |
|---|---|
| Hersteller-Nr.: | 33295932 |

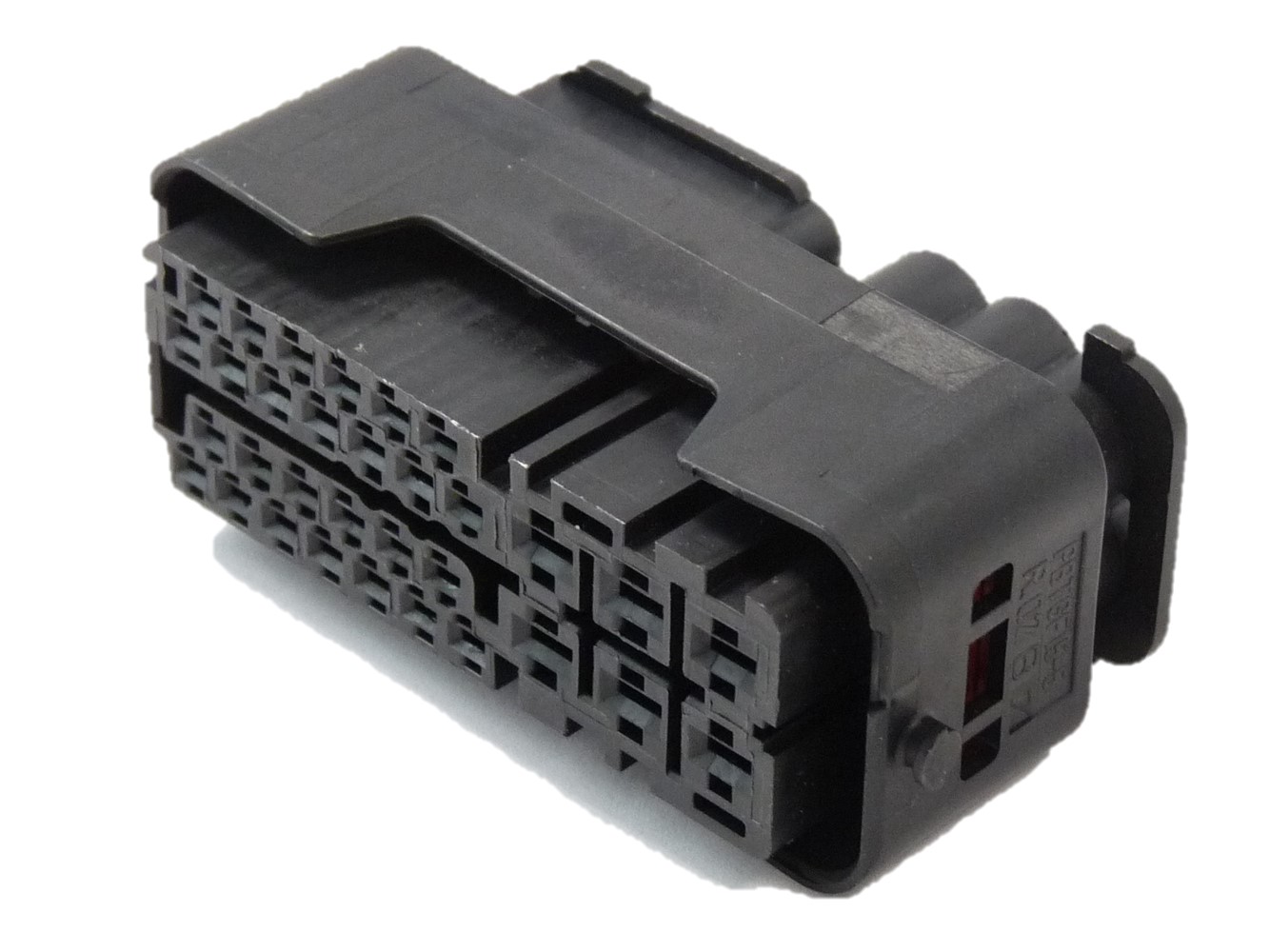

| Beschreibung: | CTS 150/DCK 2.8 FEMALE 32 WAY SEALED CONNECTOR |
| Poligkeit: | 32 |
| Gedichtet: | nein |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 65-2-15 |
|---|
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
G215 | 6 × Tyco/AMP MCP 2.8 female terminal | 2.80 x 0.80 |
G305 | 26 × Yazaki YES/YESC Kaizen Connector 0.64 female terminal | 0.80 x 0.64 |
F425 | 1 × secondary lock | |
G188 | 1 × Verriegler Sekundärsicherung; closing tool secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 15493009 | APTIV | CTS 1.5 FEMALE TERMINAL | 1.00-1.50 | VERGOLDET |
| 60013631 | APTIV | DCK 2.8MM FEMALE TERMINAL | 0.50-1.00 | VERZINNT |
| 60013751 | APTIV | DCK 2.8MM FEMALE TERMINAL | 2.50-4.00 | VERZINNT |
| 60013744 | APTIV | DCS-2 FEMALE 2.8 TERMINAL | 1.00-2.50 | VERSILBERT |
| 60013741 | APTIV | DCK 2.8MM FEMALE TERMINAL | 1.00-2.50 | VERZINNT |
| 60013734 | APTIV | DCS-2 FEMALE 2.8 TERMINAL | 0.50-1.00 | VERSILBERT |
| 60013731 | APTIV | DCS-2 FEMALE 2.8 TERMINAL | 0.50-1.00 | VERZINNT |
| 60013714 | APTIV | DCS-2 FEMALE 2.8 TERMINAL | 0.20-0.35 | VERSILBERT |
| 60013641 | APTIV | DCK 2.8MM FEMALE TERMINAL | 1.00-2.50 | VERZINNT |
| 60013611 | APTIV | DCK 2.8MM FEMALE TERMINAL | 0.20-0.35 | VERZINNT |
| 15432212 | APTIV | CTS 1.5 FEMALE SEALED TERMINAL | 1.00-1.50 | VERZINNT |
| 15493007 | APTIV | CTS 1.5 FEMALE TERMINAL | 0.50-1.00 | VERGOLDET |
| 15432210 | APTIV | CTS 1.5 FEMALE SEALED TERMINAL | 0.50-1.00 | VERZINNT |
| 15432233 | APTIV | CTS 1.5 FEMALE TERMINAL | 1.00-1.50 | VERZINNT |
| 15432235 | APTIV | CTS 1.5 FEMALE TERMINAL | 0.50-1.00 | VERZINNT |
| 15432237 | APTIV | CTS 1.5 FEMALE TERMINAL | 0.22-0.35 | VERZINNT |
| 15493005 | APTIV | CTS 1.5 FEMALE TERMINAL | 0.22-0.35 | VERGOLDET |
| 60013711 | APTIV | DCK 2.8MM FEMALE TERMINAL | 0.20-0.35 | VERZINNT |
| 15493001 | APTIV | CTS 1.5 FEMALE SEALED TERMINAL | 0.50-1.00 | VERGOLDET |
| 15432208 | APTIV | CTS 1.5 FEMALE SEALED TERMINAL | 0.22-0.35 | VERZINNT |
| 15493003 | APTIV | CTS 1.5 FEMALE SEALED TERMINAL | 1.00-1.50 | VERGOLDET |
| 15492999 | APTIV | CTS 1.5 FEMALE SEALED TERMINAL | 0.22-0.35 | VERGOLDET |
| 33400990 | APTIV | LOCK SECONDARY |
