Item 1 of 1
| Hersteller: | MOLEX |
|---|---|
| Hersteller-Nr.: | 34853-1102 |

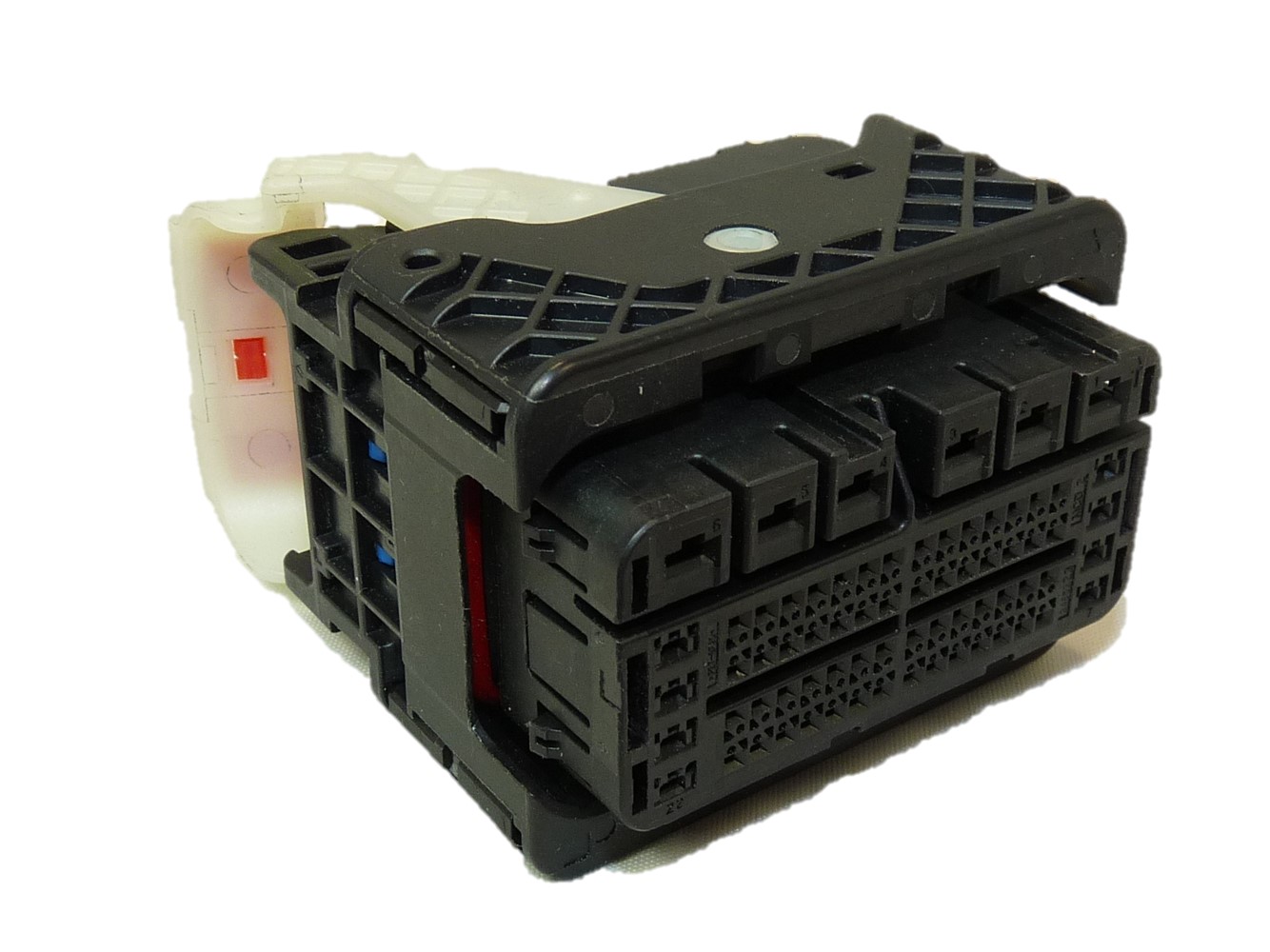

| Beschreibung: | CMX/CTX64/CTX150/CTX280 FEMALE CONNECTOR 70 WAY 55 USABLE SEALED CONNECTOR |
| Poligkeit: | 70 |
| Gedichtet: | nein |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 85-2-07 |
|---|---|
| Serie: | CMX CONNECTORS |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F450 | 2 × Molex CTX280 female terminal | |
G181 | 16 × Molex CTX150 female terminal | 1.50 x 0.63 |
F673 | 62 × Molex CTX64 Female terminal | 0.64 x 0.64 |
S3430 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 98675-1063 | MOLEX | CTX280 FEMALE TERMINAL | 2.50-3.00 | VERSILBERT |
| 502307-3008 | MOLEX | CTX150 FEMALE TERMINAL | 1.50 | VERSILBERT |
| 98675-1064 | MOLEX | CTX280 FEMALE TERMINAL | 4.00-5.00 | VERSILBERT |
| 98675-1062 | MOLEX | CTX280 FEMALE TERMINAL | 1.50-2.50 | VERSILBERT |
| 98675-1061 | MOLEX | CTX280 FEMALE TERMINAL | 0.50-1.00 | VERSILBERT |
| 60110641 | APTIV | DCS 2.8 MALE TERMINAL | 1.00-2.50 | VERZINNT |
| 60110631 | APTIV | DCS 2.8 MALE TERMINAL | 0.50-1.00 | VERZINNT |
| 60110611 | APTIV | DCS 2.8 MALE TERMINAL | 0.22-0.35 | VERZINNT |
| 13943933 | APTIV | CTS 280 FEMALE UNSEALED TERMINAL | 3.00-4.00 | VERZINNT |
| 502307-3007 | MOLEX | CTX150 FEMALE TERMINAL | 0.75-1.00 | VERSILBERT |
| 15457847 | APTIV | CTS 280 FEMALE UNSEALED TERMINAL | 0.35 | VERZINNT |
| 15457848 | APTIV | CTS 280 FEMALE UNSEALED TERMINAL | 0.50-1.00 | VERZINNT |
| 15457849 | APTIV | CTS 280 FEMALE UNSEALED TERMINAL | 1.50-2.50 | VERZINNT |
| 33401022 | APTIV | DCS-2 MALE 2.8 TERMINAL | 4.00 | |
| 34970-5303 | MOLEX | CTX64 FEMALE UNSEALED TERMINAL | 0.22-0.35 | VERSILBERT |
| 34970-5305 | MOLEX | CTX64 FEMALE UNSEALED TERMINAL | 0.50-0.85 | VERSILBERT |
| 502307-3006 | MOLEX | CTX150 FEMALE TERMINAL | 0.35-0.50 | VERSILBERT |
| 9813212580 | RENAULT | CTS 280 FEMALE UNSEALED TERMINAL | 3.00-4.00 | VERZINNT |
| 9813216380 | PSA | DCS-2 MALE 2.8 TERMINAL | 4.00 | |
| 9813216280 | PSA | DCS 2.8 MALE TERMINAL | 1.00-2.50 | VERZINNT |
| 9813216180 | PSA | DCS 2.8 MALE TERMINAL | 0.50-1.00 | VERZINNT |
| 9813216080 | PSA | DCS 2.8 MALE TERMINAL | 0.22-0.35 | VERZINNT |
| 9813212480 | RENAULT | CTS 280 FEMALE UNSEALED TERMINAL | 1.50-2.50 | VERZINNT |
| 9813212380 | RENAULT | CTS 280 FEMALE UNSEALED TERMINAL | 0.50-1.00 | VERZINNT |
| 9813212280 | RENAULT | CTS 280 FEMALE UNSEALED TERMINAL | 0.35 | VERZINNT |
| 63812-0900 | MOLEX INSERTION HELP SEAL PLUG 280 |
|---|---|
| 63812-1300 | MOLEX INSERTION TOOL FOR CTX280 SEAL PLUGS |
| 63813-9800 | MOLEX REMOVAL TOOL FOR CTX150 TERMINALS |
| 63824-1300 | MOLEX REMOVAL TOOL FOR CTX280 TERMINALS |
| 63824-3900 | MOLEX LOCKING AND UNLOCKING TOOL TPA FOR 70 WAY CMX OR EURO6 CONNECTORS |
| 63824-4000 | MOLEX EXTRACTION TOOL SECONDARY LOCKS IN 120 WAY CONNECTOR |
| 63824-4800 | MOLEX REMOVAL TOOL FOR CTX64 TERMINALS |
| 63824-5400 | MOLEX REMOVAL TOOL FOR CTX280 TERMINALS |
| 63824-6500 | MOLEX UNLOCKING TOOL TPA FOR 70 WAY CMX OR EURO6 CONNECTORS |
