| Hersteller: | MOLEX |
|---|---|
| Hersteller-Nr.: | 34867-2001 |

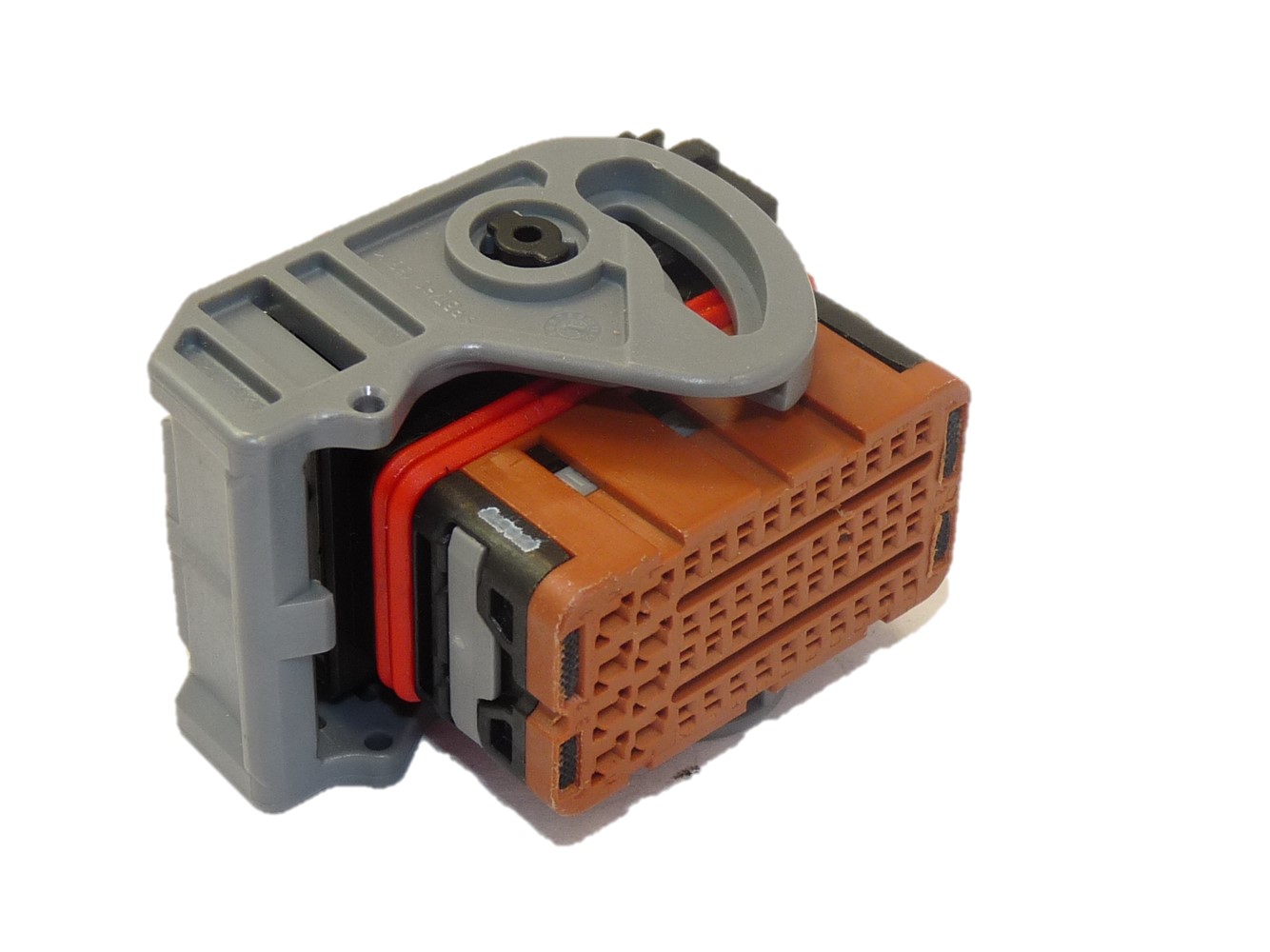

| Beschreibung: | CTX64/CTX150 FEMALE 48 WAY SEALED CMX CONNECTOR |
| Poligkeit: | 48 |
| Gedichtet: | nein |
| Farbe: | GREY |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 12-2-16 |
|---|---|
| Serie: | CMX CONNECTORS |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F597 | 40 × Tyco/AMP Micro Power Quadlock 0.63 (MQS 0.63) female terminal | 0.63 x 0.63 |
G305 | 8 × Molex 1.50mm CMC CP Female Terminal | Ø 2.50 |
F425 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 34864-0413 | MOLEX | CTX150 FEMALE TERMINAL | 1.25-2.00 | VERZINNT |
| 928999-1 | TE CONNECTIVITY | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL | 0.20-0.35 | VERZINNT |
| 963715-1 | TE CONNECTIVITY | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL | 0.50-0.75 | VERZINNT |
| 34869-1010 | MOLEX | CTX64 SEAL PLUG | ||
| 34864-0411 | MOLEX | CTX150 FEMALE TERMINAL | 0.35-0.50 | VERZINNT |
| 34863-0412 | MOLEX | CTX64 FEMALE TERMINAL | 0.50-0.75 | VERZINNT |
| 34863-0411 | MOLEX | CTX64 FEMALE TERMINAL | 0.22-0.35 | VERGOLDET |
| 2420449CB281H | CINCH | CMC CP 1.5 FEMALE SEALED TERMINAL | 1.50 | VERZINNT |
| 34864-0412 | MOLEX | CTX150 FEMALE TERMINAL | 0.75-1.00 | VERZINNT |
| 34869-1023 | MOLEX | CTX150 SEAL PLUG | ||
| 98915-1019 | MOLEX | CMC CP 1.5 FEMALE SEALED TERMINAL | 0.75-1.00 | |
| 98915-1319 | MOLEX | CMC CP 1.5 FEMALE SEALED TERMINAL | 0.50-1.00 | VERGOLDET |
| 986581222 | MOLEX | MOX 0.635 FEMALE UNSEALED TERMINAL | 0.75 | VERGOLDET |
| 986581223 | MOLEX | MOX 0.635 FEMALE UNSEALED TERMINAL | 0.22-0.50 | VERGOLDET |
| 986581231 | MOLEX | MOX 0.635 FEMALE UNSEALED TERMINAL | 0.22-0.60 | VERGOLDET |
| 986581232 | MOLEX | MOX 0.635 FEMALE UNSEALED TERMINAL | 0.75 | VERGOLDET |
| 986581233 | MOLEX | MOX 0.635 FEMALE UNSEALED TERMINAL | 0.22-0.50 | VERGOLDET |
| 98915-1013 | MOLEX | CMC CP 1.5 FEMALE SEALED TERMINAL | ||
| 98915-1039 | MOLEX | CMC CP 1.5 FEMALE SEALED TERMINAL | 1.00-2.00 | VERZINNT |
| 986581221 | MOLEX | MOX 0.635 FEMALE UNSEALED TERMINAL | 0.22-0.60 | VERGOLDET |
| 98915-1029 | MOLEX | CMC CP 1.5 FEMALE SEALED TERMINAL | 0.50-1.00 | VERZINNT |
| 986581213 | MOLEX | MOX 0.635 FEMALE UNSEALED TERMINAL | 0.22-0.50 | VERZINNT |
| 98915-1219 | MOLEX | CMC CP 1.5 FEMALE SEALED TERMINAL | 1.00-2.00 | VERGOLDET |
| 13580635 | APTIV | MTS 0.64 FEMALE UNSEALED TERMINAL | 0.50-0.75 | VERZINNT |
| 98658-1211 | MOLEX | MOX 0.635 FEMALE UNSEALED TERMINAL | 0.22-0.60 | VERZINNT |
| 986581212 | MOLEX | MOX 0.635 FEMALE UNSEALED TERMINAL | 0.75 | VERZINNT |
| DU5T-10C930-GA | FORD | CTX64 SEAL PLUG | ||
| DU5T-10C930-HA | FORD | CTX150 SEAL PLUG | ||
| DU5T-14474-EA | FORD | CTX64 FEMALE TERMINAL | 0.22-0.35 | VERGOLDET |
| DU5T-14474-FA | FORD | CTX64 FEMALE TERMINAL | 0.50-0.75 | VERZINNT |
| DU5T-14474-GA | FORD | CTX150 FEMALE TERMINAL | 0.35-0.50 | VERZINNT |
| DU5T-14474-JA | FORD | CTX150 FEMALE TERMINAL | 1.25-2.00 | VERZINNT |
| DU5T-14474-HA | FORD | CTX150 FEMALE TERMINAL | 0.75-1.00 | VERZINNT |
| 1M5T-14474-AA | FORD | CMC CP 1.5 FEMALE SEALED TERMINAL | 0.75-1.00 | |
| 96AG-14474-RSA | FORD | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL | 0.20-0.35 | VERZINNT |
| 96AG-14474-RZA | FORD | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL | VERZINNT | |
| 2131300330 | SY (SIEMENS-YAZAKI) | UNKNOWN | ||
| 320264716 | LEAR | YES CONNECTOR 1.5(060) FEMALE UNSEALED TERMINAL | 0.22-0.50 | VERZINNT |
| 320264708 | LEAR | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL | 0.50-0.75 | VERZINNT |
| 3202517K1 | LEAR | CMC CP 1.5 FEMALE SEALED TERMINAL | 0.75-1.00 | |
| 7196-0461-02 | YAZAKI | CTX64 FEMALE UNSEALED TERMINAL | ||
| 2132001670 | SY (SIEMENS-YAZAKI) | UNKNOWN | ||
| 64322-1239 | MOLEX | CP 0.6 FEMALE TERMINAL | 0.50 | VERGOLDET |
| 64323-1319 | MOLEX | CMC CP 1.5 FEMALE SEALED TERMINAL | 0.50-1.00 | VERGOLDET |
| 64323-1219 | MOLEX | CMC CP 1.5 FEMALE SEALED TERMINAL | 1.00-2.00 | VERGOLDET |
| 64323-1039 | MOLEX | CMC CP 1.5 FEMALE SEALED TERMINAL | 1.00-2.00 | VERZINNT |
| 64323-1029 | MOLEX | CMC CP 1.5 FEMALE SEALED TERMINAL | 0.50-1.00 | VERZINNT |
| 64322-1359 | MOLEX | CP 0.6 FEMALE TERMINAL | 0.50 | VERGOLDET |
| 64322-1349 | MOLEX | CP 0.6 FEMALE TERMINAL | 0.35 | VERGOLDET |
| 64322-1339 | MOLEX | CP 0.6 FEMALE TERMINAL | 0.82 | VERGOLDET |
| 64322-1329 | MOLEX | CP 0.6 FEMALE TERMINAL | 0.35 | VERZINNT |
| 64322-1319 | MOLEX | CP 0.6 FEMALE TERMINAL | 0.82 | VERGOLDET |
| 64322-1229 | MOLEX | CP 0.6 FEMALE TERMINAL | 0.35 | VERGOLDET |
| 64322-1019 | MOLEX | CP 0.6 FEMALE TERMINAL | 0.35 | VERZINNT |
| 64322-1029 | MOLEX | CP 0.6 FEMALE TERMINAL | 0.75 | VERZINNT |
| 64322-1039 | MOLEX | CP 0.6 FEMALE TERMINAL | 0.50 | VERZINNT |
| 64322-1219 | MOLEX | CP 0.6 FEMALE TERMINAL | 0.75 | VERGOLDET |
| 63813-8200 | MOLEX EXTRACTION TOOL FOR TPA 48 CIRCUITS |
|---|---|
| 63813-9800 | MOLEX EXTRACTION TOOL FOR CLIP CTX 150 |
| 63824-0900 | MOLEX EXTRACTION TOOL FOR CLIP CTX 64 |
| 63824-1300 | MOLEX EXTRACTION TOOL FOR CLIP CTX 280 |
