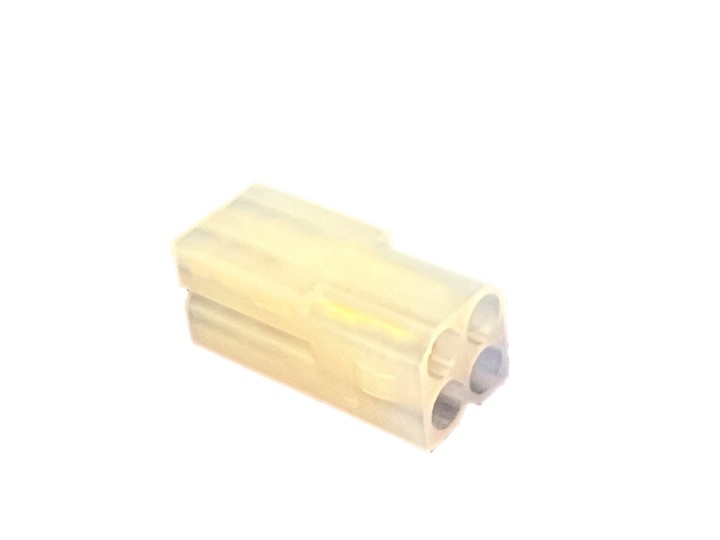

2.36MM (.093) PIN AND SOCKET FEMALE (RECEPTACLE) 4 WAY CONNECTOR

  1. https://www.t-g-s.de/images/housings/80-1-29.jpg
Item 1 of 1
Hersteller:MOLEX
Hersteller-Nr.:469990653
Beschreibung:2.36MM (.093) PIN AND SOCKET FEMALE (RECEPTACLE) 4 WAY CONNECTOR
Poligkeit:4
Gedichtet:ja
Gehäuse­sicherung/Sekundär­verriegelung:nein
TGS Gehäuse-ID: 80-1-29
Serie: STANDARD .093" PIN AND SOCKET CONNECTORS
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

R786

4 × Molex 2.36mm diameter, standard .093" SocketØ 2.36
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
02096100MOLEX2.36MM DIAMETER. STANDARD .093" PIN0.50-2.00VERGOLDET
02095142MOLEX2.36MM DIAMETER. STANDARD .093" SOCKET0.50-2.00
02098108MOLEX2.36MM DIAMETER. STANDARD .093" PIN0.80-2.00VERZINNT
02098103MOLEX2.36MM DIAMETER. STANDARD .093" PIN0.50-2.00VERGOLDET
02096123MOLEX2.36MM DIAMETER. STANDARD .093" PIN0.50-2.00VERGOLDET
02096122MOLEX2.36MM DIAMETER. STANDARD .093" PIN0.50-2.00VERGOLDET
02095106MOLEX2.36MM DIAMETER. STANDARD .093" SOCKET0.50-2.00VERGOLDET
02091102MOLEX2.36MM DIAMETER. STANDARD .093" SOCKET0.50-2.00VERZINNT
02095100MOLEX2.36MM DIAMETER. STANDARD .093" SOCKET0.50-2.00VERGOLDET
02091119MOLEX2.36MM DIAMETER. STANDARD .093" SOCKET0.50-2.00
02091117MOLEX2.36MM DIAMETER. STANDARD .093" SOCKET0.50-2.00
02091104MOLEX2.36MM DIAMETER. STANDARD .093" SOCKET0.50-2.00VERZINNT
02096106MOLEX2.36MM DIAMETER. STANDARD .093" PIN0.50-2.00VERGOLDET
