Item 1 of 1

Hersteller:	SUMITOMO
Hersteller-Nr.:	6180-2402

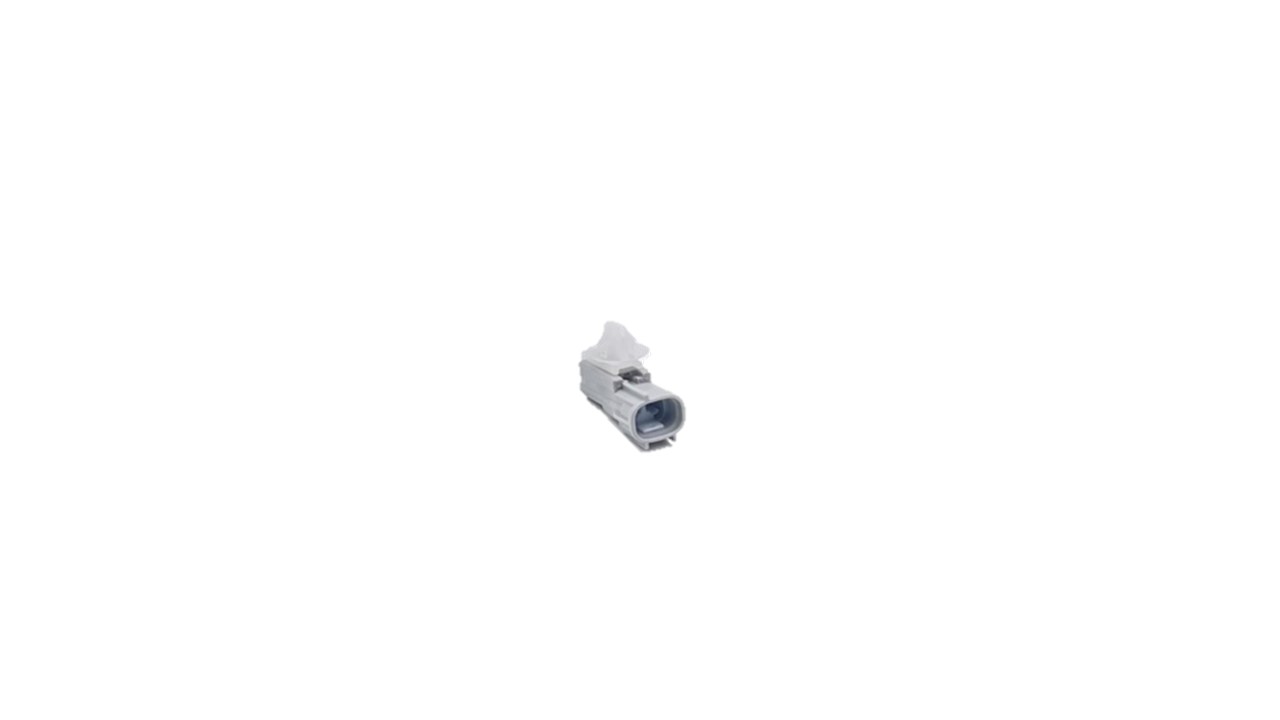

Beschreibung:	MT 2.3(090) SERIES MALE 2 WAY SEALED CONNECTOR
Poligkeit:	2
Gedichtet:	nein
Gehäusesicherung/Sekundärverriegelung:	ja

TGS Gehäuse-ID:	82-1-20
Serie:	MT SEALED SERIES (090 CONNECTOR)

Entriegelungswerkzeuge:	Bestückte Kontakte:	Flachsteckermass:
F417	2 × Sumitomo DS/MT/HD/HM/HW series 2.3mm(090) male terminal	2.30 x 0.64
F460	1 × secondary lock

Teile-Nummer	Hersteller	Beschreibung	Kabelquadrat	Oberfläche
7165-0395	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	0.50-1.25
8100-1008	SUMITOMO	TS SERIES 2.3(090) MALE SEALED TERMINAL	2.00	VERGOLDET
8100-1007	SUMITOMO	TS SERIES 2.3(090) MALE SEALED TERMINAL	0.50-1.25	VERGOLDET
8100-0459	SUMITOMO	TS SERIES 2.3(090) MALE SEALED TERMINAL	2.00	VERZINNT
8100-0458	SUMITOMO	TS SERIES 2.3(090) MALE SEALED TERMINAL	0.50-1.25	VERZINNT
8100-0457	SUMITOMO	TS SERIES 2.3(090) MALE SEALED TERMINAL	0.30-0.50	VERZINNT
7165-0842	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	0.35-0.50
8100-1340	SUMITOMO	TS SERIES 2.3(090) MALE SEALED TERMINAL	0.30-0.50	VERGOLDET
7165-0349	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	0.30-1.25
7165-0344	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	1.25-2.00
7165-0343	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	0.50-1.25
7165-0342	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	0.30-1.25
7165-0076	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL
7161-9787	SUMITOMO	HX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
7160-8234	SUMITOMO	TS/SL/MT/HM 2.3(090) SERIES SINGLE WIRE SEAL	0.50-1.25
7165-0351	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	1.25-2.00
7160-9465	SUMITOMO	DUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
8230-4272	GENERAL MOTORS	MT/DS/HD/HM 2.3(090) SERIES MALE UNSEALED TERMINAL	0.20-0.50	VERZINNT
8230-4419	GENERAL MOTORS	MT/DS/HD/HM 2.3(090) SERIES MALE UNSEALED TERMINAL	0.20-0.50	VERGOLDET
8230-4408	SUMITOMO	MT 2.3(090) SERIES MALE SEALED TERMINAL	2.00	VERZINNT
8230-4282	SUMITOMO	MT/DS/HD/HM 2.3(090) SERIES MALE UNSEALED TERMINAL	0.50-1.25	VERZINNT
1500-0105	SUMITOMO	TS/DL/MT/HM/HW SERIES 2.3(090) MALE SEALED TERMINAL	0.30-1.25	VERZINNT
8230-4392	SUMITOMO	MT/DS/HD/HM 2.3(090) SERIES MALE UNSEALED TERMINAL	2.00	VERZINNT
8230-4492	SUMITOMO	TS SERIES 2.3(090) MALE UNSEALED TERMINAL	0.30-0.50	VERZINNT
7114-4027	YAZAKI	2.3II(090II) MALE SEALED TERMINAL	2.00	VERZINNT
7114-4026	YAZAKI	2.3II(090II) MALE SEALED TERMINAL	0.80-1.25	VERZINNT
90980-09152	TOYOTA	DUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
82998-12450	TOYOTA	2.3(090) MALE SEALED TERMINAL WITH WIRE		VERGOLDET
82998-12430	TOYOTA	2.3(090) MALE SEALED TERMINAL WITH 160MM WIRE		VERZINNT
