Hersteller:	SUMITOMO
Hersteller-Nr.:	6189-0098

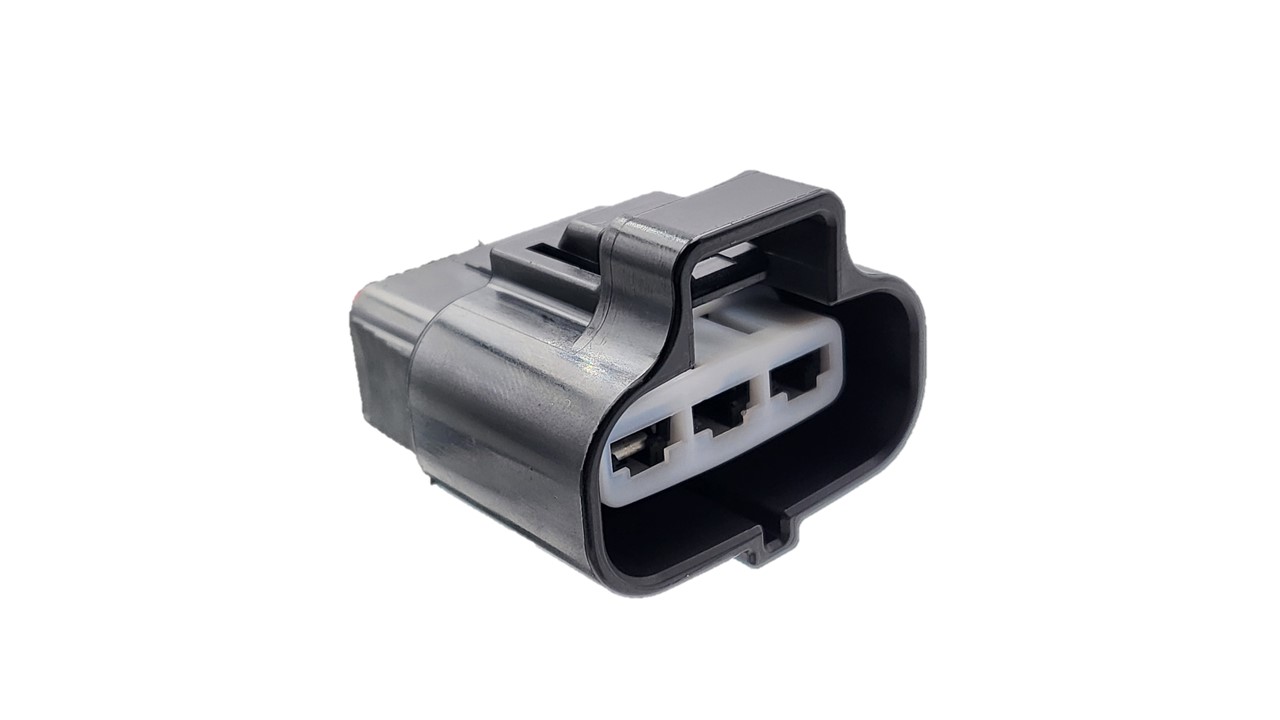

Beschreibung:	TS SERIES 4.8(187) FEMALE 3 WAY SEALED CONNECTOR
Poligkeit:	3
Gedichtet:	nein
Gehäusesicherung/Sekundärverriegelung:	ja

TGS Gehäuse-ID:	82-1-26
Serie:	TS SERIES (187 CONNECTOR)

Entriegelungswerkzeuge:	Bestückte Kontakte:	Flachsteckermass:
F417	3 × Sumitomo TS/HX/DL 4.8mm(187) female terminal	4.80 x 0.80
F460	1 × secondary lock

Teile-Nummer	Hersteller	Beschreibung	Kabelquadrat	Oberfläche
8100-0468	SUMITOMO	TS/HX/DL SERIES 4.8(187) FEMALE SEALED TERMINAL	2.00-3.00	VERZINNT
8100-0466	SUMITOMO	TS SERIES 4.8(187) FEMALE SEALED TERMINAL	0.30-0.50	VERZINNT
8240-4922	SUMITOMO	TS/DL SERIES 4.8(187) FEMALE UNSEALED TERMINAL	0.50-1.25	VERZINNT
8240-4932	SUMITOMO	TS/DL SERIES 4.8(187) FEMALE UNSEALED TERMINAL	2.00-3.00	VERZINNT
8240-4912	SUMITOMO	TS/DL SERIES 4.8(187) FEMALE UNSEALED TERMINAL	0.30-0.50	VERZINNT
8100-1555	SUMITOMO	TS/DL SERIES 4.8(187) FEMALE UNSEALED TERMINAL	2.00-3.00	VERZINNT
8100-0467	SUMITOMO	TS SERIES 4.8(187) FEMALE SEALED TERMINAL	0.50-1.25	VERZINNT
7165-0145	SUMITOMO	TS/HX/DL SERIES 4.8(187) DUMMY PLUG
7116-4036	YAZAKI	4.8(187) FEMALE SEALED TERMINAL	0.50-1.25	BLANK
7116-4037	YAZAKI	4.8(187) FEMALE SEALED TERMINAL	2.00-3.00	VERZINNT
7116-4035	YAZAKI	4.8(187) FEMALE SEALED TERMINAL	0.30-0.50	VERZINNT
7165-0395	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	0.50-1.25
8100-0462	SUMITOMO	TS 2.3(090) SERIES FEMALE SEALED TERMINAL	2.00	VERZINNT
90980-09325	TOYOTA	4.8 SEALED CONNECTOR BLIND PLUG
82998-12480	TOYOTA	4.8(187) FEMALE SEALED TERMINAL WITH 160MM WIRE	0.20-0.60	VERZINNT
8100-1344	SUMITOMO	TS 2.3(090) SERIES FEMALE SEALED TERMINAL	0.30-0.50	VERGOLDET
8100-0594	SUMITOMO	TS 2.3(090) SERIES FEMALE SEALED TERMINAL	0.50-1.25	VERGOLDET
8100-0461	SUMITOMO	TS 2.3(090) SERIES FEMALE SEALED TERMINAL	0.50-1.25	VERZINNT
8100-0460	SUMITOMO	TS 2.3(090) SERIES FEMALE SEALED TERMINAL	0.30-0.50	VERZINNT
7165-0842	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	0.35-0.50
7165-0076	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL
8100-0817	SUMITOMO	TS 2.3(090) SERIES FEMALE SEALED TERMINAL	2.00	VERGOLDET
7165-0351	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	1.25-2.00
7161-9787	SUMITOMO	HX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
7165-0342	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	0.30-1.25
7160-8234	SUMITOMO	TS/SL/MT/HM 2.3(090) SERIES SINGLE WIRE SEAL	0.50-1.25
7165-0343	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	0.50-1.25
7165-0344	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	1.25-2.00
7165-0349	SUMITOMO	TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL	0.30-1.25
7160-9465	SUMITOMO	DUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
