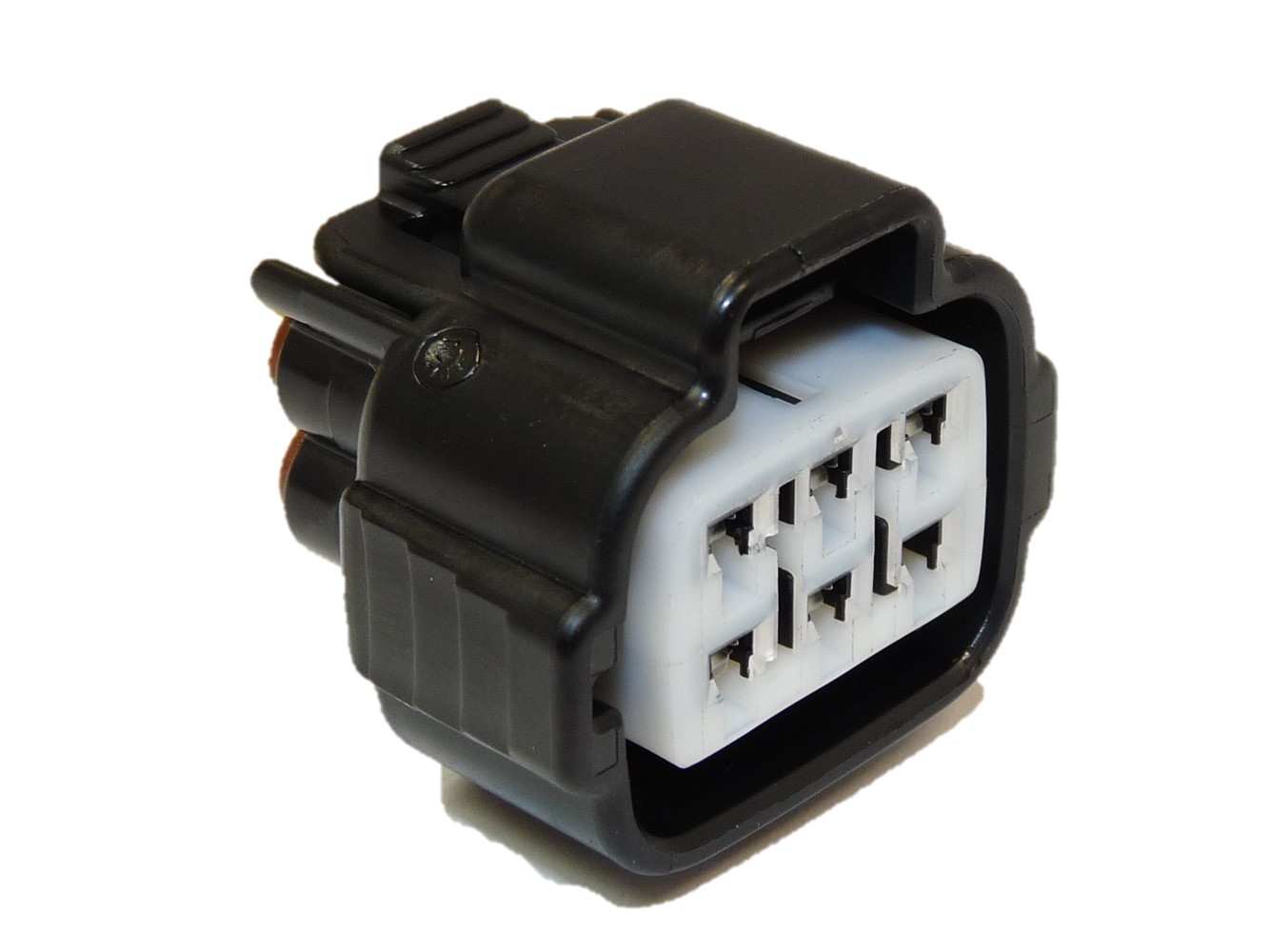

TS 2.3(090) SERIES FEMALE 6 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/26-1-32.jpg
Item 1 of 1
Hersteller:SUMITOMO
Hersteller-Nr.:6189-0332
Beschreibung:TS 2.3(090) SERIES FEMALE 6 WAY SEALED CONNECTOR
Poligkeit:6
Gedichtet:nein
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 26-1-32
Serie: TS SEALED SERIES (090 CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F417

6 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed2.30 x 0.64

F425

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
8100-0460SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERZINNT
8100-0461SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERZINNT
7165-0351SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
8100-0462SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERZINNT
8100-0594SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERGOLDET
8100-1344SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
7165-0842SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.35-0.50
7165-0395SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
7165-0344SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
7165-0343SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
7165-0342SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7165-0076SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL
7161-9787SUMITOMOHX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
7160-9465SUMITOMODUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
7160-8234SUMITOMOTS/SL/MT/HM 2.3(090) SERIES SINGLE WIRE SEAL0.50-1.25
7165-0349SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
8100-0817SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERGOLDET
8100-1346SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.30-0.50VERGOLDET
8240-4942SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL2.00VERZINNT
8240-4242SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINALVERZINNT
7116-5046-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
7116-5045-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
7116-5044-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
82998-12590TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIREVERGOLDET
90980-09A94TOYOTABLIND PLUG
90980-09152TOYOTADUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
82999-52010TOYOTATERMINAL
82998-52120TOYOTA2.3 II FEMALE TERMINAL WITH WIRE
82998-24410TOYOTATS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-12800TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-12460TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE0.20-0.60VERGOLDET
82998-24400TOYOTATS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-12440TOYOTA2.3(090) FEMALE SEALED TERMINAL WITH 160MM WIRE0.20-0.60VERZINNT
82999-12030TOYOTAWIRE SEAL1.25
82999-12020TOYOTAWIRE SEAL1.25
