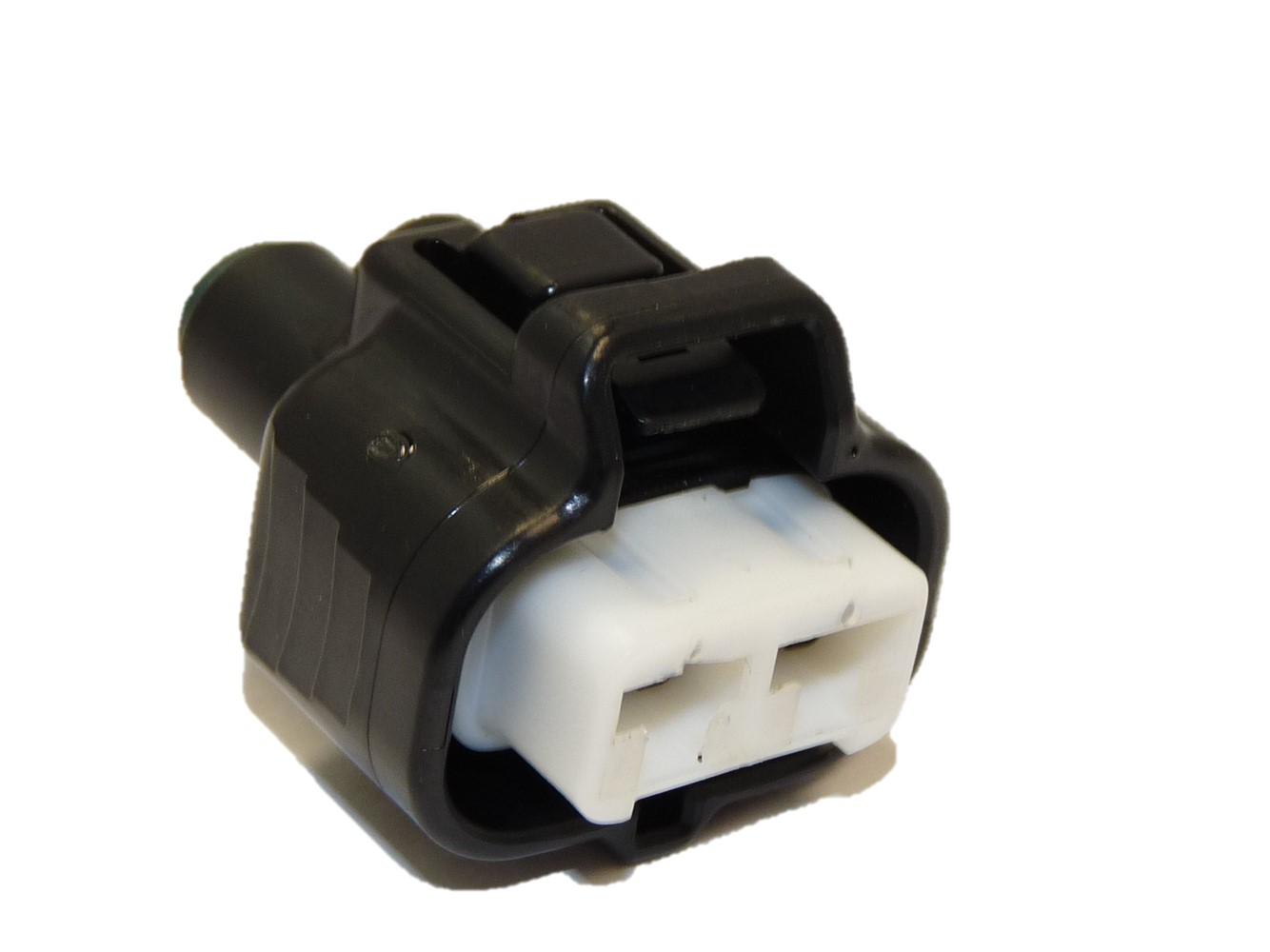

TS SERIES 4.8(187) FEMALE 2 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/20-2-39.jpg
Item 1 of 1
Hersteller:SUMITOMO
Hersteller-Nr.:6189-0482
Beschreibung:TS SERIES 4.8(187) FEMALE 2 WAY SEALED CONNECTOR
Poligkeit:2
Gedichtet:nein
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 20-2-39
Serie: TS SERIES (187 CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F450

2 × Sumitomo TS/HX/DL 4.8mm(187) female terminal4.80 x 0.80

F560

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
8100-0468SUMITOMOTS/HX/DL SERIES 4.8(187) FEMALE SEALED TERMINAL2.00-3.00VERZINNT
8240-4922SUMITOMOTS/DL SERIES 4.8(187) FEMALE UNSEALED TERMINAL0.50-1.25VERZINNT
8240-4912SUMITOMOTS/DL SERIES 4.8(187) FEMALE UNSEALED TERMINAL0.30-0.50VERZINNT
8240-4882SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.30-0.50VERZINNT
8100-1555SUMITOMOTS/DL SERIES 4.8(187) FEMALE UNSEALED TERMINAL2.00-3.00VERZINNT
8100-0467SUMITOMOTS SERIES 4.8(187) FEMALE SEALED TERMINAL0.50-1.25VERZINNT
8100-0466SUMITOMOTS SERIES 4.8(187) FEMALE SEALED TERMINAL0.30-0.50VERZINNT
7165-0145SUMITOMOTS/HX/DL SERIES 4.8(187) DUMMY PLUG
8240-4932SUMITOMOTS/DL SERIES 4.8(187) FEMALE UNSEALED TERMINAL2.00-3.00VERZINNT
8240-4252SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL
8240-4242SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINALVERZINNT
90980-09325TOYOTA4.8 SEALED CONNECTOR BLIND PLUG
82998-12480TOYOTA4.8(187) FEMALE SEALED TERMINAL WITH 160MM WIRE0.20-0.60VERZINNT
