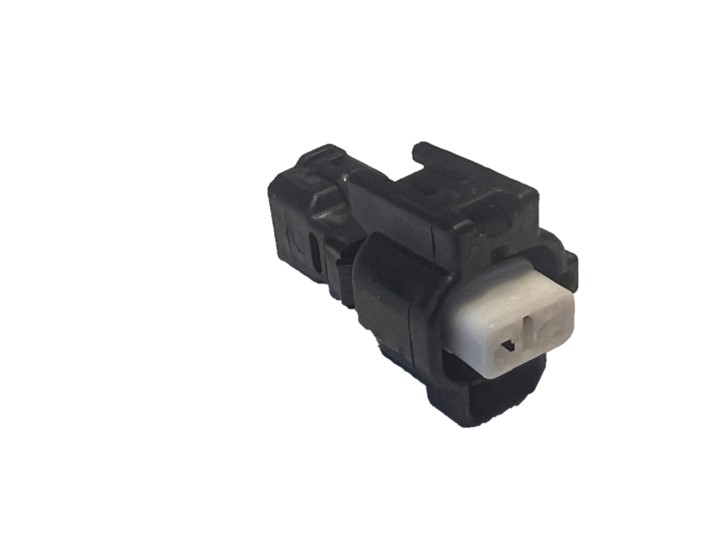

TS 2.3(090) SERIES FEMALE 2 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/90-1-17.jpg
Item 1 of 1
Hersteller:SUMITOMO
Hersteller-Nr.:6189-0683
Beschreibung:TS 2.3(090) SERIES FEMALE 2 WAY SEALED CONNECTOR
Poligkeit:2
Gedichtet:nein
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 90-1-17
Serie: TS SEALED SERIES (090 CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F595

1 × Yazaki 2.3 II (090 II) female terminal2.30 x 0.64

F460

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
7165-0395SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
8100-1344SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
8100-0460SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERZINNT
8100-0461SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERZINNT
8100-0462SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERZINNT
8100-0594SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERGOLDET
7165-0351SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
8100-0817SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERGOLDET
7160-8234SUMITOMOTS/SL/MT/HM 2.3(090) SERIES SINGLE WIRE SEAL0.50-1.25
7165-0842SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.35-0.50
7160-9465SUMITOMODUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
7161-9787SUMITOMOHX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
7165-0076SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL
7165-0342SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7165-0343SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
7165-0344SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
7165-0349SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
