| Hersteller: | SUMITOMO |
|---|---|
| Hersteller-Nr.: | 61890175 |

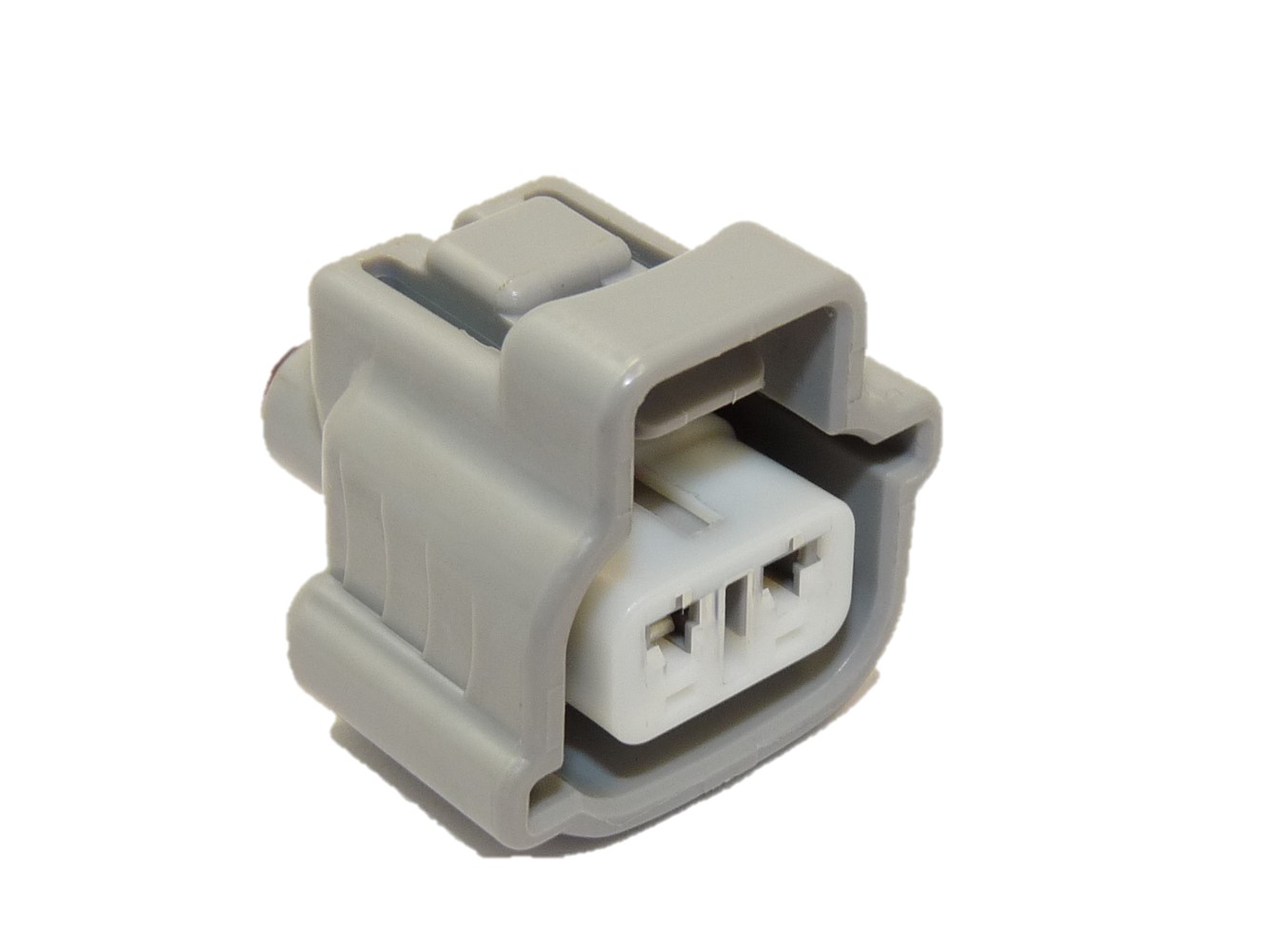

| Beschreibung: | TS 2.3(090) SERIES II FEMALE 2 WAY SEALED CONNECTOR |
| Poligkeit: | 2 |
| Gedichtet: | nein |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 26-2-05 |
|---|---|
| Serie: | TS SEALED SERIES (090 CONNECTOR) |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F417 | 2 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed | 2.30 x 0.64 |
F460 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 8240-4882 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 0.30-0.50 | VERZINNT |
| 8100-0462 | SUMITOMO | TS 2.3(090) SERIES FEMALE SEALED TERMINAL | 2.00 | VERZINNT |
| 8100-0594 | SUMITOMO | TS 2.3(090) SERIES FEMALE SEALED TERMINAL | 0.50-1.25 | VERGOLDET |
| 8100-0817 | SUMITOMO | TS 2.3(090) SERIES FEMALE SEALED TERMINAL | 2.00 | VERGOLDET |
| 8100-1344 | SUMITOMO | TS 2.3(090) SERIES FEMALE SEALED TERMINAL | 0.30-0.50 | VERGOLDET |
| 8100-1346 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 0.30-0.50 | VERGOLDET |
| 8240-0029 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 0.22-0.35 | VERZINNT |
| 8240-4892 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 0.50-1.25 | VERZINNT |
| 8240-4942 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 2.00 | VERZINNT |
| 8100-0461 | SUMITOMO | TS 2.3(090) SERIES FEMALE SEALED TERMINAL | 0.50-1.25 | VERZINNT |
| 8100-1347 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 0.50-1.25 | VERGOLDET |
| 7161-9787 | SUMITOMO | HX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG | ||
| 8100-0460 | SUMITOMO | TS 2.3(090) SERIES FEMALE SEALED TERMINAL | 0.30-0.50 | VERZINNT |
| 7160-9465 | SUMITOMO | DUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES | ||
| 7165-0076 | SUMITOMO | TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL | ||
| 7165-0342 | SUMITOMO | TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL | 0.30-1.25 | |
| 7165-0343 | SUMITOMO | TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL | 0.50-1.25 | |
| 7165-0344 | SUMITOMO | TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL | 1.25-2.00 | |
| 7165-0349 | SUMITOMO | TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL | 0.30-1.25 | |
| 7165-0351 | SUMITOMO | TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL | 1.25-2.00 | |
| 7165-0395 | SUMITOMO | TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL | 0.50-1.25 | |
| 7165-0842 | SUMITOMO | TS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL | 0.35-0.50 | |
| 7160-8234 | SUMITOMO | TS/SL/MT/HM 2.3(090) SERIES SINGLE WIRE SEAL | 0.50-1.25 | |
| 7116-4026 | YAZAKI | 2.3II(090II) FEMALE SEALED TERMINAL | 0.85-1.25 | VERZINNT |
| 7116-5045-02 | YAZAKI | 2.3II(090II) FEMALE TERMINAL | VERZINNT | |
| 7116-5096-02 | YAZAKI | TS 0.64(025) SERIES FEMALE UNSEALED TERMINAL | VERZINNT | |
| 7116-5044-02 | YAZAKI | 2.3II(090II) FEMALE TERMINAL | VERZINNT | |
| 7116-4025 | YAZAKI | 2.3II(090II) FEMALE SEALED TERMINAL | 0.30-0.50 | VERZINNT |
| 90980-09A94 | TOYOTA | BLIND PLUG | ||
| 82998-12460 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE | 0.20-0.60 | VERGOLDET |
| 82998-12440 | TOYOTA | 2.3(090) FEMALE SEALED TERMINAL WITH 160MM WIRE | 0.20-0.60 | VERZINNT |
| 82998-12590 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-12800 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-24400 | TOYOTA | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82998-24410 | TOYOTA | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIRE | VERGOLDET | |
| 82999-52010 | TOYOTA | TERMINAL | ||
| 90980-09152 | TOYOTA | DUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES | ||
| 82998-52120 | TOYOTA | 2.3 II FEMALE TERMINAL WITH WIRE |
