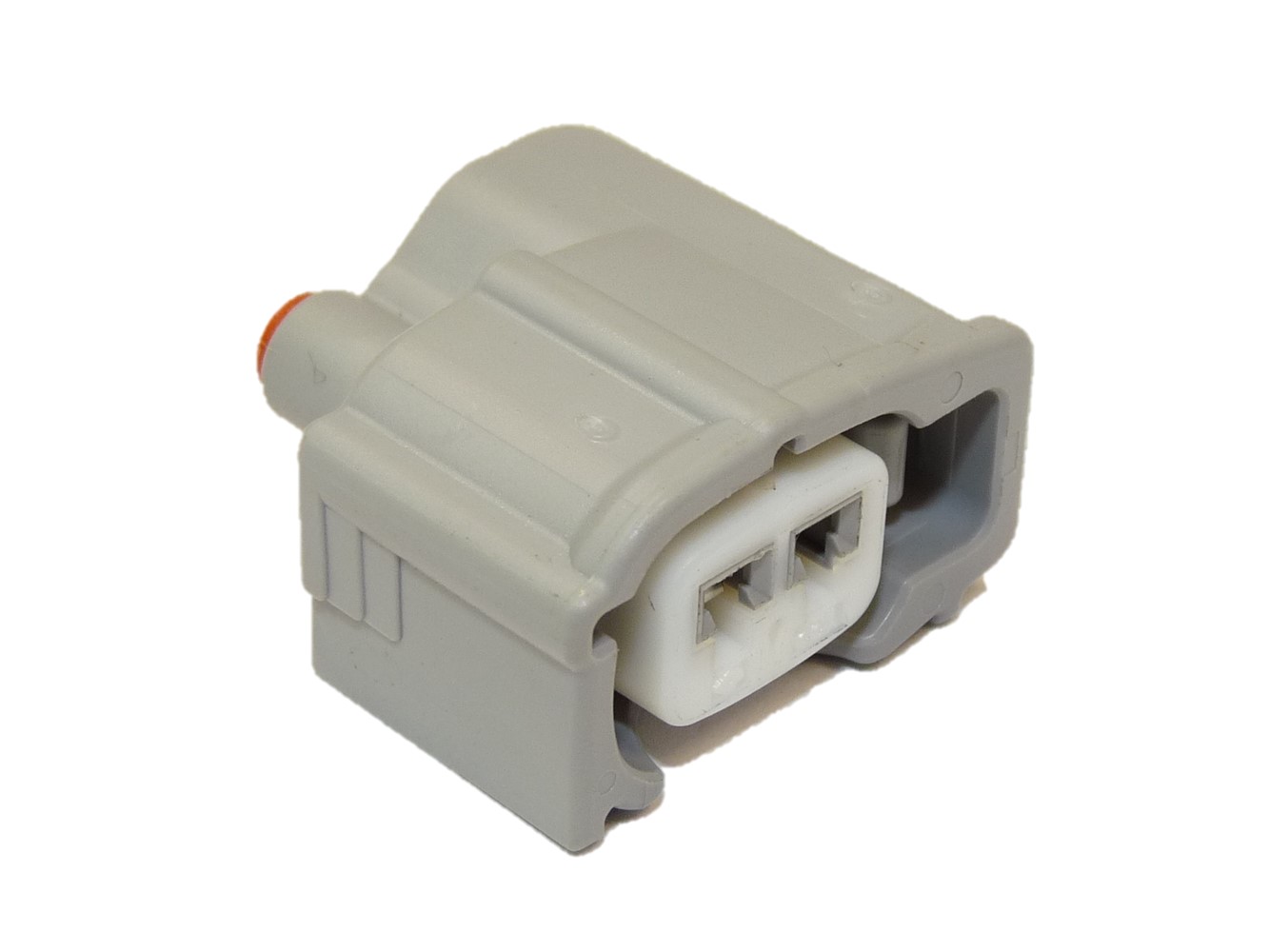

TS 2.3(090) SERIES FEMALE 2 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/26-1-21.jpg
Item 1 of 1
Hersteller:SUMITOMO
Hersteller-Nr.:61890819
Beschreibung:TS 2.3(090) SERIES FEMALE 2 WAY SEALED CONNECTOR
Poligkeit:2
Gedichtet:nein
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 26-1-21
Serie: TS SEALED SERIES (090 CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F417

2 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed2.30 x 0.64

F460

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
7165-0349SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7165-0842SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.35-0.50
8100-1344SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
8100-0817SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERGOLDET
8100-0594SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERGOLDET
8100-0462SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERZINNT
8100-0461SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERZINNT
8100-0460SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERZINNT
7160-9465SUMITOMODUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
7165-0395SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
7160-8234SUMITOMOTS/SL/MT/HM 2.3(090) SERIES SINGLE WIRE SEAL0.50-1.25
7165-0351SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
7161-9787SUMITOMOHX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
7165-0076SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL
7165-0342SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7165-0343SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
7165-0344SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
8240-4252SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL
8240-4882SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.30-0.50VERZINNT
8100-1548SUMITOMOTS SERIES 2.3(090) FEMALE SEALED TERMINALVERZINNT
7116-5044-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
90980-09229TOYOTA2.3 SEALED CONNECTOR PLUGGING BLIND PLUG1.25
82998-24420TOYOTA2.3 FEMALE TERMINAL WITH 500MM WIREVERZINNT
82998-12790TOYOTA2.3(090) FEMALE SEALED TERMINAL WITH 500MM WIREVERZINNT
82998-12780TOYOTA2.3(090) FEMALE SEALED TERMINAL WITH 500MM WIREVERGOLDET
