| Hersteller: | SUMITOMO |
|---|---|
| Hersteller-Nr.: | 6520115000 |

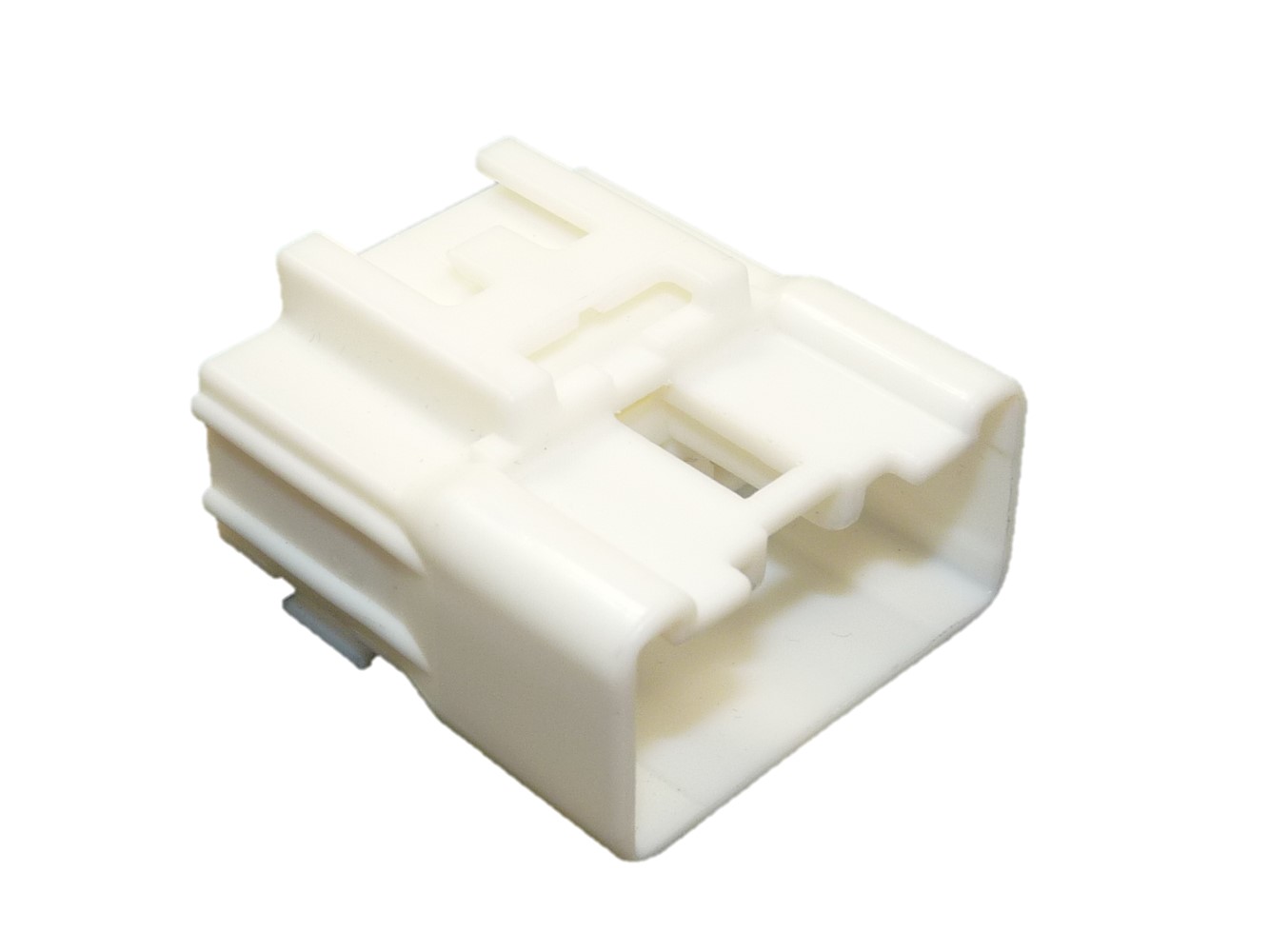

| Beschreibung: | TS SERIES 2.3(090)/4.8(187) MALE 10 WAY UNSEALED CONNECTOR |
| Poligkeit: | 10 |
| Gedichtet: | ja |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 26-2-03 |
|---|---|
| Serie: | TS SERIES (090/187 HYBRID) |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F595 | 8 × Sumitomo TS series 2.3mm(090) male sealed terminal | 2.30 x 0.64 |
F425 | 2 × Sumitomo TS/HX/DL 4.8mm(187) male terminal | 4.80 x 0.80 |
F425 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 8100-1342 | SUMITOMO | TS/SL/DL 2.3(090) SERIES MALE UNSEALED TERMINAL | 0.50-1.25 | VERGOLDET |
| 7114-4020 | YAZAKI | 2.3II(090II) MALE UNSEALED TERMINAL | 0.30-0.50 | VERZINNT |
| 7114-4021 | YAZAKI | 2.3II(090II) MALE UNSEALED TERMINAL | 0.50-1.25 | VERZINNT |
| 7114-4022 | YAZAKI | 2.3II(090II) MALE UNSEALED TERMINAL | 2.00 | VERZINNT |
| 7114-4032 | YAZAKI | 4.8(187) MALE UNSEALED TERMINAL | 2.00-3.00 | VERZINNT |
| 7114-4624-02 | YAZAKI | 2.3 II (090 II) MALE TERMINAL | VERZINNT | |
| 82998-52040 | TOYOTA | 2.3 II MALE TERMINAL WITH WIRE | ||
| 82998-52080 | TOYOTA | TERMINAL | ||
| 82998-12350 | TOYOTA | 2.3(090) MALE UNSEALED TERMINAL WITH 160MM WIRE | 0.30-0.50 | VERGOLDET |
| 82998-52060 | TOYOTA | 2.3 II MALE TERMINAL WITH WIRE | ||
| 82999-52010 | TOYOTA | TERMINAL | ||
| 82998-12A20 | TOYOTA | 2.3 II MALE TERMINAL WITH WIRE | ||
| 82998-12370 | TOYOTA | 4.8 MALE UNSEALED TERMINAL WITH 160MM WIRE | ||
| 82998-12330 | TOYOTA | 2.3(090) MALE UNSEALED TERMINAL WITH 160MM WIRE | 0.30-0.50 | VERZINNT |
| 82998-12390 | TOYOTA | 8.0 MALE UNSEALED TERMINAL WITH 160MM WIRE |
