Item 1 of 1
| Hersteller: | SUMITOMO |
|---|---|
| Hersteller-Nr.: | 65201719 |
| Beschreibung: | 1.00MM(040/9/2.3(090) FEMALE 20 WAY CONNECTOR |
| Poligkeit: | 20 |
| Gedichtet: | ja |
| Gehäusesicherung/Sekundärverriegelung: | ja |

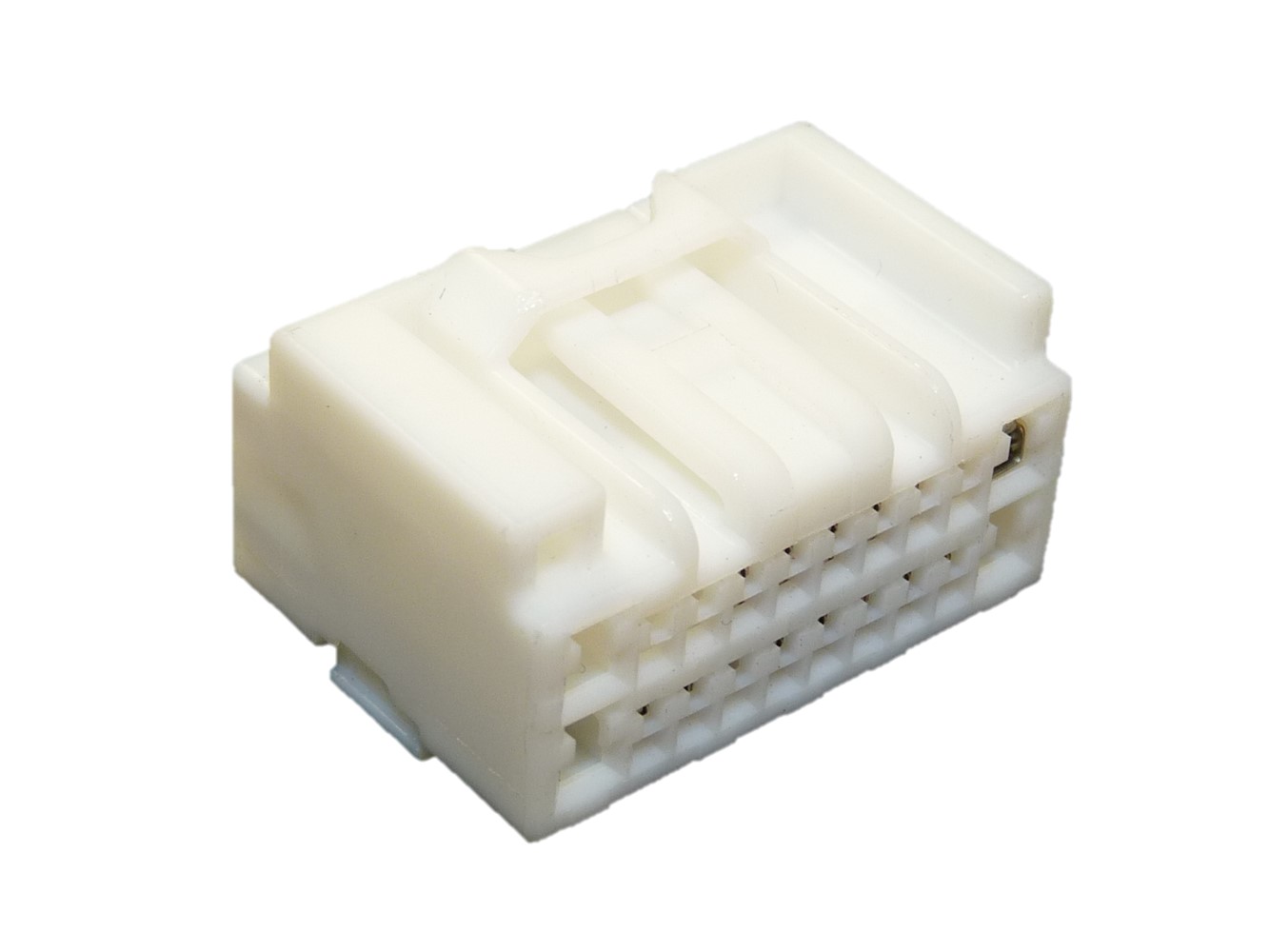

| TGS Gehäuse-ID: | 26-2-06 |
|---|
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F450 | 4 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed | 2.30 x 0.64 |
F595 | 16 × Tyco/AMP Multilock 040 (1.00mm) female terminal | 1.00 x 0.64 |
F425 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 1410-0679 | SUMITOMO | RH CONNECTORS/HS CONNECTORS TERMINAL | 0.50 | VERZINNT |
| 1800-2681 | SUMITOMO | MULTILOCK 040 FEMALE TERMINAL | VERZINNT | |
| 1800-2682 | SUMITOMO | MULTILOCK 040 FEMALE TERMINAL | VERZINNT | |
| 1400-0818 | SUMITOMO | 62 SEALED SERIES 2.3(090) FEMALE TERMINAL | 0.75-2.00 | VERZINNT |
| 1400-0548 | SUMITOMO | JAE IL-AG 5 SERIES FEMALE TERMINAL | ||
| 1400-0817 | SUMITOMO | 62 SEALED SERIES 2.3(090) FEMALE TERMINAL | 0.35-0.50 | VERZINNT |
| 1400-1088 | SUMITOMO | METRI-PACK 150 FEMALE TERMINAL PULL-TO-SEAT | 0.35-0.50 | VERZINNT |
| 1800-3078 | SUMITOMO | 025 FEMALE TERMINAL | 0.20-0.60 | |
| 1410-0678 | SUMITOMO | RH CONNECTORS/HS CONNECTORS FEMALE SEALED TERMINAL | 0.30 | VERZINNT |
| 1410-0625 | SUMITOMO | TER025M YZ | ||
| 1410-0527 | SUMITOMO | YES CONNECTOR 1.5(060) UNSEALED TERMINAL | ||
| 1410-0480 | SUMITOMO | HX SERIES 1.0MM(040) FEMALE SEALED TERMINAL | ||
| 1410-0404 | SUMITOMO | 9.5(375) CONNECTORS STANDARD TYPE TERMINAL | ||
| 1800-2833 | SUMITOMO | MULTILOCK 040 III MALE TERMINAL | ||
| 82998-24380 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE | VERGOLDET | |
| 82998-74060 | TOYOTA | 1.0MM(040) FEMALE TERMINAL WITH WIRE | VERZINNT | |
| 82998-74050 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH WIRE | ||
| 82998-12880 | TOYOTA | 1.0MM(040) FEMALE TERMINAL WITH WIRE | VERGOLDET | |
| 82998-12690 | TOYOTA | 1.0MM(040) FEMALE TERMINAL WITH 160MM WIRE | VERZINNT | |
| 82998-12340 | TOYOTA | 2.3(090) II FEMALE UNSEALED TERMINAL WITH 160MM WIRE | VERZINNT | |
| 82998-12360 | TOYOTA | 2.3(090) II FEMALE UNSEALED TERMINAL | VERGOLDET | |
| 82998-24220 | TOYOTA | 2.3 II IDC FEMALE UNSEALED TERMINAL WITH 160MM WIRE |
