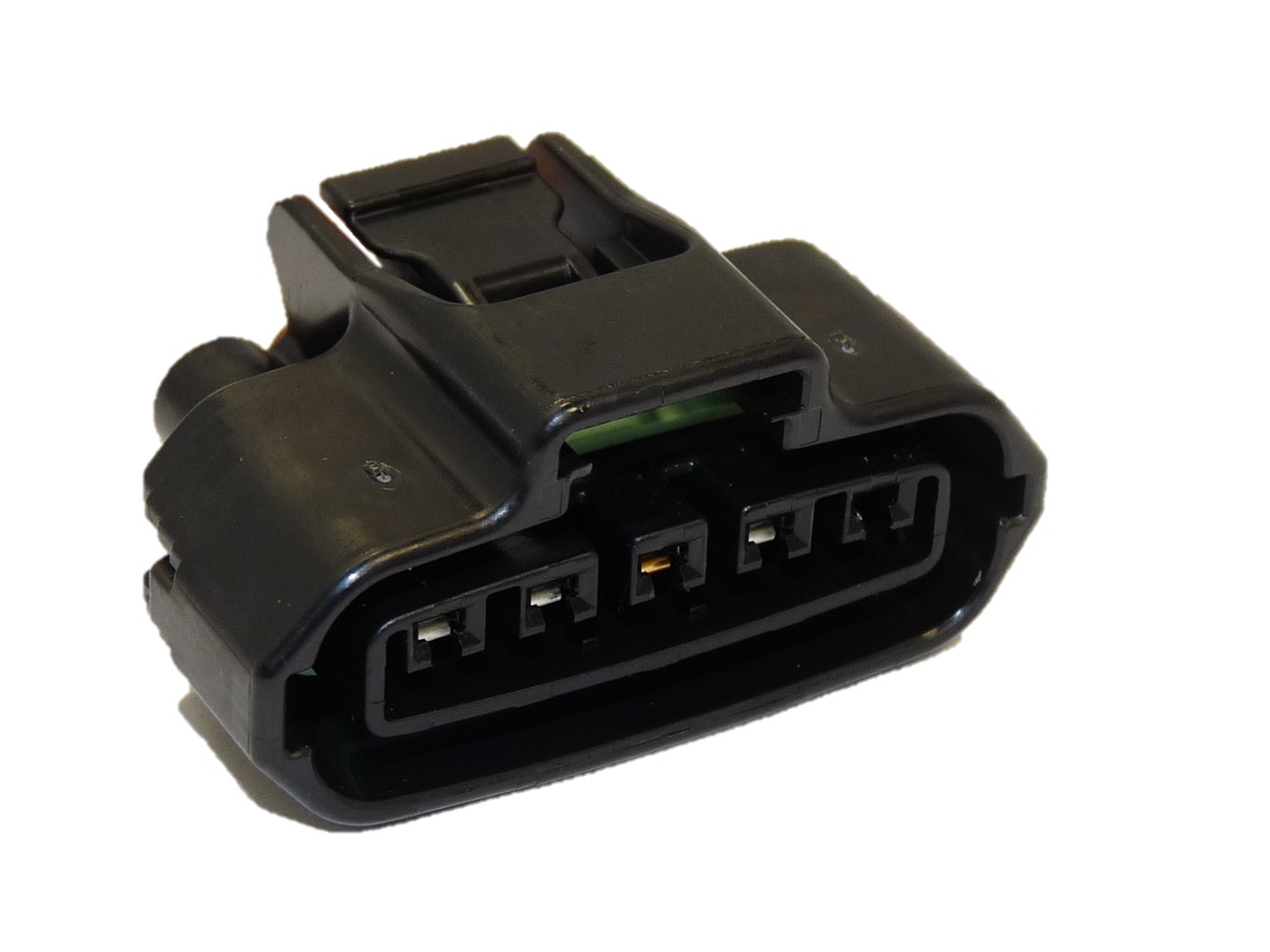

2.3(090) SERIES II FEMALE 5 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/20-2-38.jpg
Item 1 of 1
Hersteller:SUMITOMO
Hersteller-Nr.:66105178
Beschreibung:2.3(090) SERIES II FEMALE 5 WAY SEALED CONNECTOR
Poligkeit:5
Gedichtet:nein
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 20-2-38
Serie: 2.3(090) CONNECTORS
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F450

5 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed2.30 x 0.64

F450

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
7116-4025YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.30-0.50VERZINNT
7116-4026YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.85-1.25VERZINNT
7116-4027YAZAKI2.3II(090II) FEMALE SEALED TERMINAL2.00VERZINNT
7116-4028-08YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
7116-4029-08YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.85-1.25VERGOLDET
8240-0029SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.22-0.35VERZINNT
8100-0460SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERZINNT
8240-4882SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.30-0.50VERZINNT
7116-4025-08YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
82998-12590TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-12460TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE0.20-0.60VERGOLDET
90980-09152TOYOTADUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
82999-12030TOYOTAWIRE SEAL1.25
82999-12020TOYOTAWIRE SEAL1.25
82998-24410TOYOTATS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-24400TOYOTATS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-12440TOYOTA2.3(090) FEMALE SEALED TERMINAL WITH 160MM WIRE0.20-0.60VERZINNT
82998-12800TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 500MM WIREVERGOLDET
ST730623-3KET ( KOREA ELECTRIC TERMINAL)090II FEMALE SEALED TERMINAL0.30-0.50VERZINNT
ST730624-3KET ( KOREA ELECTRIC TERMINAL)090II FEMALE SEALED TERMINAL0.85-1.25VERZINNT
ST730625-3KET ( KOREA ELECTRIC TERMINAL)090II FEMALE SEALED TERMINAL2.00VERZINNT
