| Hersteller: | BMW |
|---|---|
| Hersteller-Nr.: | 6830773 |

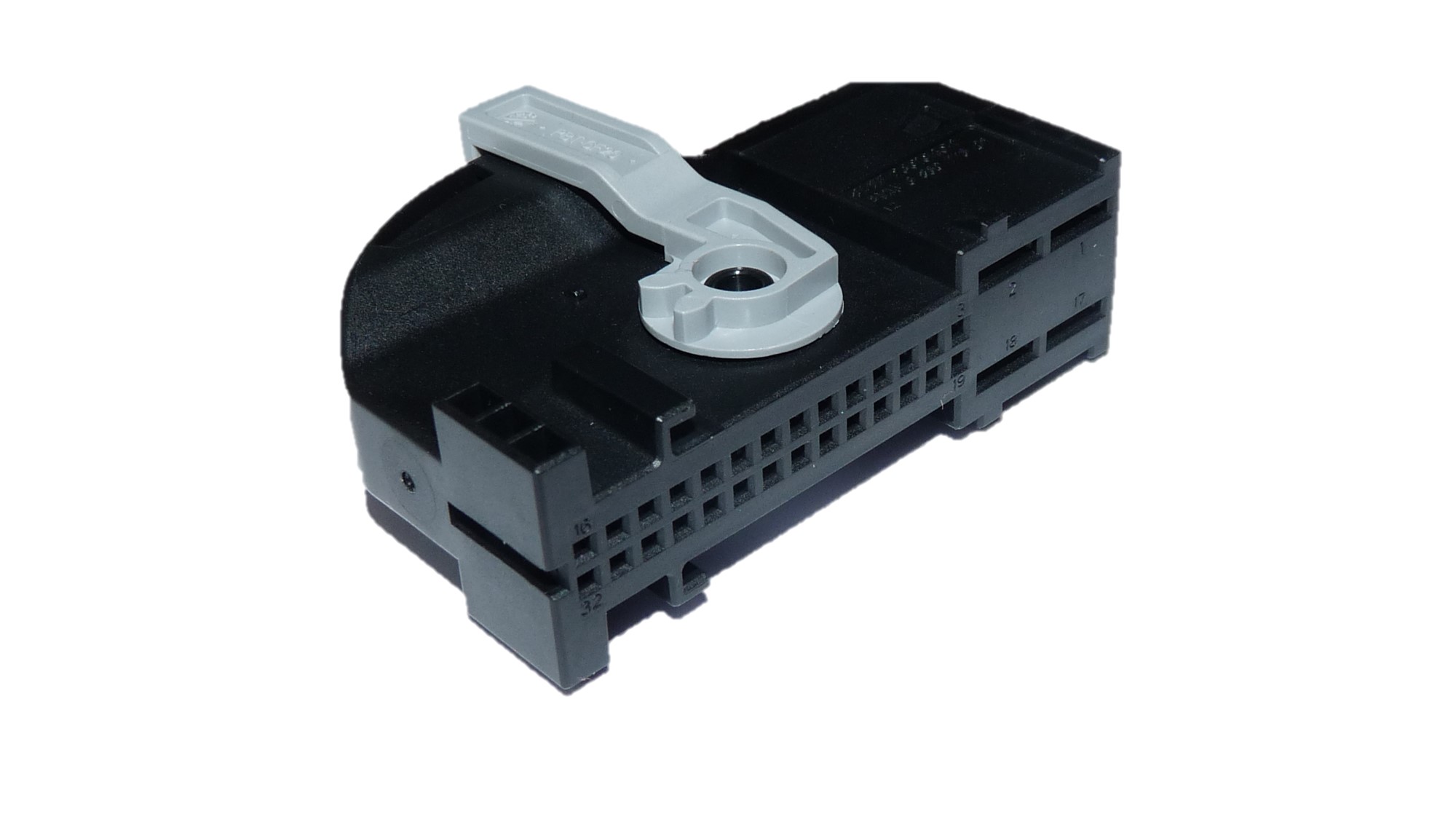

| Beschreibung: | MQS 0.63/ELO 2.8/ELO 5.2 FEMALE 32 WAY CONNECTOR |
| Poligkeit: | 32 |
| Gedichtet: | ja |
| Gehäusesicherung/Sekundärverriegelung: | nein |
| TGS Gehäuse-ID: | 75-1-11 |
|---|
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F425 | 4 × Tyco/AMP Power Quadlock 5.2 (PQ 5.2) female terminal | 5.20 x 0.63 |
S3570 | 1 × Inner Housing | |
S3562 | 28 × Tyco/AMP Micro Power Quadlock 0.63 (MQS 0.63) female terminal | 0.63 x 0.63 |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 5-963715-1 | TE CONNECTIVITY | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE UNSEALED TERMINAL | 0.50-0.75 | VERZINNT |
| 968072-2 | TE CONNECTIVITY | POWER QUADLOCK 5.2 FEMALE TERMINAL | 1.00-2.50 | VERSILBERT |
| 968072-3 | TE CONNECTIVITY | POWER QUADLOCK 5.2 FEMALE TERMINAL | 1.50-2.50 | VERZINNT |
| 968073-3 | TE CONNECTIVITY | POWER QUADLOCK 5.2 FEMALE TERMINAL | 2.50-4.00 | |
| 5-928999-1 | TE CONNECTIVITY | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE UNSEALED TERMINAL | 0.20-0.35 | TIN SILVER (SNAG) |
| 61130056947 | BMW | ELO-POWER FEMALE TERMINAL WITH REPAIR WIRE | 1.50-2.50 | VERZINNT |
| 61130056960 | BMW | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL WITH REPAIR WIRE | 0.50-0.75 | VERSILBERT |
| 61130056962 | BMW | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL WITH REPAIR WIRE | 0.20-0.35 | VERSILBERT |
| 61136931902 | BMW | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL | 0.35 | VERSILBERT |
| 61138364842 | BMW | POWER QUADLOCK 5.2 FEMALE TERMINAL | 1.00-2.50 | |
| 61138383280 | BMW | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL | 0.50-0.75 | VERSILBERT |
| 7116-4479-02 | YAZAKI | POWER QUADLOCK 5.2 FEMALE TERMINAL | 1.25-2.50 | VERZINNT |
| 7116-7308-02 | YAZAKI | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL | 0.50-0.75 | VERZINNT |
| 7116-7310-02 | YAZAKI | MICRO-QUADLOCK 0.63 (MQS 0.63) FEMALE TERMINAL | 0.20-0.35 | VERZINNT |
