Item 1 of 1
| Hersteller: | YAZAKI |
|---|---|
| Hersteller-Nr.: | 7283-5846 |

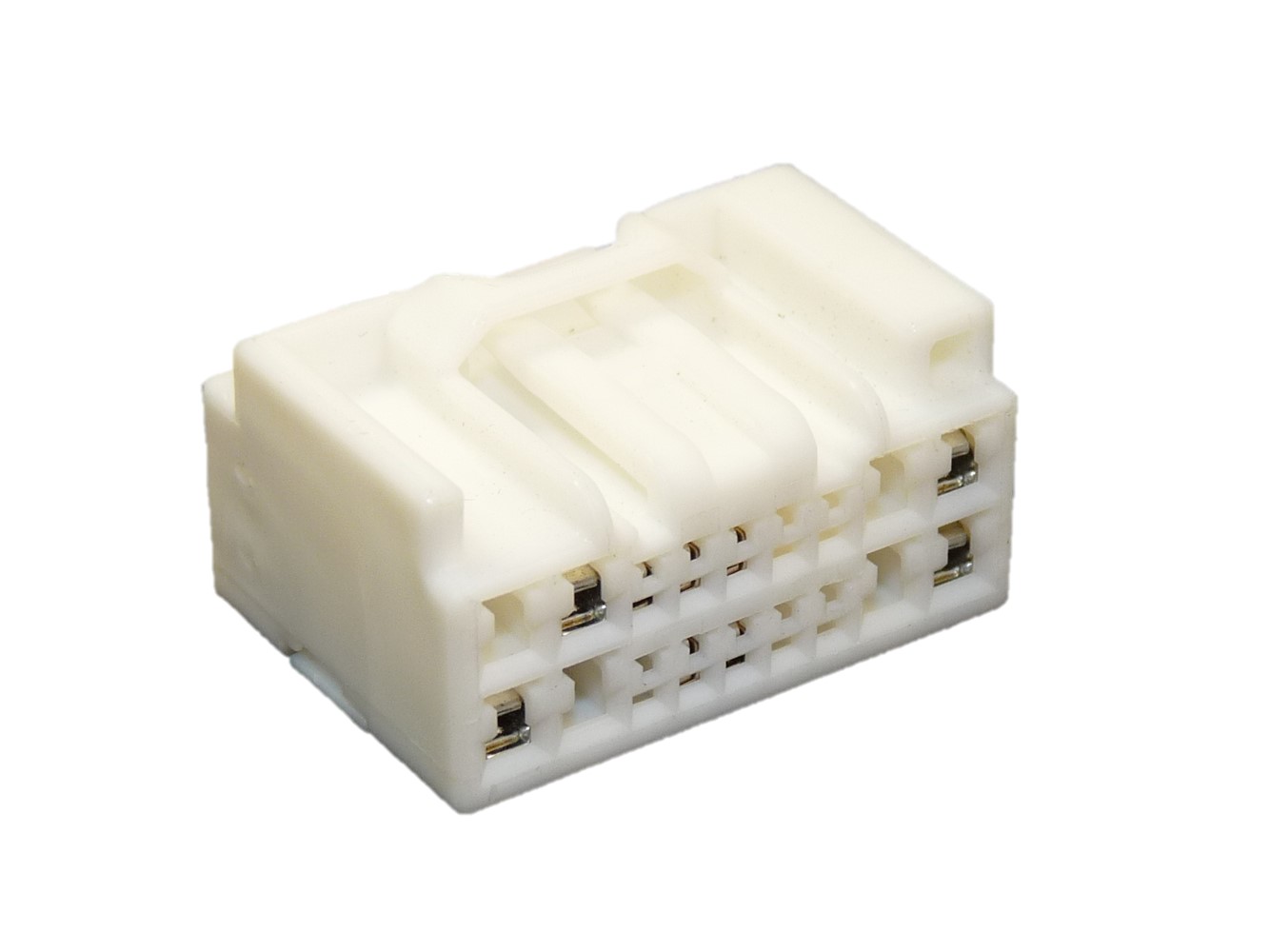

| Beschreibung: | 1.0(040)/2.3(090) FEMALE 18 WAY UNSEALED CONNECTOR |
| Poligkeit: | 18 |
| Gedichtet: | ja |
| Farbe: | WHITE |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 23-2-23 |
|---|
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F450 | 8 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed | 2.30 x 0.64 |
F595 | 10 × Sumitomo HE/TK series 1.0mm(040) female terminal unsealed | 1.00 x 0.64 |
F425 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 82998-12340 | TOYOTA | 2.3(090) II FEMALE UNSEALED TERMINAL WITH 160MM WIRE | VERZINNT | |
| 82998-12360 | TOYOTA | 2.3(090) II FEMALE UNSEALED TERMINAL | VERGOLDET | |
| 82998-12690 | TOYOTA | 1.0MM(040) FEMALE TERMINAL WITH 160MM WIRE | VERZINNT | |
| 82998-12880 | TOYOTA | 1.0MM(040) FEMALE TERMINAL WITH WIRE | VERGOLDET | |
| 82998-24380 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE | VERGOLDET | |
| 82998-74050 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH WIRE | ||
| 82998-74060 | TOYOTA | 1.0MM(040) FEMALE TERMINAL WITH WIRE | VERZINNT | |
| 82999-12020 | TOYOTA | WIRE SEAL | 1.25 | |
| 82999-12030 | TOYOTA | WIRE SEAL | 1.25 |
