Item 1 of 1
| Hersteller: | YAZAKI |
|---|---|
| Hersteller-Nr.: | 7283-7371 |

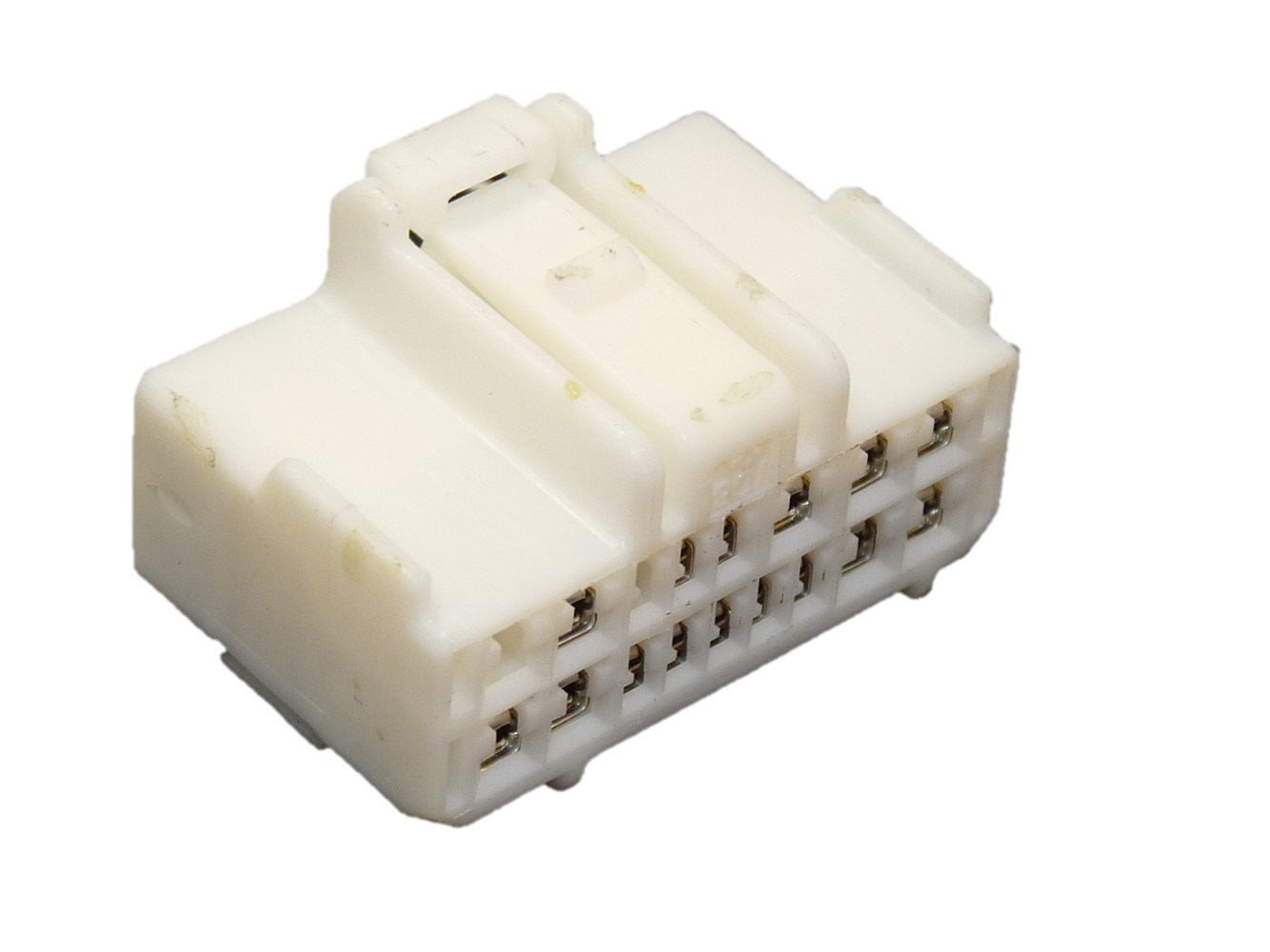

| Beschreibung: | TS SERIES 1.3(050)/090 FEMALE 17 WAY CONNECTOR |
| Poligkeit: | 17 |
| Gedichtet: | ja |
| Farbe: | NATURAL |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 23-2-36 |
|---|---|
| Serie: | TS SERIES (050/090 HYBRID) |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F450 | 9 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed | 2.30 x 0.64 |
F595 | 8 × Yazaki 1.3mm(050) female terminal | |
F425 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 8100-1346 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 0.30-0.50 | VERGOLDET |
| 8240-0029 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 0.22-0.35 | VERZINNT |
| 8240-4882 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 0.30-0.50 | VERZINNT |
| 8100-0544 | SUMITOMO | TS SERIES 1.3(050) FEMALE TERMINAL | 0.30-0.50 | VERZINNT |
| 8100-0460 | SUMITOMO | TS 2.3(090) SERIES FEMALE SEALED TERMINAL | 0.30-0.50 | VERZINNT |
| 8240-4942 | SUMITOMO | TS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL | 2.00 | VERZINNT |
| 82999-12020 | TOYOTA | WIRE SEAL | 1.25 | |
| 82998-12420 | TOYOTA | 1.3(050) FEMALE UNSEALED TERMINAL WITH 160MM REPAIR WIRE | 0.30-0.50 | VERZINNT |
| 82998-74050 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH WIRE | ||
| 82999-12030 | TOYOTA | WIRE SEAL | 1.25 | |
| 82998-24380 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE | VERGOLDET | |
| 82998-12340 | TOYOTA | 2.3(090) II FEMALE UNSEALED TERMINAL WITH 160MM WIRE | VERZINNT | |
| 82998-12360 | TOYOTA | 2.3(090) II FEMALE UNSEALED TERMINAL | VERGOLDET |
