Item 1 of 1
| Hersteller: | YAZAKI |
|---|---|
| Hersteller-Nr.: | 7283-7475 |

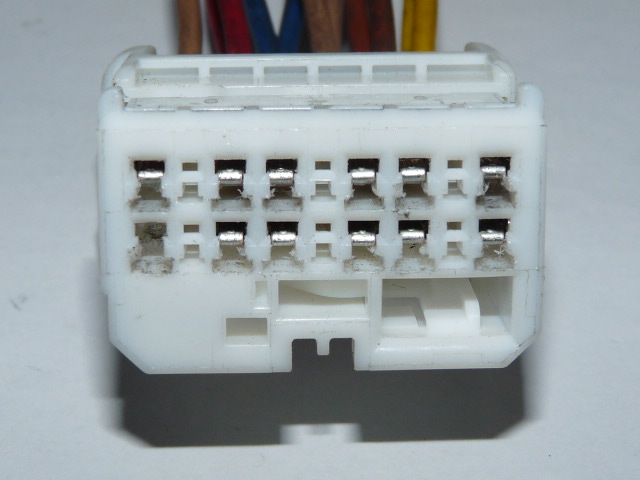

| Beschreibung: | 2.3(090)1.0(040) FEMALE 18 WAY UNSEALED CONNECTOR |
| Poligkeit: | 18 |
| Gedichtet: | ja |
| Farbe: | NATURAL |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 36-2-24 |
|---|---|
| Serie: | 2.3(090) CONNECTORS |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F450 | 12 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed | 2.30 x 0.64 |
F595 | 6 × Tyco/AMP Multilock 040 (1.00mm) female terminal | 1.00 x 0.64 |
F460 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 7116-4486-02 | YAZAKI | HE 1.0(040) SERIES FEMALE UNSEALED TERMINAL | VERZINNT | |
| 7116-5035-02 | YAZAKI | 2.3II(090II) FEMALE TERMINAL | VERZINNT | |
| 7116-5043-02 | YAZAKI | 2.3II(090II) FEMALE UNSEALED TERMINAL | VERZINNT | |
| 82998-74050 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH WIRE | ||
| 82999-52010 | TOYOTA | TERMINAL | ||
| 82998-12360 | TOYOTA | 2.3(090) II FEMALE UNSEALED TERMINAL | VERGOLDET | |
| 82999-12030 | TOYOTA | WIRE SEAL | 1.25 | |
| 90980-09627 | TOYOTA | BLIND PLUG | ||
| 82999-12020 | TOYOTA | WIRE SEAL | 1.25 | |
| 82998-74060 | TOYOTA | 1.0MM(040) FEMALE TERMINAL WITH WIRE | VERZINNT | |
| 82998-52050 | TOYOTA | 2.3 II FEMALE TERMINAL WITH WIRE | ||
| 82998-24380 | TOYOTA | 2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIRE | VERGOLDET | |
| 82998-12A30 | TOYOTA | 2.3 II FEMALE TERMINAL WITH WIRE | ||
| 82998-12690 | TOYOTA | 1.0MM(040) FEMALE TERMINAL WITH 160MM WIRE | VERZINNT | |
| 82998-12340 | TOYOTA | 2.3(090) II FEMALE UNSEALED TERMINAL WITH 160MM WIRE | VERZINNT | |
| 82998-12880 | TOYOTA | 1.0MM(040) FEMALE TERMINAL WITH WIRE | VERGOLDET | |
| 82998-52070 | TOYOTA | 2.3(090) II FEMALE UNSEALED TERMINAL WITH 160MM WIRE | VERGOLDET |
