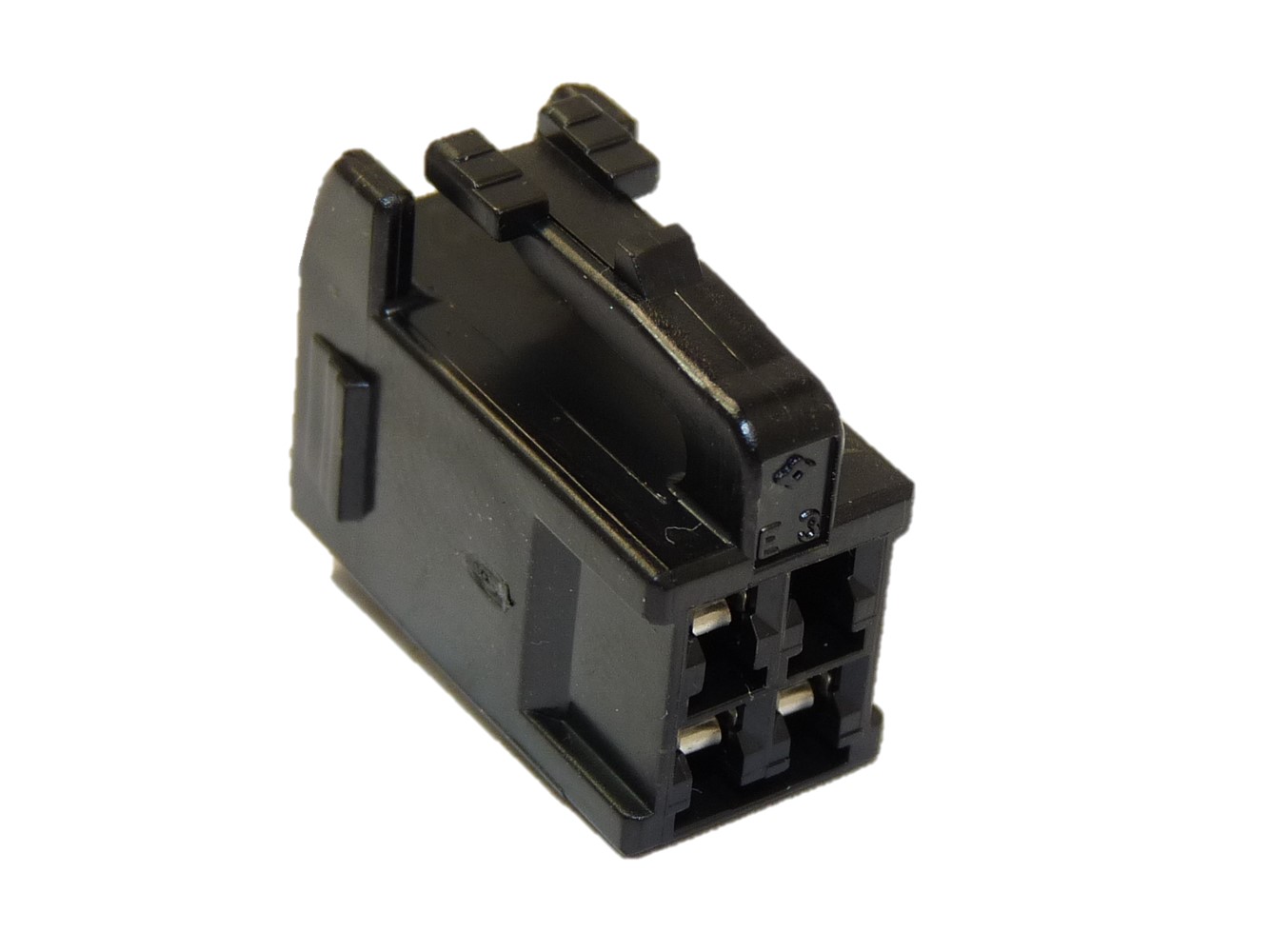

2.3(090) SERIES II FEMALE 4 WAY UNSEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/23-2-08.jpg
Item 1 of 1
Hersteller:VW
Hersteller-Nr.:7L0971636F
Beschreibung:2.3(090) SERIES II FEMALE 4 WAY UNSEALED CONNECTOR
Poligkeit:4
Gedichtet:ja
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 23-2-08
Serie: 2.3 (090) SERIES II
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F450

4 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed2.30 x 0.64

F450

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
8100-1347SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.50-1.25VERGOLDET
8240-0029SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.22-0.35VERZINNT
8240-4882SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.30-0.50VERZINNT
8240-4892SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.50-1.25VERZINNT
8240-4942SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL2.00VERZINNT
8100-1346SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.30-0.50VERGOLDET
7116-4020YAZAKI2.3II(090II) FEMALE UNSEALED TERMINAL0.30-0.50VERZINNT
82998-74050TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH WIRE
82999-52010TOYOTATERMINAL
90980-09627TOYOTABLIND PLUG
82999-12030TOYOTAWIRE SEAL1.25
82999-12020TOYOTAWIRE SEAL1.25
82998-52070TOYOTA2.3(090) II FEMALE UNSEALED TERMINAL WITH 160MM WIREVERGOLDET
82998-52050TOYOTA2.3 II FEMALE TERMINAL WITH WIRE
82998-24380TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIREVERGOLDET
82998-12A30TOYOTA2.3 II FEMALE TERMINAL WITH WIRE
82998-12340TOYOTA2.3(090) II FEMALE UNSEALED TERMINAL WITH 160MM WIREVERZINNT
82998-12360TOYOTA2.3(090) II FEMALE UNSEALED TERMINALVERGOLDET
82998-24220TOYOTA2.3 II IDC FEMALE UNSEALED TERMINAL WITH 160MM WIRE
