Item 1 of 1
| Hersteller: | GENERAL MOTORS |
|---|---|
| Hersteller-Nr.: | 84766292 |
| Beschreibung: | 59-WAY M 1.2 MCON, 2.8, 6.3 YESC SERIES( BK) |
| Poligkeit: | 59 |
| Gedichtet: | ja |
| Gehäusesicherung/Sekundärverriegelung: | ja |

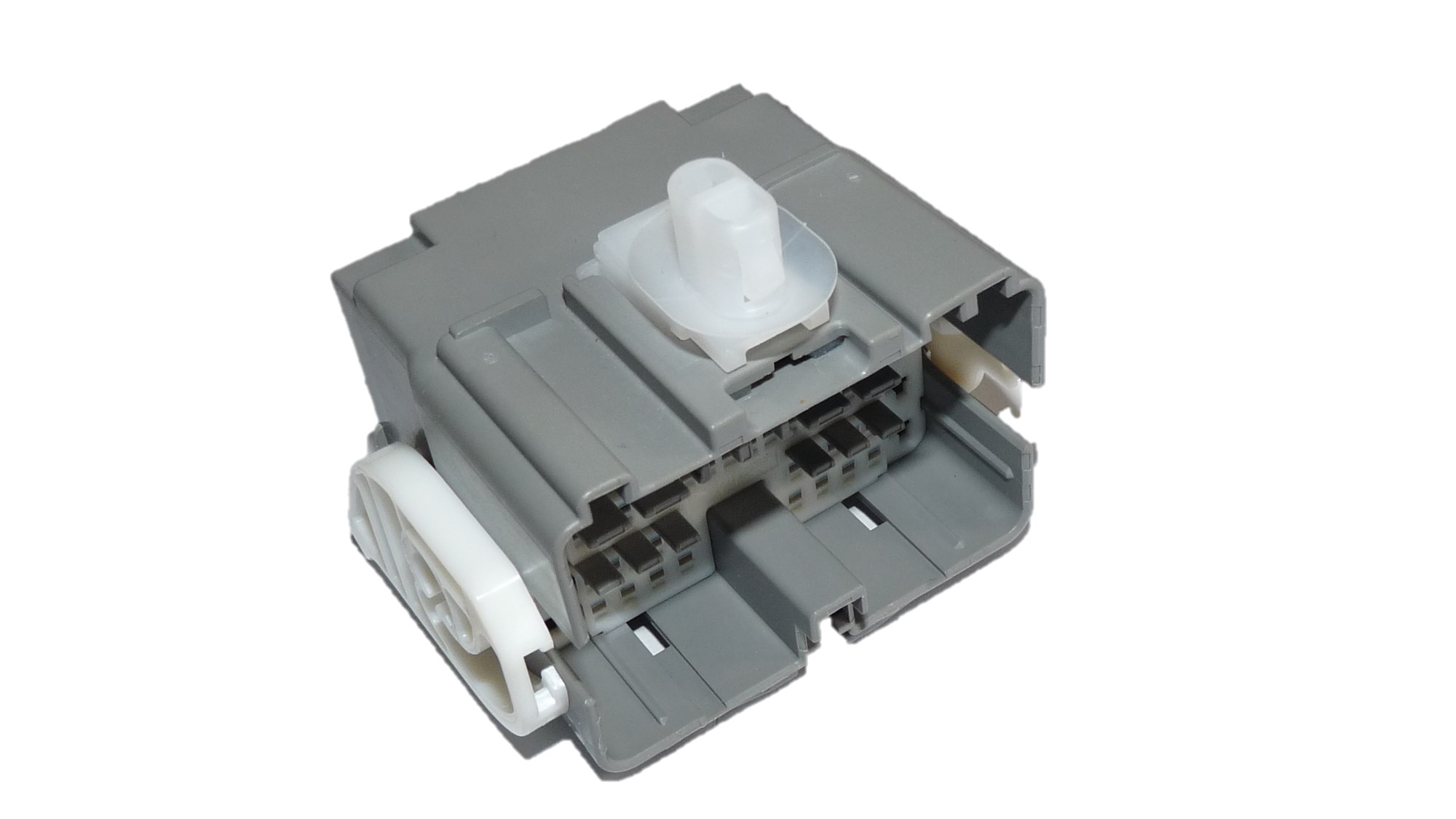

| TGS Gehäuse-ID: | 72-1-27 |
|---|---|
| Gegengehäuse: | 13528126 |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F595 | 43 × Aptiv OCS 1.2 male terminal | 1.20 x 0.60 |
F595 | 12 × Yazaki YESC Kaizen Connector 2.8(110) male Terminal | 2.80 x 0.80 |
F450 | 4 × Yazaki YES/YESC Kaizen Connector 6.3(250) male Terminal | 6.30 x 0.80 |
F460 | 1 × secondary lock | |
H970 | 1 × secondary lock |
| Hersteller-Nr. | Beschreibung |
|---|---|
| 13528126 | 1.2/2.8/6.3 FEMALE 59 WAY UNSEALED CONNECTOR |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 35091063 | APTIV | OCS 1.2 MALE TERMINAL | 0.13-0.22 | VERZINNT |
| 35091062 | APTIV | OCS 1.2 MALE TERMINAL | 0.35-0.50 | VERZINNT |
| 35091060 | APTIV | OCS 1.2 MALE TERMINAL | 1.25-1.50 | VERZINNT |
| 35091061 | APTIV | OCS 1.2 MALE TERMINAL | 0.75-1.00 | VERZINNT |
| 68316932AA | MOPAR | YES CONNECTOR 6.3(250) MALE UNSEALED TERMINAL | ||
| 68316934AA | MOPAR | YES CONNECTOR 6.3(250) MALE UNSEALED TERMINAL | ||
| 68316928AA | MOPAR | YES CONNECTOR 2.8(110) MALE UNSEALED TERMINAL | ||
| 68316930AA | MOPAR | YES CONNECTOR 2.8(110) MALE UNSEALED TERMINAL | ||
| 7114-4110-02 | YAZAKI | YES CONNECTOR 2.8(110) MALE UNSEALED TERMINAL | 0.35-0.50 | VERZINNT |
| 7114-4120-02 | YAZAKI | YES CONNECTOR KAIZEN CONNECTOR 6.3(250) MALE TERMINAL | 0.50-1.00 | VERZINNT |
| 7214-5911-02 | YAZAKI | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERZINNT |
| 7114-5486-02 | YAZAKI | MCON 1.2 MALE TERMINAL | 0.50-0.75 | VERZINNT |
| 7114-4121-02 | YAZAKI | YES CONNECTOR 6.3(250) MALE UNSEALED TERMINAL | 1.50-2.50 | VERZINNT |
| 1718348-1 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.25-0.35 | VERZINNT |
| 1718350-1 | TE CONNECTIVITY | MCON 1.2 MALE TERMINAL | 0.50-0.75 | VERZINNT |
| 7114-4113-02 | YAZAKI | 2.8X0.8 UNSEALED MALE TERMINAL | 2.50-4.00 | VERZINNT |
| J-38125-11A | KENT-MOORE TERMINAL RELEASE TOOL |
|---|---|
| J-38125-215A |
