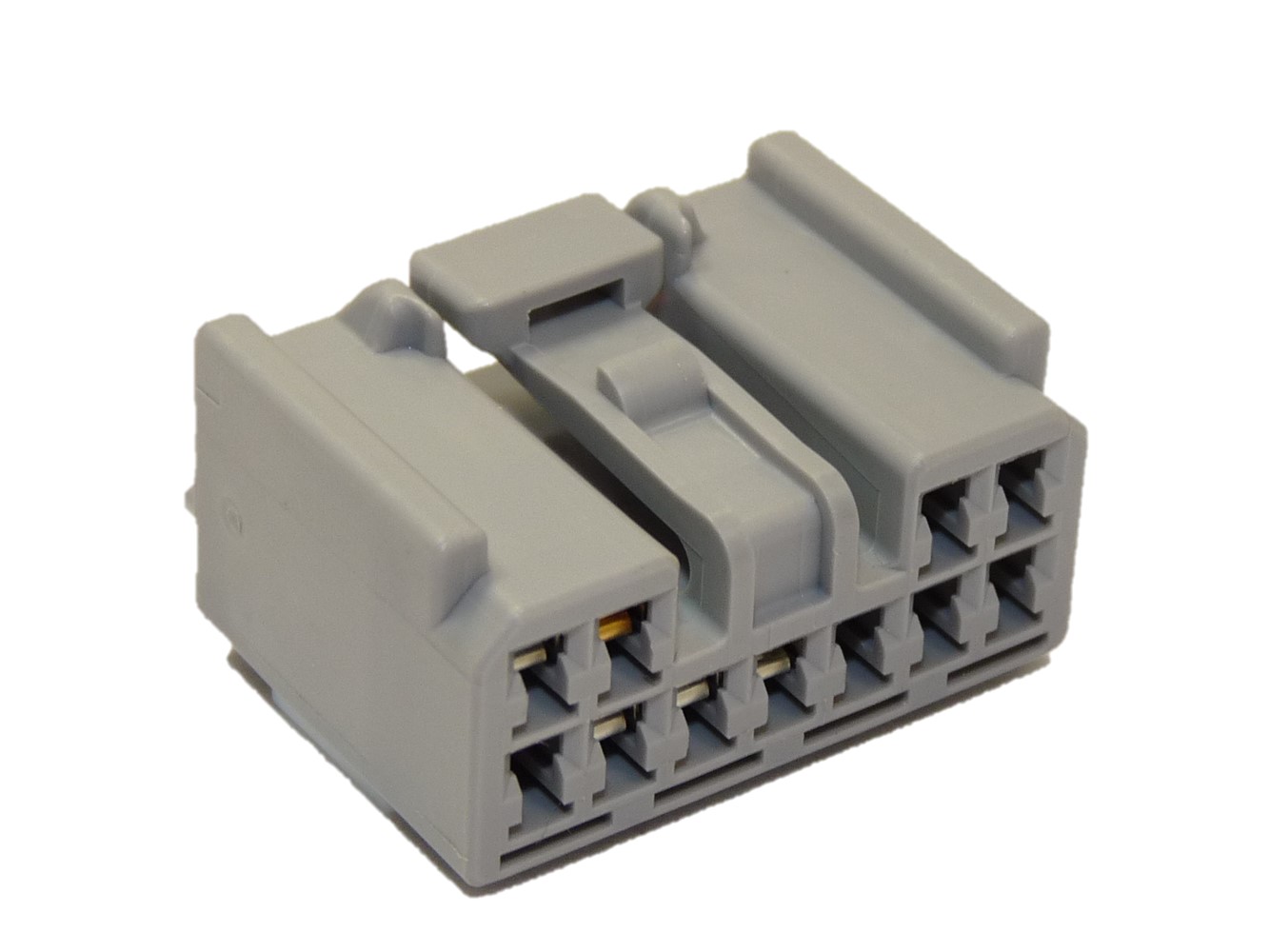

HLC 2.3(090) SERIES II FEMALE 11 WAY UNSEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/23-2-10.jpg
Item 1 of 1
Hersteller:SUMITOMO
Hersteller-Nr.:11539N9A11F-GR
Beschreibung:HLC 2.3(090) SERIES II FEMALE 11 WAY UNSEALED CONNECTOR
Poligkeit:11
Gedichtet:ja
Farbe:GREY
Gehäuse­sicherung/Sekundär­verriegelung:nein
TGS Gehäuse-ID: 23-2-10
Serie: 2.3(090) CONNECTORS
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F417

11 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed2.30 x 0.64
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
7116-4020YAZAKI2.3II(090II) FEMALE UNSEALED TERMINAL0.30-0.50VERZINNT
7116-4021YAZAKI2.3II(090II) FEMALE UNSEALED TERMINAL0.50-1.25VERZINNT
7116-4022YAZAKI2.3II(090II) FEMALE UNSEALED TERMINAL2.00VERZINNT
7116-5041-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
8100-0461SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERZINNT
8100-1346SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.30-0.50VERGOLDET
8240-4882SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.30-0.50VERZINNT
8240-4942SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL2.00VERZINNT
82998-12340TOYOTA2.3(090) II FEMALE UNSEALED TERMINAL WITH 160MM WIREVERZINNT
82998-12360TOYOTA2.3(090) II FEMALE UNSEALED TERMINALVERGOLDET
82998-24220TOYOTA2.3 II IDC FEMALE UNSEALED TERMINAL WITH 160MM WIRE
82998-24380TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIREVERGOLDET
82998-74050TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH WIRE
82999-12020TOYOTAWIRE SEAL1.25
82999-12030TOYOTAWIRE SEAL1.25
