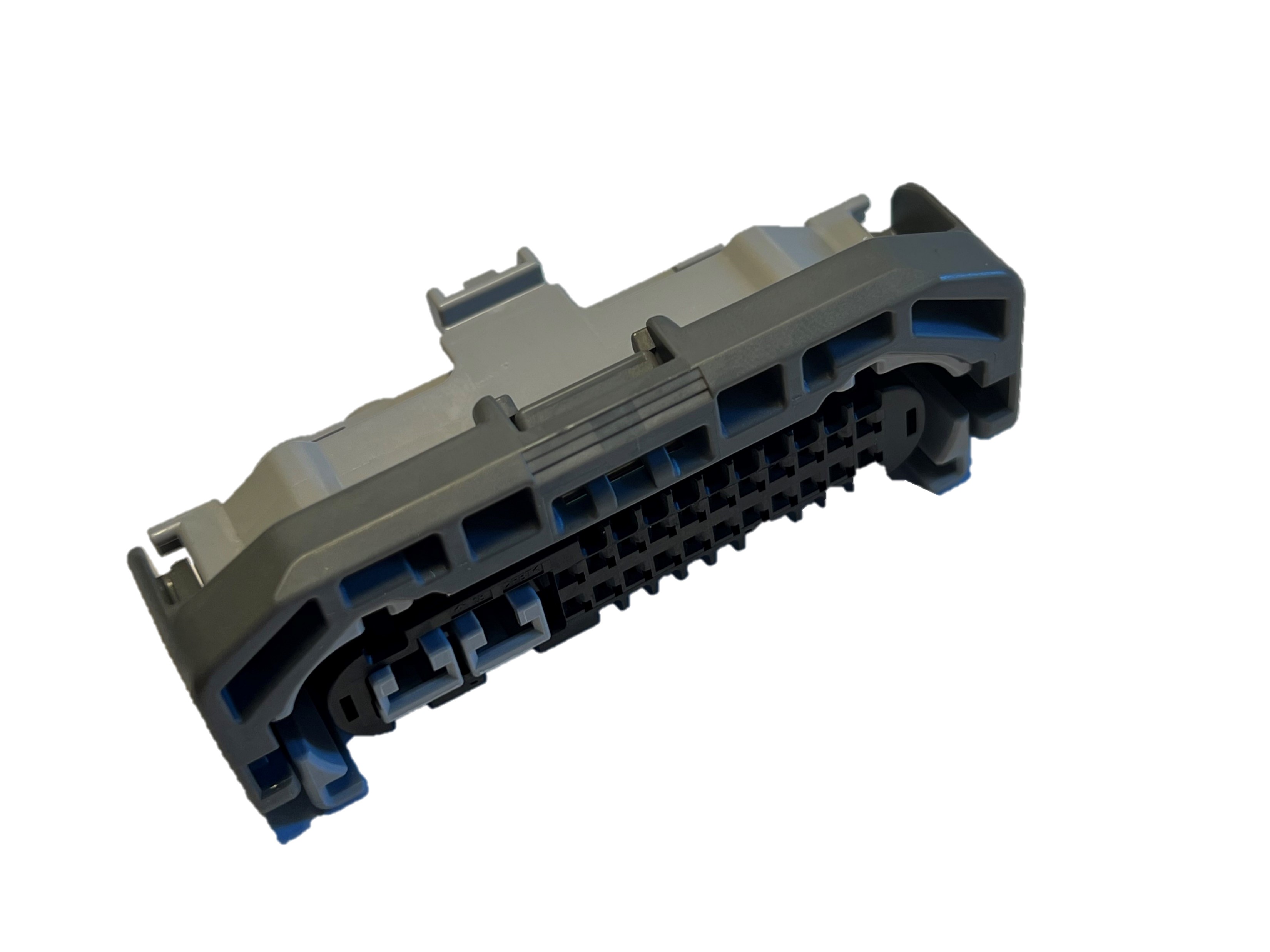

TS SERIES 0.64(025)/4.8 FEMALE 24 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/83-2-23.jpg
Item 1 of 1
Hersteller:TOYOTA
Hersteller-Nr.:90980-12A92
Beschreibung:TS SERIES 0.64(025)/4.8 FEMALE 24 WAY SEALED CONNECTOR
Poligkeit:24
Gedichtet:nein
Farbe:GREY
Gehäuse­sicherung/Sekundär­verriegelung:nein
TGS Gehäuse-ID: 83-2-23
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F450

2 × Yazaki 8.0mm(312) female terminal sealed8.00 x 0.80

F920

22 × Sumitomo TS Series 0.64mm(025) female sealed terminal0.64 x 0.64
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
7116-4036YAZAKI4.8(187) FEMALE SEALED TERMINAL0.50-1.25BLANK
7116-4037YAZAKI4.8(187) FEMALE SEALED TERMINAL2.00-3.00VERZINNT
7116-4727-08YAZAKITS 0.64(025) SERIES FEMALE SEALED TERMINAL0.22-0.50VERGOLDET
7165-0145SUMITOMOTS/HX/DL SERIES 4.8(187) DUMMY PLUG
7165-0797SUMITOMODUMMY PLUG TS SERIES 0.64MM(025)
7196-1102-02YAZAKITS 0.64(025) SERIES FEMALE SEALED TERMINALVERZINNT
7196-1103-02YAZAKITS 0.64(025) SERIES FEMALE SEALED TERMINALVERZINNT
7196-1104-02YAZAKITS 0.64(025) SERIES FEMALE SEALED TERMINALVERZINNT
8100-0466SUMITOMOTS SERIES 4.8(187) FEMALE SEALED TERMINAL0.30-0.50VERZINNT
8100-0467SUMITOMOTS SERIES 4.8(187) FEMALE SEALED TERMINAL0.50-1.25VERZINNT
8100-0468SUMITOMOTS/HX/DL SERIES 4.8(187) FEMALE SEALED TERMINAL2.00-3.00VERZINNT
8100-3455SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.22-0.50VERZINNT
8100-3456SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.22-0.50VERGOLDET
8240-0287SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.50VERZINNT
8240-0288SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.50VERGOLDET
8240-0336SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.13VERZINNT
8240-0337SUMITOMOTS 0.64(025) SERIES FEMALE SEALED TERMINAL0.13VERGOLDET
82998-12480TOYOTA4.8(187) FEMALE SEALED TERMINAL WITH 160MM WIRE0.20-0.60VERZINNT
82998-24250TOYOTATS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH 500MM WIREVERZINNT
82998-24260TOYOTATS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH 500MM WIREVERGOLDET
82998-52140TOYOTA4.8 FEMALE TERMINAL WITH WIRE
82998-74030TOYOTATS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH160MM WIREVERGOLDET
82998-74040TOYOTATS 0.64(025) SERIES FEMALE SEALED TERMINAL WITH160MM WIREVERGOLDET
82999-52010TOYOTATERMINAL
90980-09325TOYOTA4.8 SEALED CONNECTOR BLIND PLUG
90980-09329TOYOTABLIND PLUG
90980-09871TOYOTA0.64 SEALED CONNECTOR PLUGGING BLIND PLUG
09041-1C570TOYOTA EXTRACTION TOOL
09991-00530TOYOTA EXTRACTION TOOL
