Item 1 of 1
| Hersteller: | STELLANTIS (PSA) |
|---|---|
| Hersteller-Nr.: | 9805462480 |
| Beschreibung: | CMX/CTX64/CTX150/CTX280 FEMALE CONNECTOR 120 WAY SEALED CONNECTOR |
| Poligkeit: | 120 |
| Gedichtet: | nein |
| Farbe: | BLACK |
| Gehäusesicherung/Sekundärverriegelung: | ja |

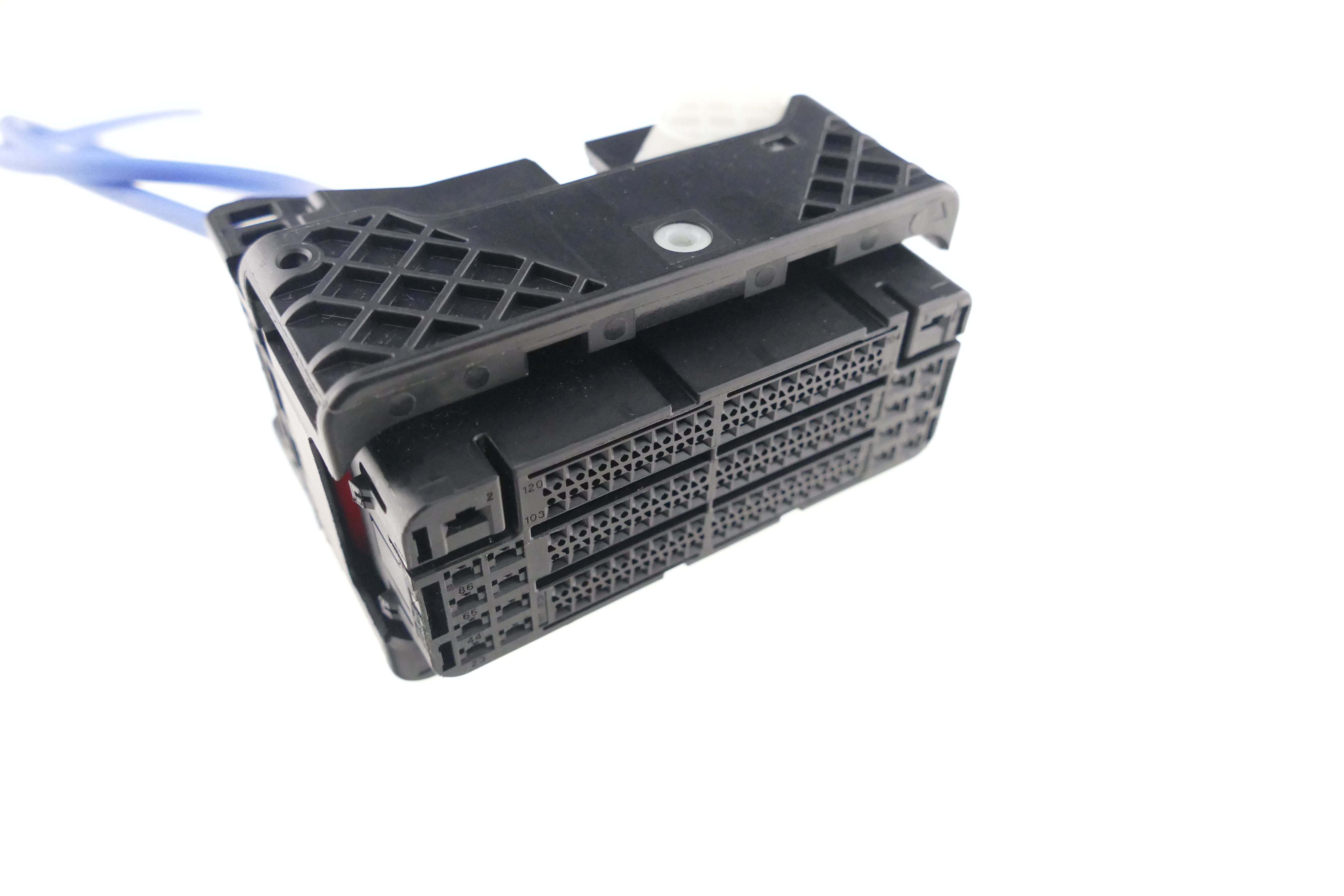

| TGS Gehäuse-ID: | 68-1-17 |
|---|---|
| Serie: | CMX CONNECTORS |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F450 | 2 × Molex CTX280 female terminal | |
G181 | 16 × Molex CTX150 female terminal | 1.50 x 0.63 |
F673 | 1 × Molex CTX64 Female terminal | 0.64 x 0.64 |
S3595 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 502307-3008 | MOLEX | CTX150 FEMALE TERMINAL | 1.50 | VERSILBERT |
| 98675-1064 | MOLEX | CTX280 FEMALE TERMINAL | 4.00-5.00 | VERSILBERT |
| 98675-1063 | MOLEX | CTX280 FEMALE TERMINAL | 2.50-3.00 | VERSILBERT |
| 98675-1061 | MOLEX | CTX280 FEMALE TERMINAL | 0.50-1.00 | VERSILBERT |
| 502307-3007 | MOLEX | CTX150 FEMALE TERMINAL | 0.75-1.00 | VERSILBERT |
| 502307-3006 | MOLEX | CTX150 FEMALE TERMINAL | 0.35-0.50 | VERSILBERT |
| 34970-5305 | MOLEX | CTX64 FEMALE UNSEALED TERMINAL | 0.50-0.85 | VERSILBERT |
| 34970-5303 | MOLEX | CTX64 FEMALE UNSEALED TERMINAL | 0.22-0.35 | VERSILBERT |
| 98675-1062 | MOLEX | CTX280 FEMALE TERMINAL | 1.50-2.50 | VERSILBERT |
| 35403696 | APTIV | UNKNOWN | VERSILBERT | |
| 7196-2325-06 | YAZAKI | UNKNOWN | VERSILBERT | |
| 7216-7065-06 | YAZAKI | CTX150 FEMALE TERMINAL | 0.35-0.50 | VERSILBERT |
| 63812-0900 | MOLEX INSERTION HELP SEAL PLUG 280 |
|---|---|
| 63813-9800 | MOLEX REMOVAL TOOL FOR CTX150 TERMINALS |
| 63824-1300 | MOLEX REMOVAL TOOL FOR CTX280 TERMINALS |
| 63824-4800 | MOLEX REMOVAL TOOL FOR CTX64 TERMINALS |
| 63824-5400 | MOLEX REMOVAL TOOL FOR CTX280 TERMINALS |
