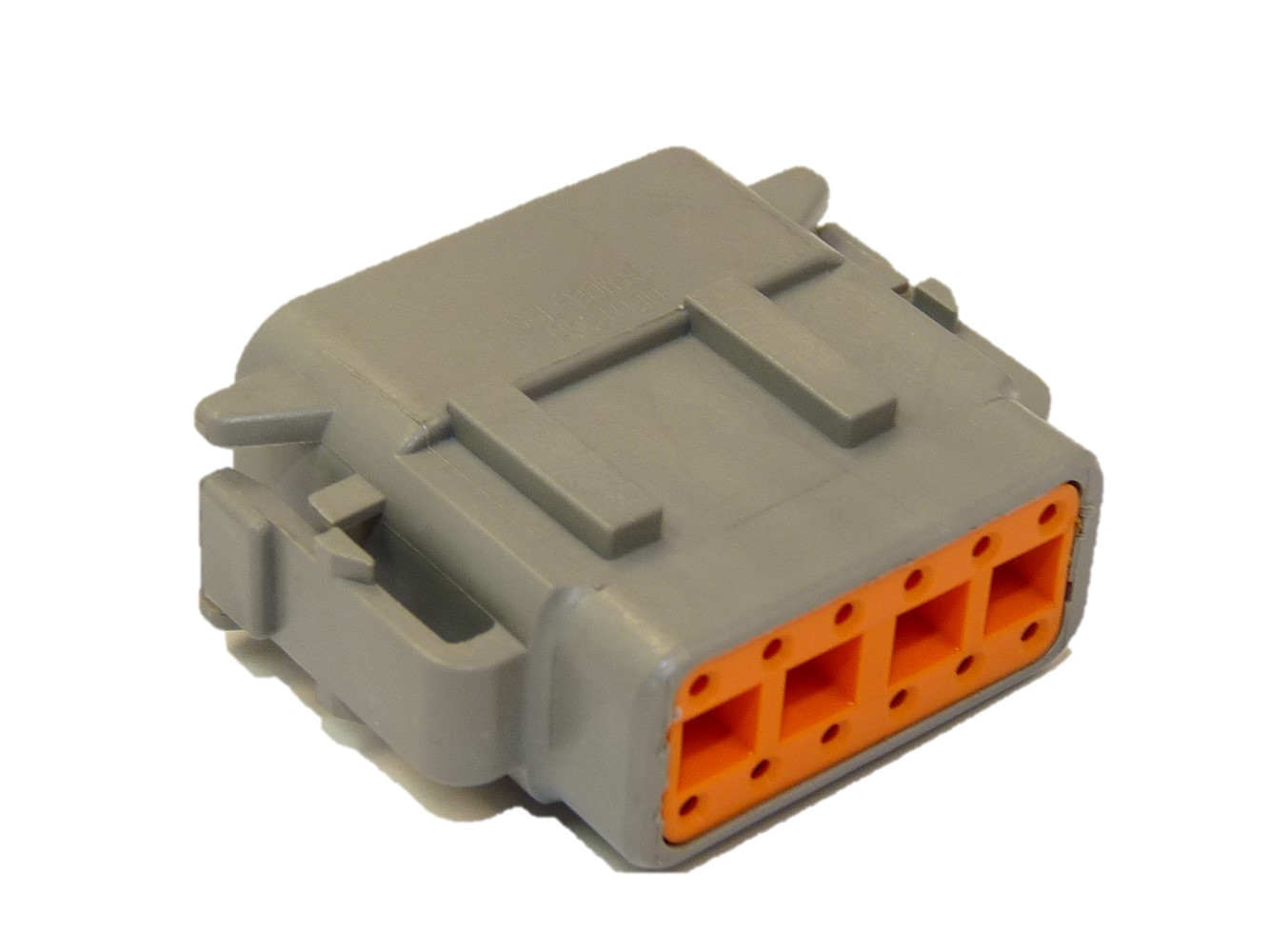

ATM SERIES FEMALE 2 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/65-1-20.jpg
Item 1 of 1
Hersteller:AMPHENOL
Hersteller-Nr.:ATM06-12SA-SC
Beschreibung:ATM SERIES FEMALE 2 WAY SEALED CONNECTOR
Poligkeit:12
Gedichtet:nein
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 65-1-20
Serie: ATM SERIES
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F450

12 × Deutsch DT/DTM-Series 1.0mm socket (size 20) / HES 1.0 female stampedØ 1.00

F460

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
1062-20-0222DEUTSCHDT/DTM-SERIES 1.2MM SOCKET (SIZE 20) / HES 1.0 FEMALE STAMPED TERMINAL0.35-1.50VERNICKELT
7116-4152-02YAZAKIYES CONNECTOR 2.8(110) FEMALE SEALED TERMINAL1.50-2.50VERZINNT
23-13210-026FREIGHTLINERDT/DTM-SERIES 1.2MM PIN CONTACT(SIZE 20)0.35-1.0VERGOLDET
23-13218-200FREIGHTLINERDUMMY PLUG
23-13210-004FREIGHTLINERDT/DTM-SERIES 1.2MM PIN CONTACT(SIZE 20)0.20-0.35
23-13210-000FREIGHTLINERDT/DTM-SERIES 1.2MM PIN CONTACT(SIZE 20)0.50-1.00
23-13210-020FREIGHTLINERDT/DTM-SERIES 1.2MM PIN CONTACT(SIZE 20)0.50-1.00VERGOLDET
1062-20-0122DEUTSCHDT/DTM-SERIES 1.2MM SOCKET (SIZE 20) / HES 1.0 FEMALE STAMPED0.35-1.50VERNICKELT
0462-201-20141DEUTSCHDT/DTM-SERIES 1.2MM SOCKET (SIZE 20) / HES 1.0 FEMALE0.50VERNICKELT
0462-005-20141DEUTSCHDT/DTM-SERIES 1.2MM SOCKET (SIZE 20) / HES 1.0 FEMALE0.75-1.30VERNICKELT
