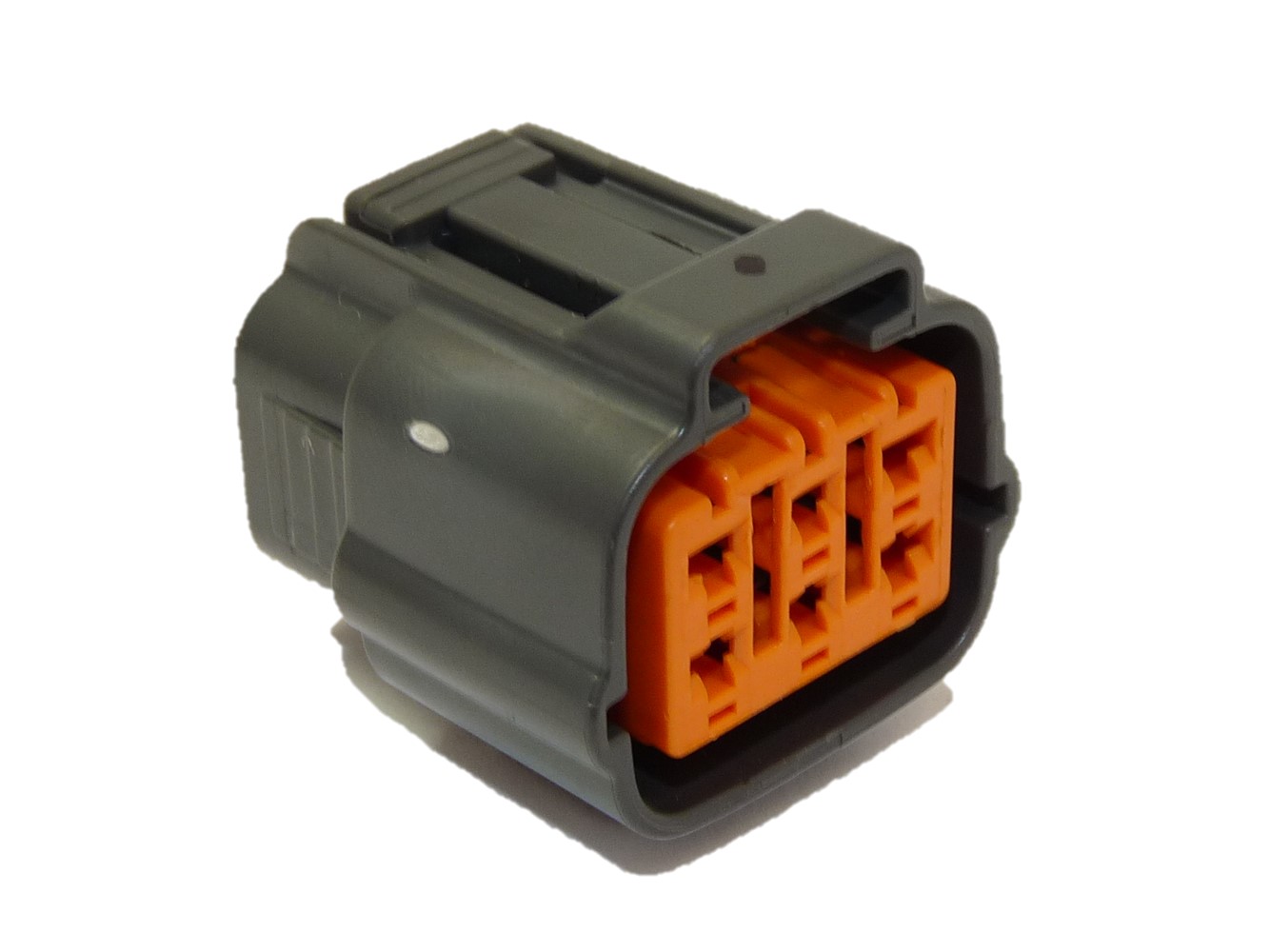

DL 2.3(090) SERIES FEMALE 6 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/25-2-23.jpg
Item 1 of 1
Hersteller:FORD
Hersteller-Nr.:C924
Beschreibung:DL 2.3(090) SERIES FEMALE 6 WAY SEALED CONNECTOR
Poligkeit:6
Gedichtet:nein
Farbe:DARK GREY
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 25-2-23
Serie: DL SEALED SERIES (090 CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F595

6 × Sumitomo HX/DL/SL/TL 2.3mm(090) female sealed terminal2.30 x 0.64

F425

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
8100-1459SUMITOMODL/SL/TL 2.3(090) FEMALE SEALED TERMINAL1.25-2.00VERGOLDET
8100-1458SUMITOMODL/SL/TL 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
8100-1429SUMITOMOHX/DL/SL/TL 2.3(090) FEMALE SEALED TERMINAL0.75-0.85VERZINNT
8100-1428SUMITOMODL/SL/TL 2.3(090) FEMALE SEALED TERMINAL1.25-2.00VERZINNT
8100-1427SUMITOMODL/SL/TL 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERZINNT
7165-0193SUMITOMOSL/TL/HX/DL SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
7161-9787SUMITOMOHX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
6810-1584SUMITOMOSL/DL 2.3(090) SERIES BODY FASTENING CLAMP
8100-1460SUMITOMODL/SL/TL 2.3(090) FEMALE SEALED TERMINAL0.75-0.85VERGOLDET
98AG-14474-YBAFORDHX/DL/SL/TL 2.3(090) FEMALE SEALED TERMINAL0.75-0.85-1.25VERZINNT
3202530V7LEARHX/DL/SL/TL 2.3(090) FEMALE SEALED TERMINAL0.75-0.85-1.25VERZINNT
MT096-57880FURUKAWA/KUMHX/DL/SL/TL 2.3(090) FEMALE SEALED TERMINAL0.75-0.85-1.25VERZINNT
8240-4862SUMITOMOHX SEALED SERIES (090 CONNECTOR) FEMALE TERMINAL0.30-0.50VERZINNT
7165-0118SUMITOMOHX/DL/HW 2.3(090) SERIES SINGLE WIRE SEAL1.50-2.00
7165-0119SUMITOMOHX/DL/HW 2.3(090) SERIES SINGLE WIRE SEAL
7116-1972-02YAZAKIHX/DL/SL/TL 2.3(090) FEMALE SEALED TERMINAL1.25-2.00VERZINNT
