Item 1 of 1
| Hersteller: | JAGUAR |
|---|---|
| Hersteller-Nr.: | DGC3835 |

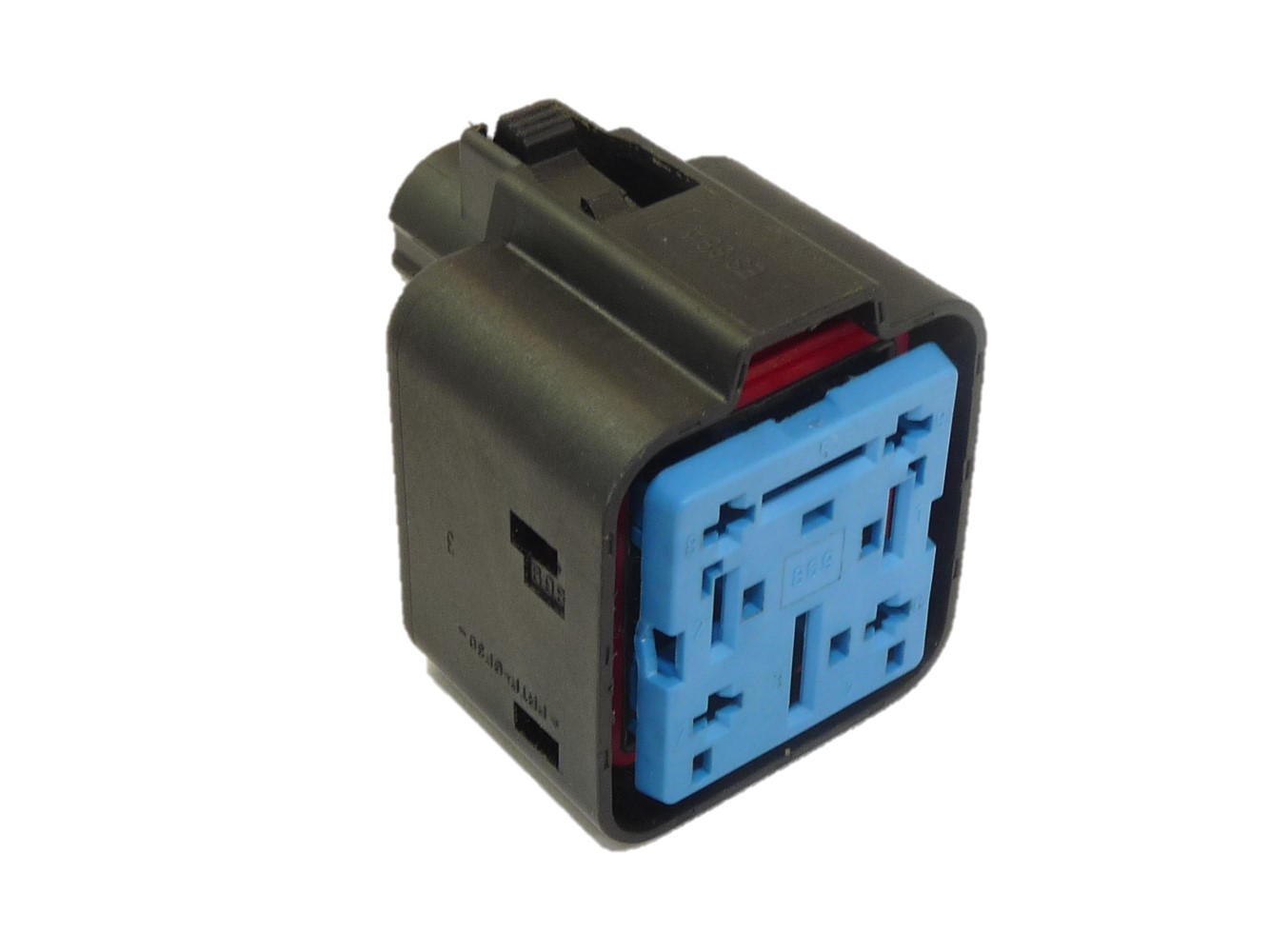

| Beschreibung: | DCS 2.8/6.3/9.5 FEMALE 8 WAY RELAY SOCKET SEALED CONNECTOR |
| Poligkeit: | 8 |
| Gedichtet: | nein |
| Gehäusesicherung/Sekundärverriegelung: | ja |
| TGS Gehäuse-ID: | 1-2-08 |
|---|---|
| Serie: | DCS |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F470 | 2 × FCI DCS 9.5mm female terminal | 9.50 x 1.20 |
G114 | 2 × Tyco/AMP Junior Power Timer female terminal | 2.80 x 0.80 |
F470 | 4 × FCI DCS 6.3mm female terminal | 6.30 x 0.80 |
F425 | 1 × secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 60040041 | APTIV | DCS 6.3MM FEMALE TERMINAL | 1.00-2.50 | VERZINNT |
| 10748126 | APTIV | DCS 6.3MM FEMALE TERMINAL | 2.50-4.00 | VERZINNT |
| 60070271 | APTIV | DCS 9.5MM FEMALE TERMINAL | 6.00-10.00 | VERZINNT |
| 60070261 | APTIV | DCS 9.5MM FEMALE TERMINAL | 4.00-6.00 | VERZINNT |
| 60070251 | APTIV | DCS 9.5MM FEMALE TERMINAL | 2.50-4.00 | VERZINNT |
| 60040051 | APTIV | DCS 6.3MM FEMALE TERMINAL | 2.50-4.00 | VERZINNT |
| 60040031 | APTIV | DCS 6.3MM FEMALE TERMINAL | 0.50-1.00 | VERZINNT |
| 60010531 | APTIV | DCS-1 FEMALE 2.8 MM POWER TERMINAL | 0.50-1.00 | VERZINNT |
| 60010511 | APTIV | DCS-1 FEMALE 2.8 MM POWER TERMINAL | 0.22-0.35 | VERZINNT |
| 15395924 | APTIV | DCS-1 FEMALE 2.8 MM POWER TERMINAL | 0.22-0.35 | VERZINNT |
| 15340695 | APTIV | DCS 6.3MM FEMALE TERMINAL | 1.00-2.50 | VERZINNT |
| 10763018 | APTIV | DCS 9.5MM FEMALE TERMINAL | 6.00-10.00 | VERZINNT |
| 15327734 | APTIV | DCS 9.5MM FEMALE TERMINAL | 4.00-6.00 | VERZINNT |
| 12198447 | APTIV | DCS-1 FEMALE 2.8 MM POWER TERMINAL | 0.50-1.00 | VERZINNT |
| 12186637 | APTIV | DCS 6.3MM FEMALE TERMINAL | 0.50-1.00 | VERZINNT |
| 10775312 | APTIV | DCS 9.5MM FEMALE TERMINAL | 2.50-4.00 | VERZINNT |
| 33511768 | APTIV | DCS-1 FEMALE 2.8 MM POWER TERMINAL | 1.00-1.50 | VERZINNT |
| 60040541 | APTIV | DCS-1 FEMALE 2.8 MM POWER TERMINAL | 1.00-1.50 | VERZINNT |
| 60070151 | APTIV | DCS 9.5MM FEMALE TERMINAL | 2.50-4.00 | VERZINNT |
| 60070161 | APTIV | DCS 9.5MM FEMALE TERMINAL | 4.00-6.00 | VERZINNT |
| 962895-1 | TE CONNECTIVITY | STANDARD-POWER-TIMER FEMALE TERMINAL - OBSOLETE - SEE 963892 | 0.50-1.00 | VERZINNT |
| 2131304270 | SY (SIEMENS-YAZAKI) | UNKNOWN | ||
| 3202532V5 | LEAR | GT 150 FEMALE TERMINAL | 0.35-0.50 | VERZINNT |
| E09878600 | LEAR | DCS 9.5MM FEMALE TERMINAL | 1.50-2.50 | VERZINNT |
| 3202506V7 | LEAR | DCS 6.3MM FEMALE TERMINAL | 0.50-1.00 | VERZINNT |
| 499045700 | LEONI | EINZELADERDICHTUNG/SINGLE WIRE SEAL 12.70 | 2.50-4.00 | |
| 414355631 | LEONI | DCS 9.5MM FEMALE TERMINAL | 4.00-6.00 | VERZINNT |
| 1/12078/54 | FIAT | DCS 6.3MM FEMALE TERMINAL | 0.50-1.00 | VERZINNT |
| 1/12140/54 | FIAT | DCS 9.5MM FEMALE TERMINAL | 1.50-2.50 | VERZINNT |
| 13800422 | APTIV | DCS 9.5MM FEMALE TERMINAL | 1.50-2.50 | VERZINNT |
| 024995 | WOCO | EINZELADERDICHTUNG/SINGLE WIRE SEAL 12.70 | 2.50-4.00 | |
| 7116-8030-02 | YAZAKI | DCS-1 FEMALE 2.8 MM POWER TERMINAL | 0.50-1.00 | VERZINNT |
