Item 1 of 1
| Hersteller: | LEAR/GHW |
|---|---|
| Hersteller-Nr.: | E08083000 |
| Beschreibung: | MCON 1.2/MCP 2.8/4.8 FEMALE 32 WAY UNSEALED CONNECTOR |
| Poligkeit: | 32 |
| Gedichtet: | ja |
| Farbe: | BLACK |
| Gehäusesicherung/Sekundärverriegelung: | nein |

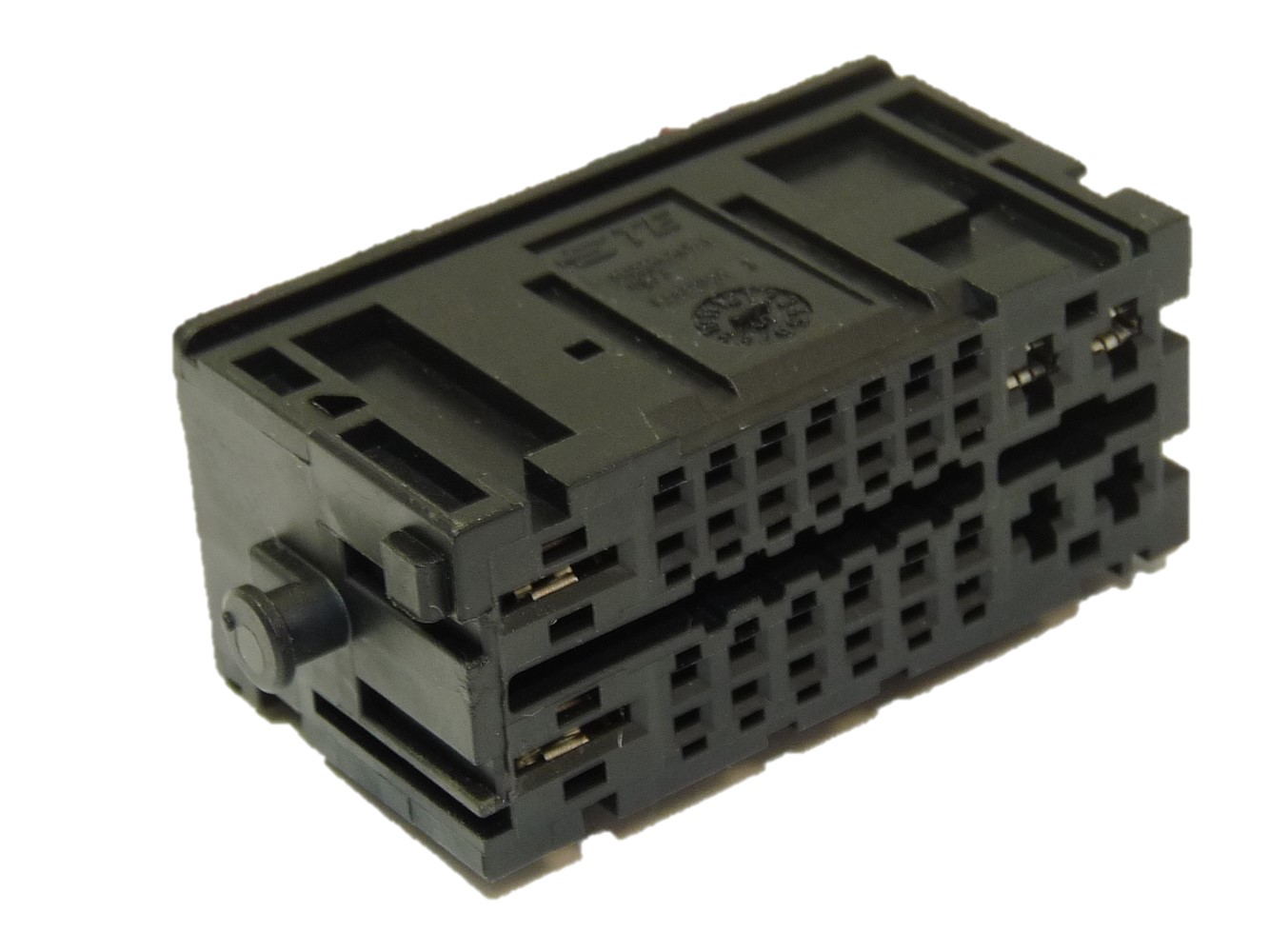

| TGS Gehäuse-ID: | 55-1-25 |
|---|---|
| Gegengehäuse: | 2236046 |
| Serie: | MCON |
| Steckercode: | A |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
G215 | 2 × Tyco/AMP MCP 2.8 female terminal | 2.80 x 0.80 |
S305 | 4 × Tyco/AMP MCON 2.8 female terminal | 2.80 x 0.80 |
F597 | 28 × Tyco/AMP Micro Power Quadlock 0.63 (MQS 0.63) female terminal | 0.63 x 0.63 |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| 1241408-1 | TE CONNECTIVITY | MCP 4.8/6.3 FEMALE TERMINAL | 4.00-6.00 | VERSILBERT |
| 7-1452659-1 | TE CONNECTIVITY | MCON 1.2 LL FEMALE UNSEALED TERMINAL | 1.00-1.50 | VERZINNT |
| 7-1452656-1 | TE CONNECTIVITY | MCON 1.2 LL FEMALE UNSEALED TERMINAL | 0.50-0.75 | VERZINNT |
| 7-1452653-1 | TE CONNECTIVITY | MCON 1.2 LL FEMALE UNSEALED TERMINAL | 0.25-0.35 | VERZINNT |
| 1719840-1 | TE CONNECTIVITY | MCON 2.8 FEMALE TERMINAL | 1.25-2.50 | VERSILBERT |
| 1719838-1 | TE CONNECTIVITY | MCON 2.8 FEMALE TERMINAL | 0.75-1.00 | VERSILBERT |
| 1563719-1 | TE CONNECTIVITY | MCON 2.8 FEMALE TERMINAL | 0.50 | VERSILBERT |
| 1241406-1 | TE CONNECTIVITY | MCP 4.8/6.3 FEMALE TERMINAL | 2.50-4.00 | VERZINNT |
| 1241404-1 | TE CONNECTIVITY | MCP 4.8/6.3 FEMALE TERMINAL | 1.50-2.50 | VERZINNT |
| 1241402-1 | TE CONNECTIVITY | MCP 4.8/6.3 FEMALE TERMINAL | 0.50-1.00 | VERZINNT |
| 1241400-1 | TE CONNECTIVITY | MCP 4.8/6.3 FEMALE TERMINAL | 0.20-0.50 | VERZINNT |
| 1718475-1 | TE CONNECTIVITY | MCON 2.8 FEMALE TERMINAL | 3.00-4.00 | VERSILBERT |
| 320264716 | LEAR | YES CONNECTOR 1.5(060) FEMALE UNSEALED TERMINAL | 0.22-0.50 | VERZINNT |
| E07899500 | LEAR | MCON 1.2 FEMALE UNSEALED TERMINAL | 0.25-0.35 | VERZINNT |
| E01080600 | LEAR | |||
| E03284700 | LEAR | MCON 1.2 FEMALE UNSEALED TERMINAL | 0.50-0.75 | VERZINNT |
| E03428900 | LEAR | MCON 2.8 FEMALE TERMINAL | 1.25-2.50 | VERSILBERT |
