| Hersteller: | APTIV |
|---|---|
| Hersteller-Nr.: | F765000 |
| Beschreibung: | GTS 0.64/1.5 FEMALE 48 WAY CMC SEALED CONNECTOR RIGHT LEVER |
| Poligkeit: | 48 |
| Gedichtet: | nein |
| Farbe: | BROWN |
| Gehäusesicherung/Sekundärverriegelung: | ja |

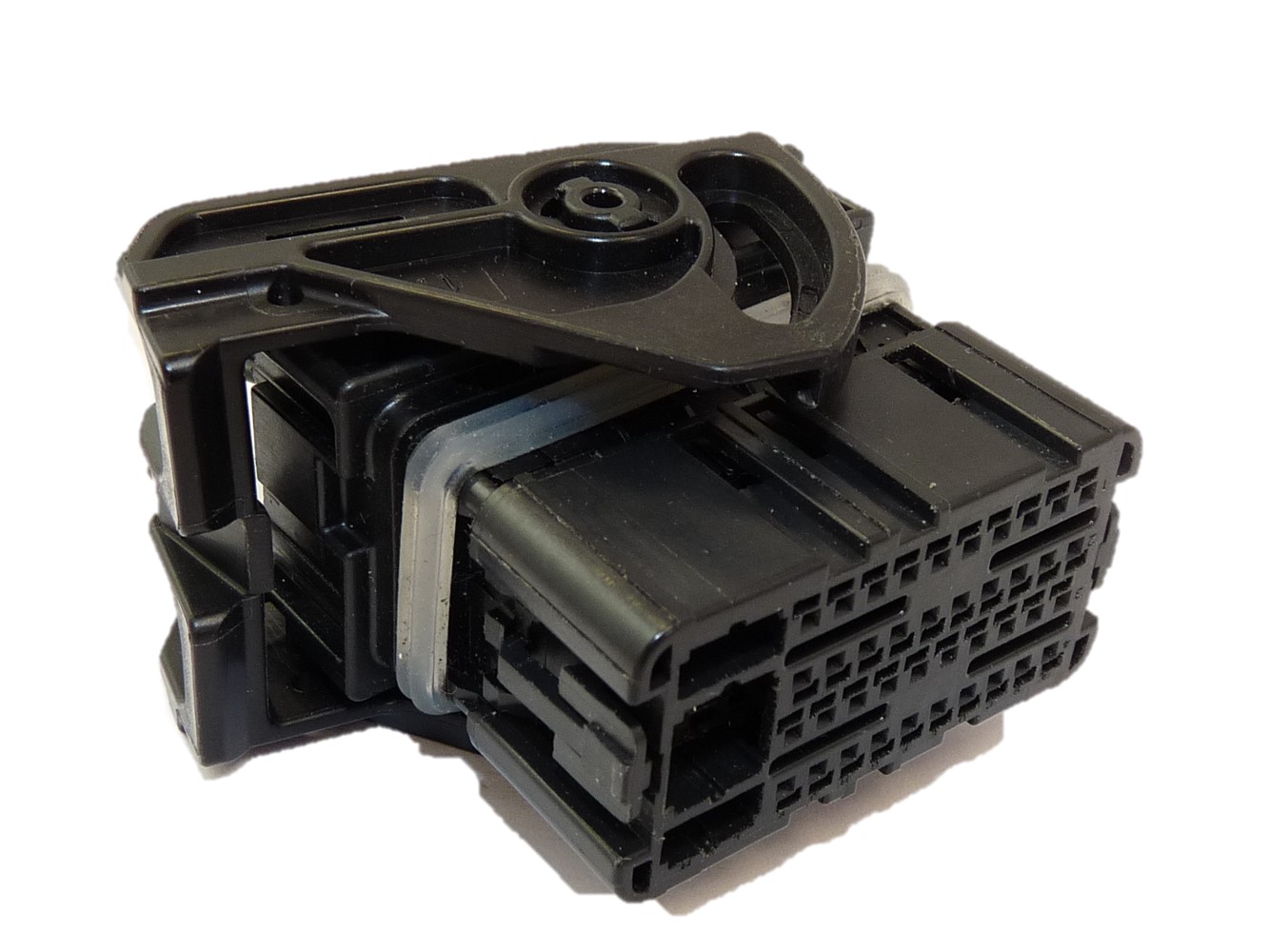

| TGS Gehäuse-ID: | 34-2-13 |
|---|---|
| Serie: | CMC |
| Zeichnungsnummer: | PCC0420007 |
| Entriegelungswerkzeuge: | Bestückte Kontakte: | Flachsteckermass: |
F695 | 8 × FCI GTS-2 female terminal 1.5 | 1.50 x 0.80 |
S2040 | 1 × Cover | |
F668 | 40 × FCI Micro-Sicma 0.64 / GTS 0.64 female terminal | 0.64 x 0.64 |
S3298 | 1 × secondary lock 3 | |
S2010 | 1 × Verriegler Sekundärsicherung; closing tool secondary lock |
| Teile-Nummer | Hersteller | Beschreibung | Kabelquadrat | Oberfläche |
|---|---|---|---|---|
| PPI0001486 | APTIV | BLINDSTOPFEN-DUMMY PLUG 1.5MM | ||
| PPI0000489 | APTIV | MICRO-SICMA 0.635 / GTS 0.64 FEMALE TERMINAL | 0.50 | VERZINNT |
| PPI0000591 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 1.00-1.30 | VERZINNT |
| PPI0001045 | APTIV | BLINDSTOPFEN-DUMMY PLUG 0.635MM | ||
| PPI0001482 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 0.50-0.75 | VERZINNT |
| PPI0001483 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 0.85-1.00 | VERZINNT |
| PPI0001485 | APTIV | BLINDSTOPFEN-DUMMY PLUG 0.635MM | ||
| F965000 | APTIV | GTS 0.64/1.5 FEMALE 48 WAY CMC CONNECTOR COVER | ||
| PPI0001538 | APTIV | GTS 0.64/1.5 FEMALE 48 WAY CMC CONNECTOR COVER | ||
| PPI0001619 | APTIV | MICRO-SICMA 0.635 / GTS 0.64 FEMALE TERMINAL | 0.35 | VERZINNT |
| PPI0001484 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 1.25-2.00 | VERZINNT |
| 13749482 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 1.25-2.00 | VERZINNT |
| 13648598 | APTIV | MICRO-SICMA 0.635 / GTS 0.64 FEMALE TERMINAL | 0.50 | VERZINNT |
| PPI0000453 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 1.25-2.00 | VERZINNT |
| 13741954 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 0.85-1.00 | VERZINNT |
| PPI0000452 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 0.50-0.75 | VERZINNT |
| 13955989 | APTIV | MICRO-SICMA 0.635 / GTS 0.64 FEMALE TERMINAL | 0.22-0.35 | VERZINNT |
| 7116-4415-02 | YAZAKI | RH CONNECTORS/HS CONNECTORS FEMALE SEALED TERMINAL | 0.30 | VERZINNT |
| 7116-4416-02 | YAZAKI | RH CONNECTORS/HS CONNECTORS FEMALE SEALED TERMINAL | 0.35-0.50 | VERZINNT |
| 7116-4487-08 | YAZAKI | RH CONNECTORS/HS CONNECTORS TERMINAL | 0.22-0.35 | VERGOLDET |
| 7116-4488-08 | YAZAKI | RH CONNECTORS/HS CONNECTORS SEALED TERMINAL | 0.50 | VERGOLDET |
| 7134-8898-30 | YAZAKI | COVER 48 WAY CMC CONNECTOR TYPE I | ||
| 13712871 | APTIV | GTS-2 FEMALE TERMINAL 1.5 | 0.50-0.75 | VERZINNT |
| 13956254 | APTIV | GTS 0.64/1.5 FEMALE 48 WAY CMC CONNECTOR COVER |
| 10915564 | 0.64MM TERMINAL EXTRACTION TOOL |
|---|---|
| 10915566 | COVER REMOVAL TOOL |
| 33105886 | 1.5 MM TERMINAL EXTRACTION TOOL |
| 33105887 | 1.5 DUMMY PLUG INSERTION TOOL |
| 33513040 | TPA REMOVAL TOOL |
| 33514306 | CRIMPER 1.5 GTS |
| 33514360 | CRIMPER 0.64 GTS |
| C392000 | APTIV COVER REMOVAL TOOL |
| PPI0001571 | APTIV DUMMY PLUG INSERTION TOOL 0.64 MM GTS-1 |
| PPI0001572 | APTIV DUMMY PLUG INSERTION TOOL 1.5 MM GTS-2 |
| PPI0001590 | APTIV TERMINAL EXTRACTION TOOL 0.64 MM GTS-1 |
| PPI0001592 | APTIV TERMINAL EXTRACTION TOOL 1.5 MM GTS-2 |
