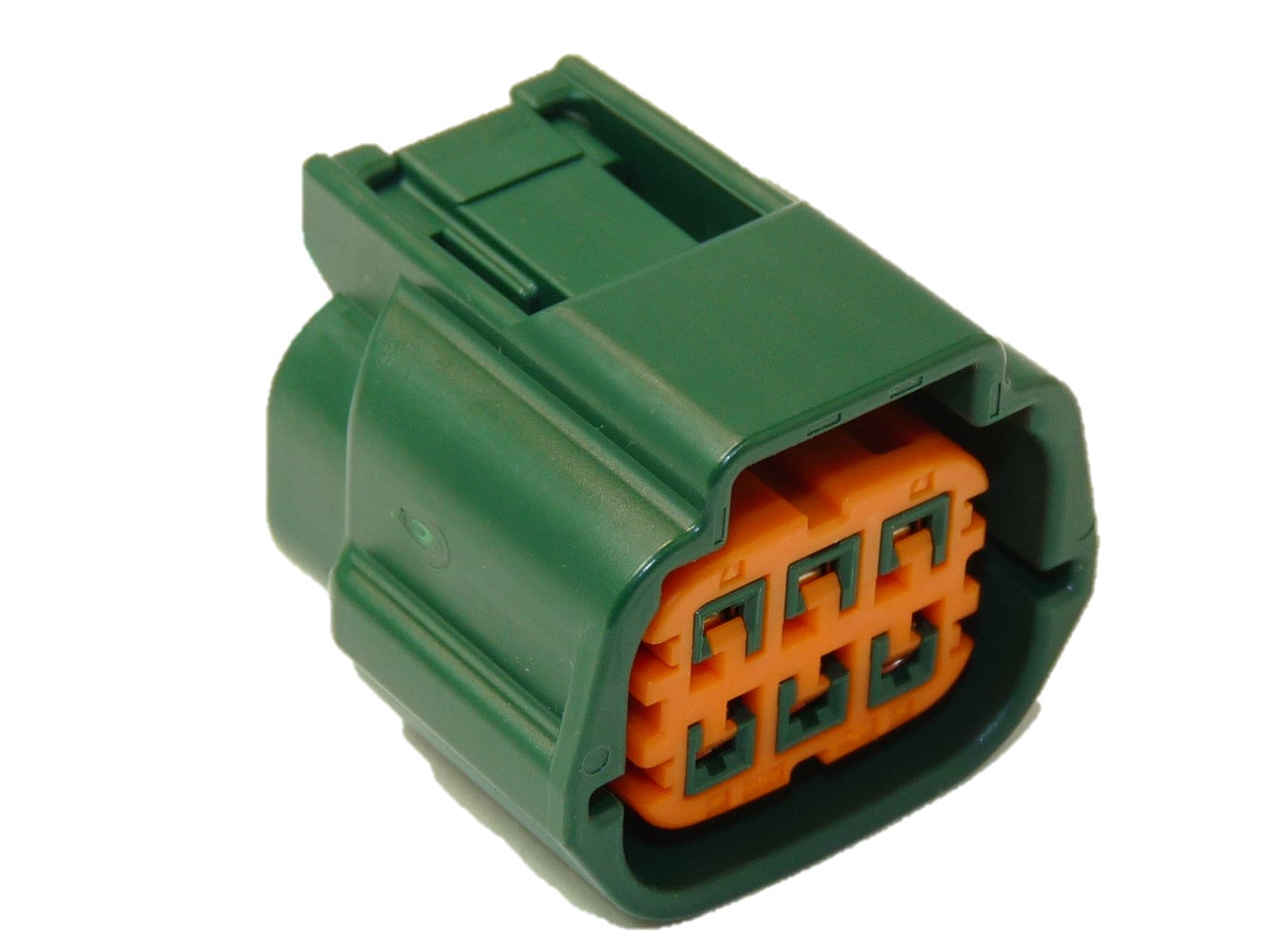

RS TYPE FEMALE 6 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/60-2-23.jpg
Item 1 of 1
Hersteller:NISSAN
Hersteller-Nr.:RS06FG
Beschreibung:RS TYPE FEMALE 6 WAY SEALED CONNECTOR
Poligkeit:6
Gedichtet:nein
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 60-2-23
Serie: 91 SEALED SERIES (090 STANDARD RS CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F450

6 × Sumitomo RS series 2.3mm(090) female terminal2.30 x 0.64

H925

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
8240-0263SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERZINNT
8240-0266SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
8240-0268SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL2.00VERGOLDET
8240-0267SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.85-1.25VERGOLDET
8240-0264SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.85-1.25VERZINNT
7165-1131SUMITOMODUMMY PLUG RS 2.3(090) SERIES 5.45MM2.00
6918-1601SUMITOMOTPA RS 2.3(090) SERIES SEALED 6 WAY CONNECTORS
8240-0265SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL2.00VERZINNT
J-48817-206BOSCHRS SERIES 2.3(090) FEMALE SEALED TERMINAL
