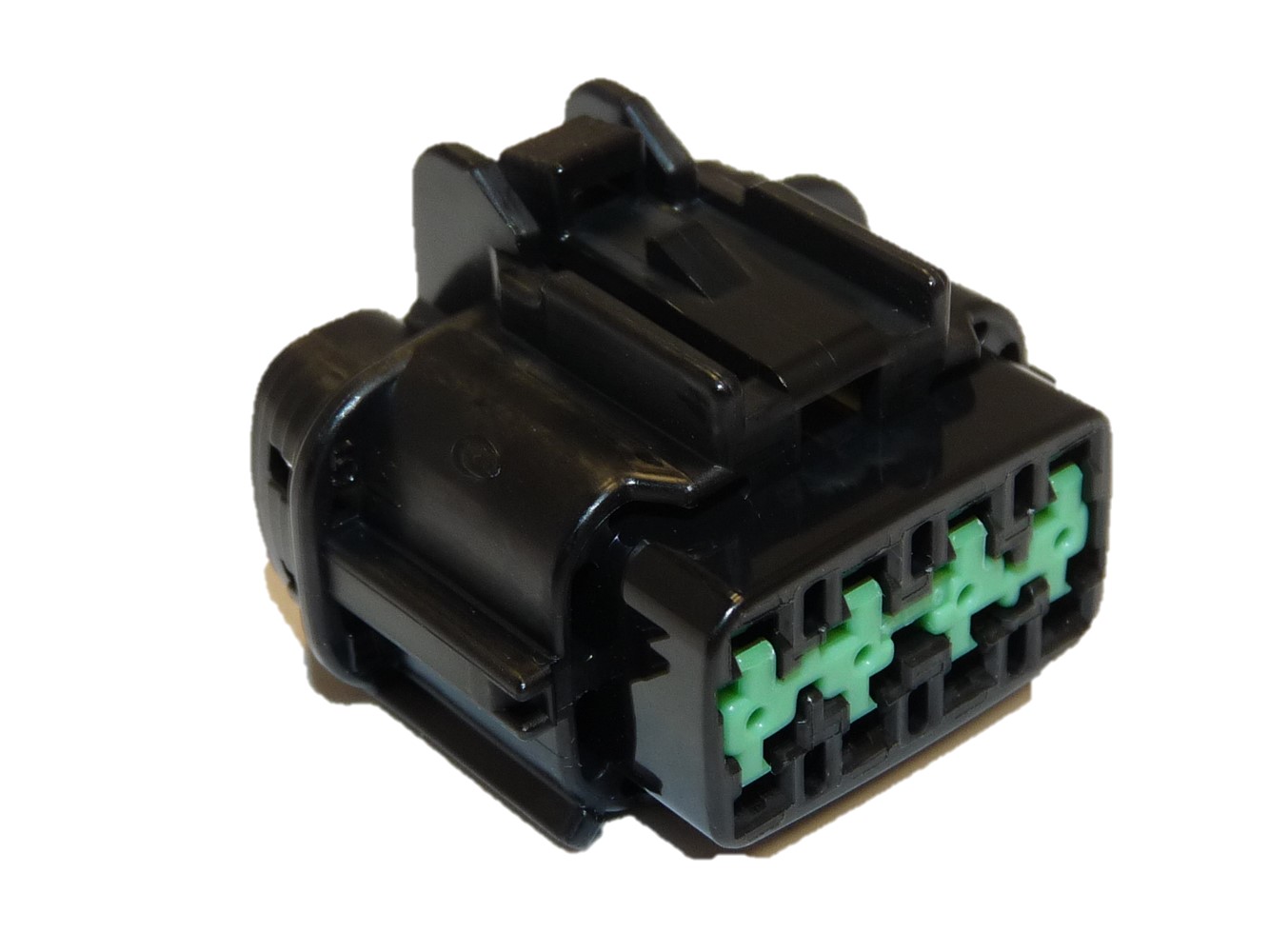

RS TYPE FEMALE 8 WAY SEALED CONNECTOR

  1. https://www.t-g-s.de/images/housings/58-2-20.jpg
Item 1 of 1
Hersteller:NISSAN
Hersteller-Nr.:RS08FB
Beschreibung:RS TYPE FEMALE 8 WAY SEALED CONNECTOR
Poligkeit:8
Gedichtet:nein
Farbe:BLACK
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 58-2-20
Serie: 91 SEALED SERIES (090 STANDARD RS CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F450

8 × Sumitomo RS series 2.3mm(090) female terminal2.30 x 0.64

F460

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
8100-4174SUMITOMOUNKNOWN
8240-0263SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERZINNT
8240-0265SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL2.00VERZINNT
8240-0268SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL2.00VERGOLDET
PZ001-15021FURUKAWA/KUMRS SERIES 2.3(090) SEALED PIN
MT095-76260FURUKAWA/KUMRS SERIES 2.3(090) FEMALE SEALED TERMINAL0.85-2.00VERGOLDET
MT095-76250FURUKAWA/KUMRS SERIES 2.3(090) FEMALE SEALED TERMINAL0.85-2.00VERZINNT
MT095-76060FURUKAWA/KUMRS SERIES 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
MT095-76050FURUKAWA/KUMRS SERIES 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERZINNT
8240-0266SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
6918-1780SUMITOMOTPA RS 2.3(090) SERIES SEALED 8 WAY CONNECTORS
8240-0264SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.85-1.25VERZINNT
7165-1131SUMITOMODUMMY PLUG RS 2.3(090) SERIES 5.45MM2.00
8240-0267SUMITOMORS SERIES 2.3(090) FEMALE SEALED TERMINAL0.85-1.25VERGOLDET
J-48817-206BOSCHRS SERIES 2.3(090) FEMALE SEALED TERMINAL
