TS 2.3(090) SERIES FEMALE 5 WAY SEALED CONNECTOR

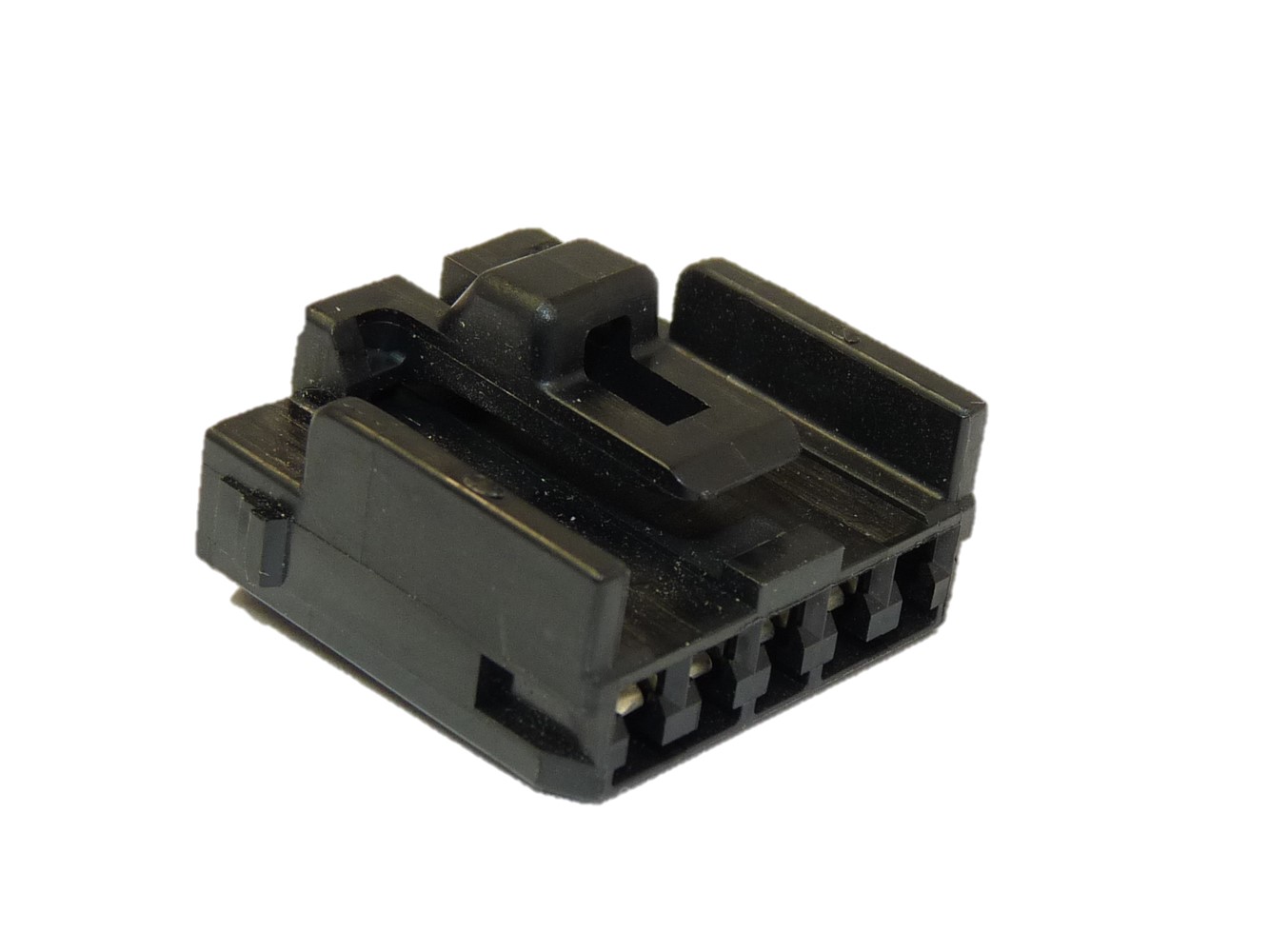

  1. https://www.t-g-s.de/images/housings/26-2-21.jpg
Item 1 of 1
Hersteller:NISSAN
Hersteller-Nr.:TS05FW
Beschreibung:TS 2.3(090) SERIES FEMALE 5 WAY SEALED CONNECTOR
Poligkeit:5
Gedichtet:ja
Farbe:NATURAL
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 26-2-21
Gegengehäuse: 1300-3783
Serie: TS SEALED SERIES (090 CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F417

5 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed2.30 x 0.64

F440

1 × secondary lock
Hersteller-Nr.Beschreibung
1300-37832.3(090) SERIES II MALE 5 WAY UNSEALED CONNECTOR
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
8240-4892SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.50-1.25VERZINNT
8100-0462SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERZINNT
8100-0817SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERGOLDET
8100-1344SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
8100-1346SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.30-0.50VERGOLDET
8100-1347SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.50-1.25VERGOLDET
8240-4882SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.30-0.50VERZINNT
8240-4942SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL2.00VERZINNT
8100-0460SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERZINNT
8100-0461SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERZINNT
8240-0029SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.22-0.35VERZINNT
7161-9787SUMITOMOHX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
7165-0842SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.35-0.50
7160-9465SUMITOMODUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
7165-0076SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL
7165-0342SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7165-0343SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
7165-0349SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7165-0351SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
8100-0594SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERGOLDET
7165-0395SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
7165-0344SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
7160-8234SUMITOMOTS/SL/MT/HM 2.3(090) SERIES SINGLE WIRE SEAL0.50-1.25
1800-2876SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL
7116-4021YAZAKI2.3II(090II) FEMALE UNSEALED TERMINAL0.50-1.25VERZINNT
7116-4022YAZAKI2.3II(090II) FEMALE UNSEALED TERMINAL2.00VERZINNT
7116-5035-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
7116-5041-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
7116-5043-02YAZAKI2.3II(090II) FEMALE UNSEALED TERMINALVERZINNT
7116-7163-02YAZAKI2.3II(090II) FEMALE UNSEALED TERMINALVERZINNT
7116-7165-02YAZAKI2.3II(090II) FEMALE UNSEALED TERMINALVERZINNT
7116-4020YAZAKI2.3II(090II) FEMALE UNSEALED TERMINAL0.30-0.50VERZINNT
7116-5042-02YAZAKI2.3II(090II) FEMALE UNSEALED TERMINALVERZINNT
82998-52050TOYOTA2.3 II FEMALE TERMINAL WITH WIRE
82998-52070TOYOTA2.3(090) II FEMALE UNSEALED TERMINAL WITH 160MM WIREVERGOLDET
82998-74050TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH WIRE
90980-09627TOYOTABLIND PLUG
82998-12A30TOYOTA2.3 II FEMALE TERMINAL WITH WIRE
82998-12360TOYOTA2.3(090) II FEMALE UNSEALED TERMINALVERGOLDET
82998-12340TOYOTA2.3(090) II FEMALE UNSEALED TERMINAL WITH 160MM WIREVERZINNT
82999-52010TOYOTATERMINAL
82998-24380TOYOTA2.3(090) II FEMALE SEALED TERMINAL WITH 160MM WIREVERGOLDET
82998-24220TOYOTA2.3 II IDC FEMALE UNSEALED TERMINAL WITH 160MM WIRE
82999-12020TOYOTAWIRE SEAL1.25
82999-12030TOYOTAWIRE SEAL1.25
