2.3(090) SERIES II FEMALE 2 WAY SEALED CONNECTOR

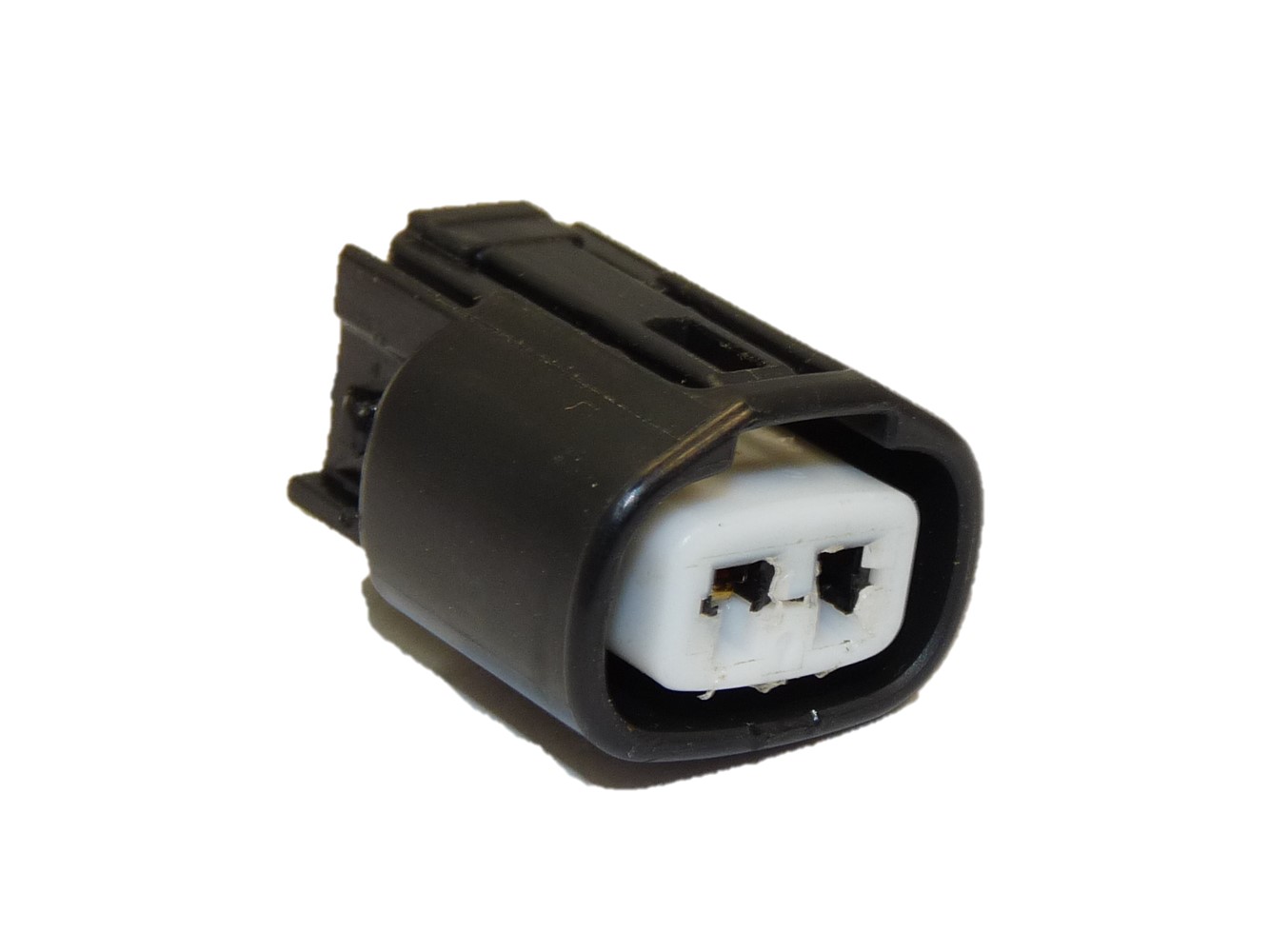

  1. https://www.t-g-s.de/images/housings/20-2-23.jpg
Item 1 of 1
Hersteller:NISSAN
Hersteller-Nr.:TSQ02FB
Beschreibung:2.3(090) SERIES II FEMALE 2 WAY SEALED CONNECTOR
Poligkeit:2
Gedichtet:ja
Farbe:BLACK
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 20-2-23
Serie: 2.3 (090) SERIES II
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F417

2 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed2.30 x 0.64

F460

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
8100-1346SUMITOMOTS/DL/SL 2.3(090) SERIES FEMALE UNSEALED TERMINAL0.30-0.50VERGOLDET
8100-1235SUMITOMOPOWER BRIDGE 3 WAYS
8100-1344SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
7116-5046-02YAZAKI2.3II(090II) FEMALE TERMINALVERZINNT
7116-5096-02YAZAKITS 0.64(025) SERIES FEMALE UNSEALED TERMINALVERZINNT
82999-12020TOYOTAWIRE SEAL1.25
82999-12030TOYOTAWIRE SEAL1.25
82998-12790TOYOTA2.3(090) FEMALE SEALED TERMINAL WITH 500MM WIREVERZINNT
82998-12780TOYOTA2.3(090) FEMALE SEALED TERMINAL WITH 500MM WIREVERGOLDET
90980-09229TOYOTA2.3 SEALED CONNECTOR PLUGGING BLIND PLUG1.25
82998-24420TOYOTA2.3 FEMALE TERMINAL WITH 500MM WIREVERZINNT
