TS SERIES 2.3(090) FEMALE 2 WAY SEALED CONNECTOR

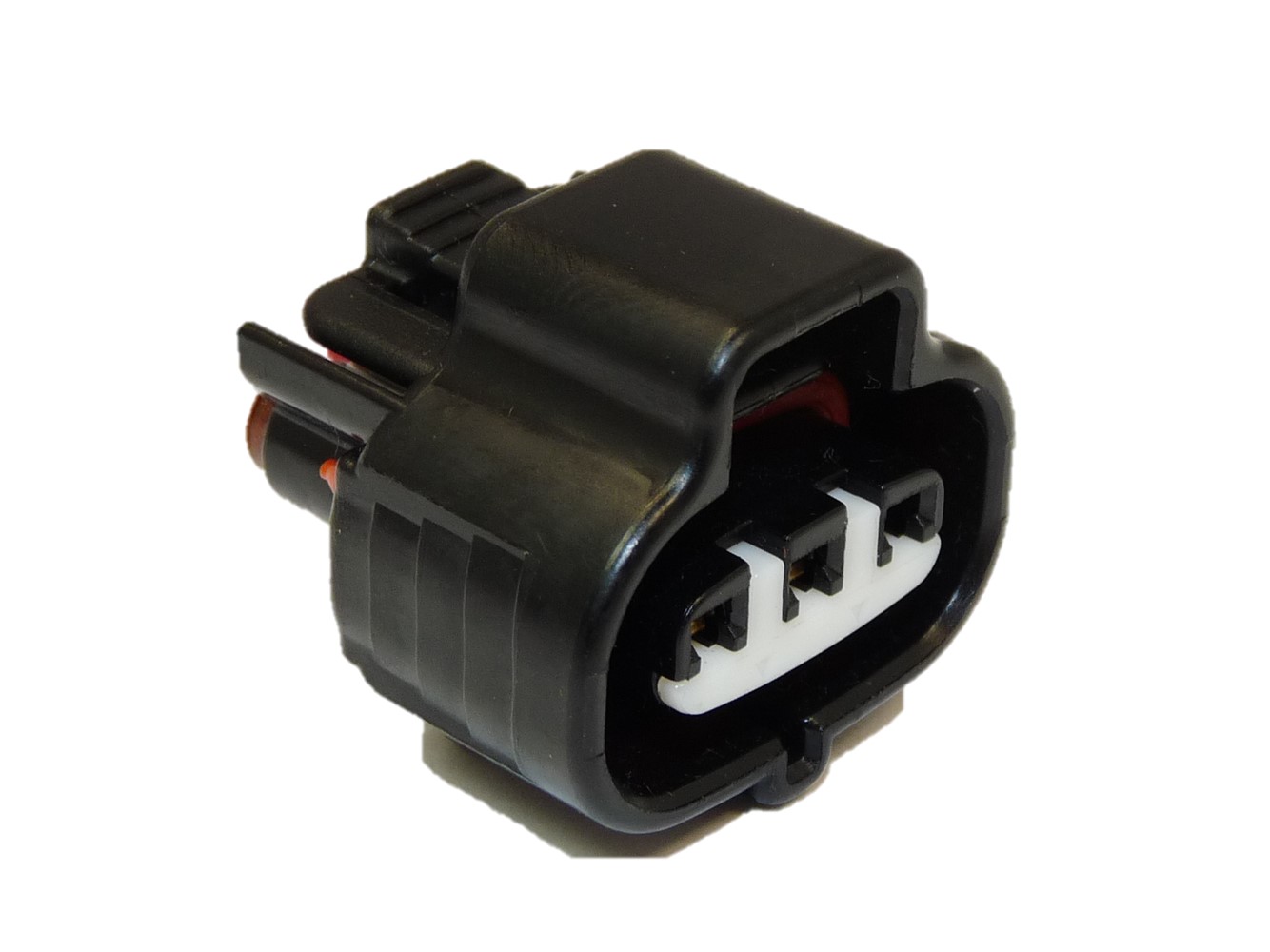

  1. https://www.t-g-s.de/images/housings/26-1-33.jpg
Item 1 of 1
Hersteller:SUMITOMO
Hersteller-Nr.:WP090VCM3FAY-GR
Beschreibung:TS SERIES 2.3(090) FEMALE 2 WAY SEALED CONNECTOR
Poligkeit:3
Gedichtet:nein
Farbe:GREY
Gehäuse­sicherung/Sekundär­verriegelung:ja
TGS Gehäuse-ID: 26-1-33
Serie: TS SEALED SERIES (090 CONNECTOR)
Entriegelungswerkzeuge: Bestückte Kontakte: Flachsteckermass:

F450

3 × Sumitomo TS/DL/SL series 2.3mm(090) female terminal unsealed2.30 x 0.64

F425

1 × secondary lock
Teile-NummerHerstellerBeschreibungKabelquadratOberfläche
7165-0395SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
8100-0817SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERGOLDET
7160-9465SUMITOMODUMMY PLUG TS/SL/MT/HM 2.3(090) SERIES
8100-0594SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERGOLDET
8100-1344SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
8100-0462SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL2.00VERZINNT
8100-0461SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.50-1.25VERZINNT
8100-0460SUMITOMOTS 2.3(090) SERIES FEMALE SEALED TERMINAL0.30-0.50VERZINNT
7165-0842SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.35-0.50
7165-0349SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7165-0344SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
7165-0343SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.50-1.25
7165-0342SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL0.30-1.25
7161-9787SUMITOMOHX/TS/SL/DL/MT/HW SERIES 1.5(060)/2.3(090) SERIES DUMMY PLUG
7160-8234SUMITOMOTS/SL/MT/HM 2.3(090) SERIES SINGLE WIRE SEAL0.50-1.25
7165-0076SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL
7165-0351SUMITOMOTS SEALED SERIES 2.3MM(090) SINGLE WIRE SEAL1.25-2.00
7116-4028-08YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
7116-4025-08YAZAKI2.3II(090II) FEMALE SEALED TERMINAL0.30-0.50VERGOLDET
